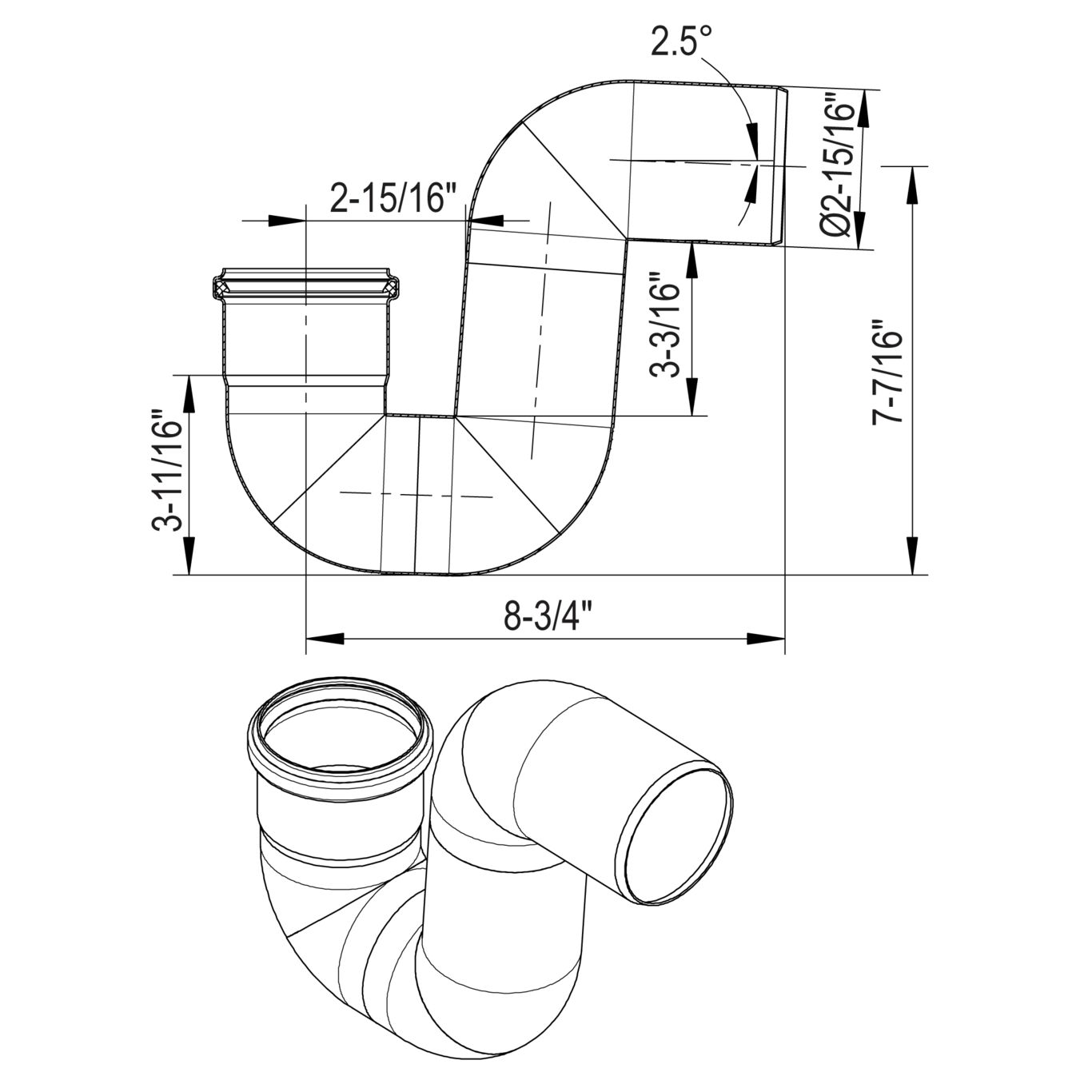

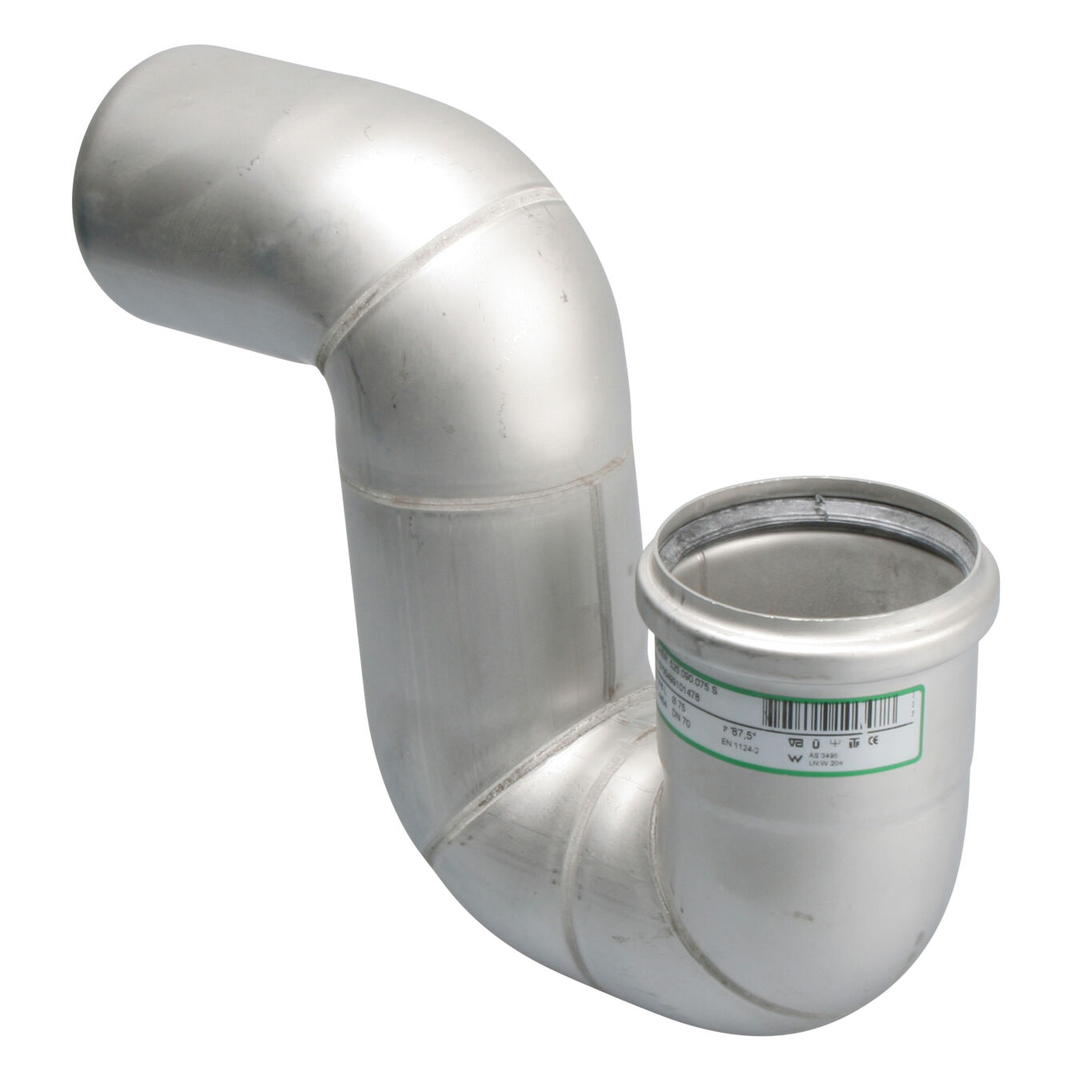

P-TRAP 87.5° - (525.090.075 S)

Part Of the Series: Water trap-p

Type no.: 525.090.075 S

EAN no.: 5705499101478

VVS no.: 160381375

RSK no.: 1550346

NRF no.: 3395042

LVI no.: 3304020


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Angle (°) 87.5
Field of Application Domestic / Industrial
Length (mm) 93
Material AISI 316L
Material (EN) EN 1.4404
Max Flow (l/s) 3.7
Minimum Flow (l/s) 2.5
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Water Seal Height (mm) 81
Weight (kg) 0.84
Weight (lbs) 1.85
