WATERLINE WATER TRAP, HIGH - (510.002.075)
×
![]()
Part Of the Series: Water trap-Shower channel
Type no.: 510.002.075
EAN no.: 5705499123067
VVS no.: 155059123
RSK no.: 7121708
NRF no.: 3394813

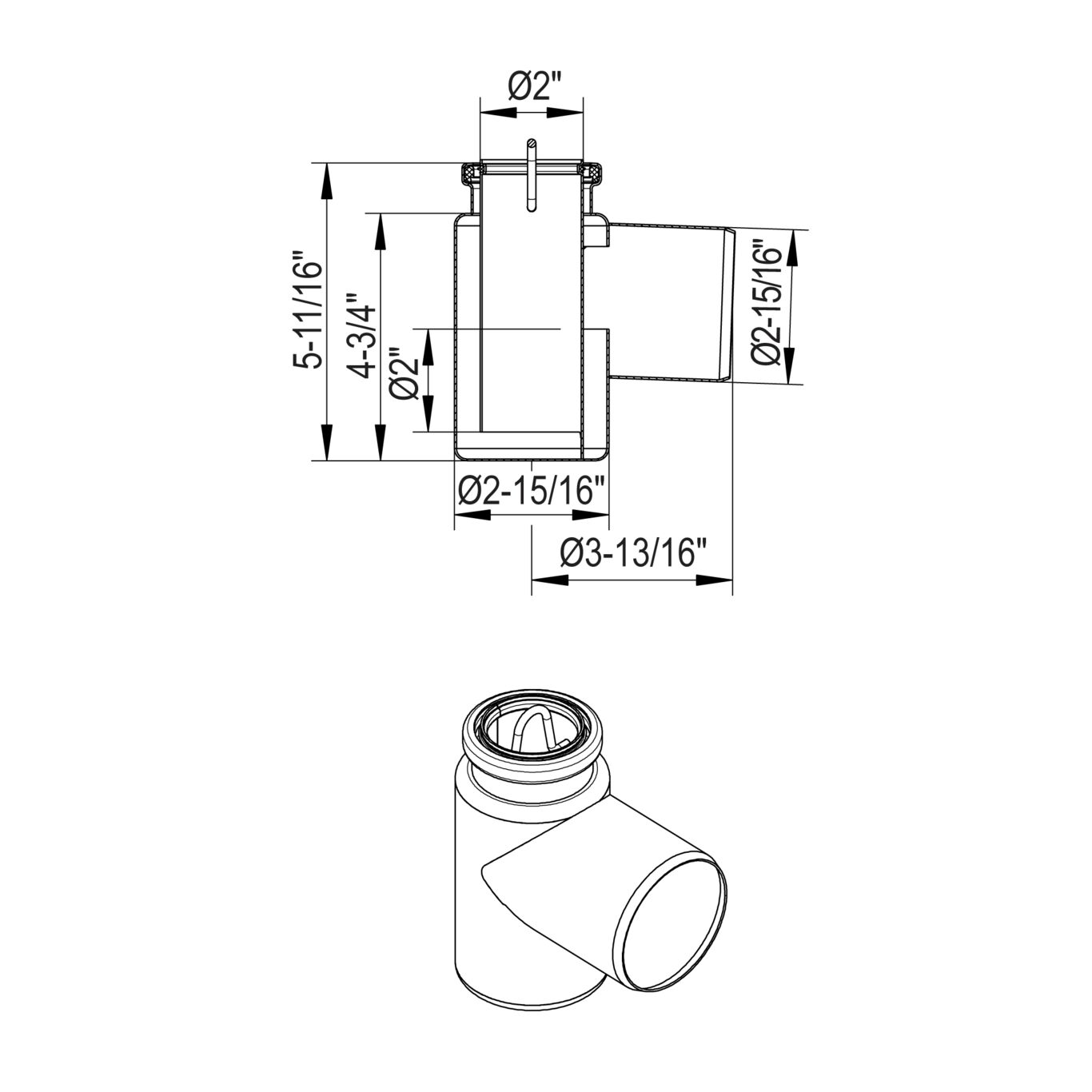

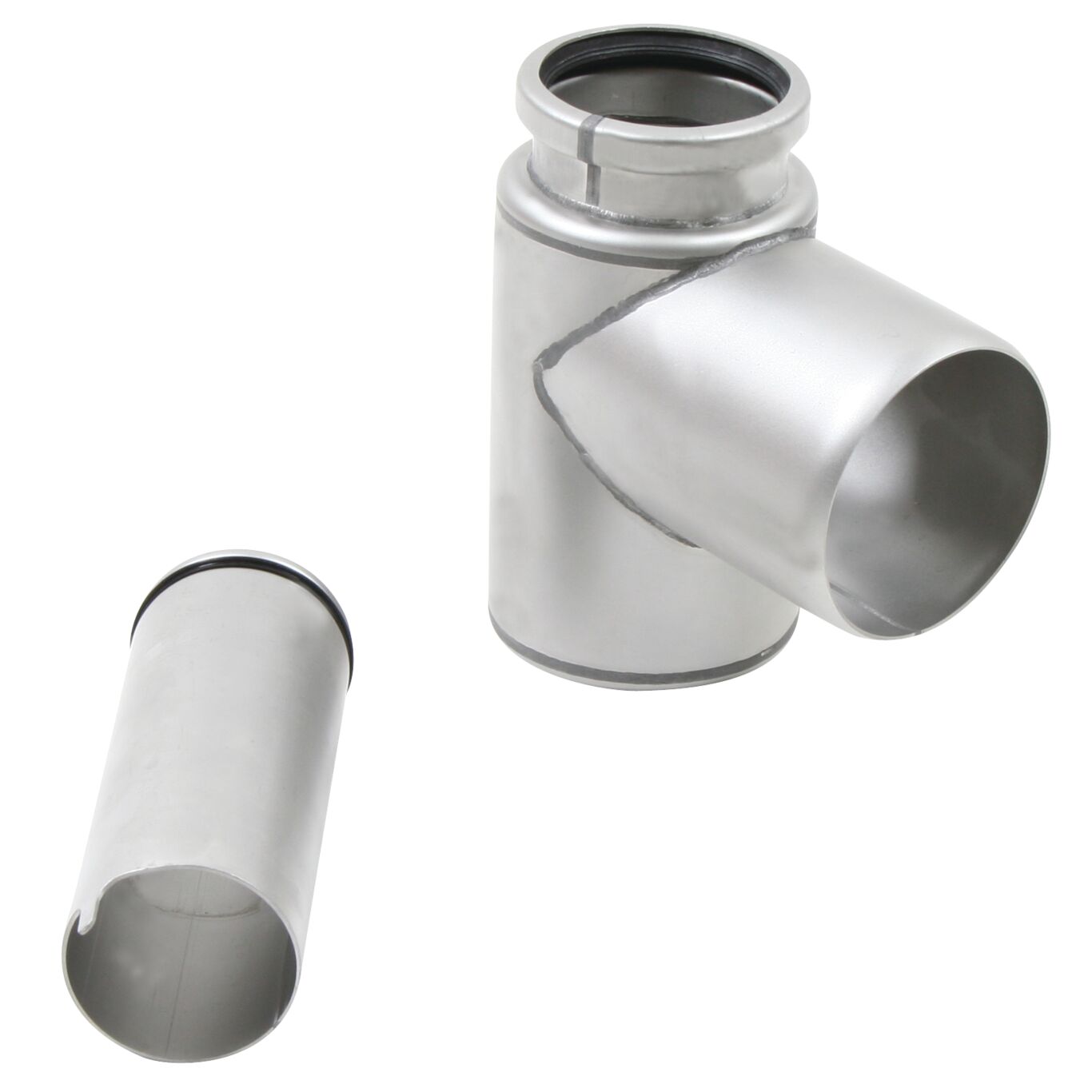

WATERLINE WATER TRAP, HIGH
-To be built in, no retro-fitting
-Water seal height = 2 inch
-Outlet: Ø3 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.8 |
| Minimum Height (mm) | 147 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 0.58 |
| Weight (lbs) | 1.28 |
-
Approval Information
For approval information, please refer to the below approval certificates.
