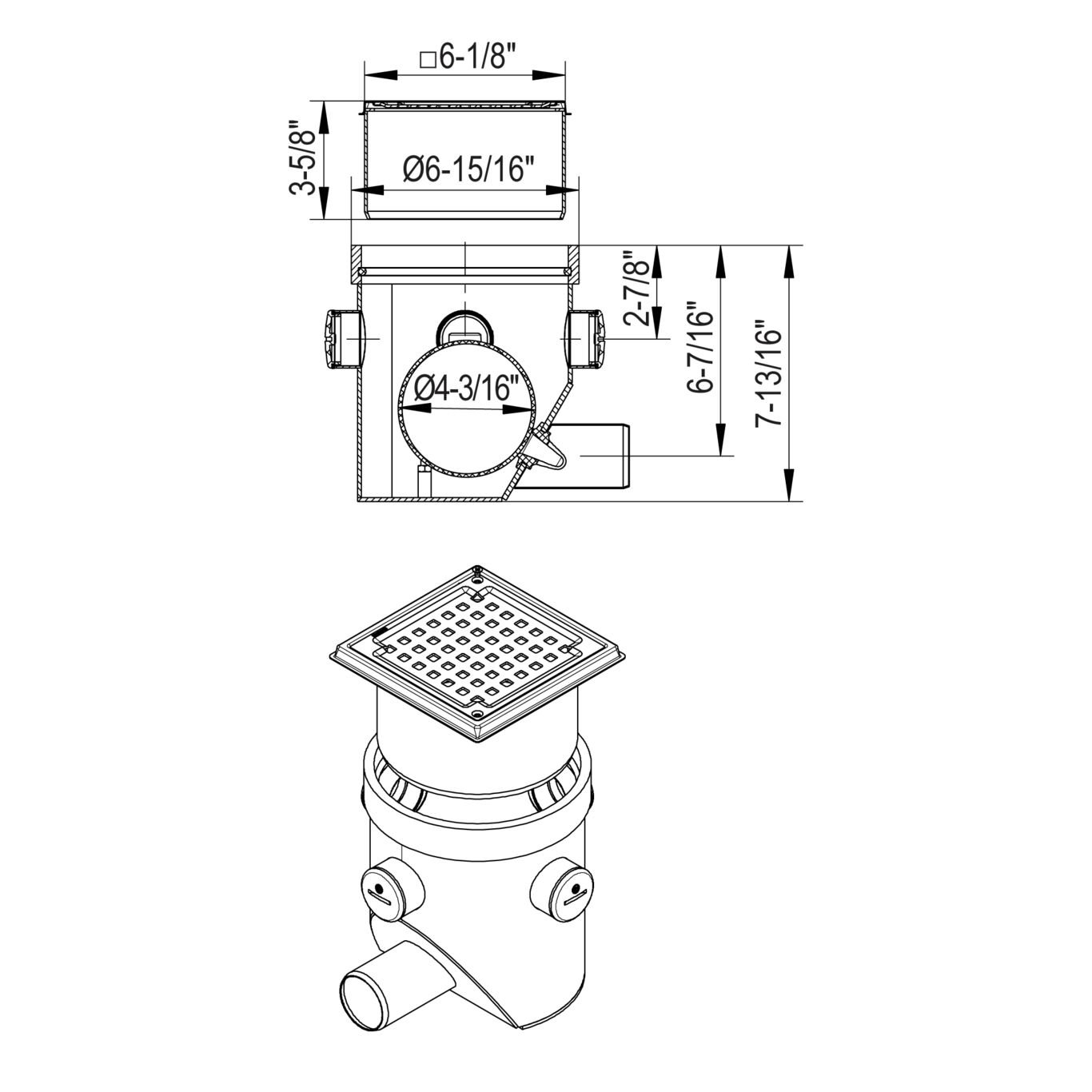

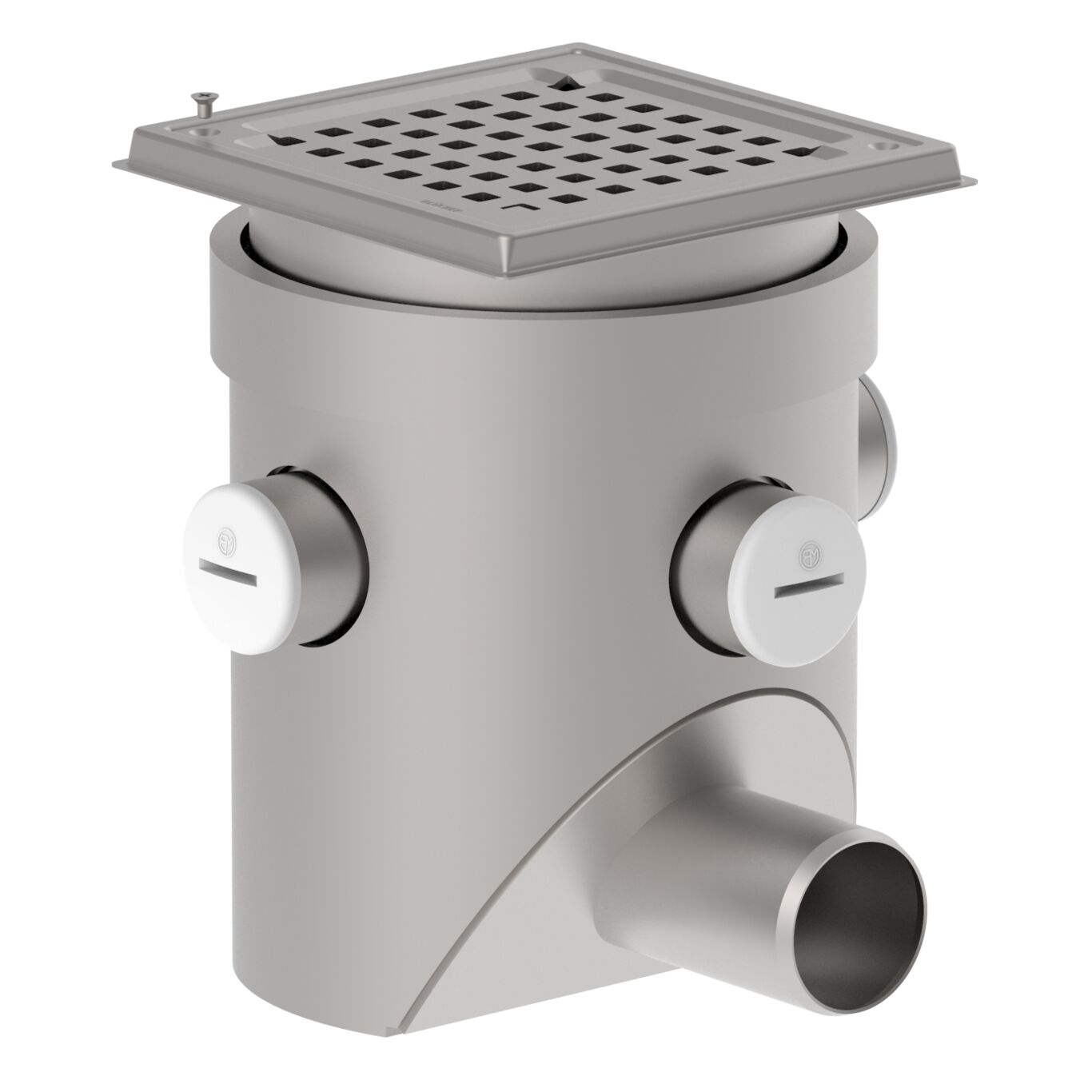

VACUUM DRAIN - (480.150.050)

Part Of the Series: Marine vacuum drain-155

Type no.: 480.150.050

EAN no.: 5705499116199

Size: 155x155


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Deck Steel
Floor Tiled
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 257
Minimum Height (mm) 217
Number of Inlets 4 (Ø1¼")
Outlet dia. (mm) 50
Outlet Diameter (Inch) 2
Outlet Direction Horizontal
Shape Square
Size (mm) 155x155
Size of Frame (Inch) 6-1/8 x 6-1/8
Weight (kg) 6.07
Weight (lbs) 13.38
