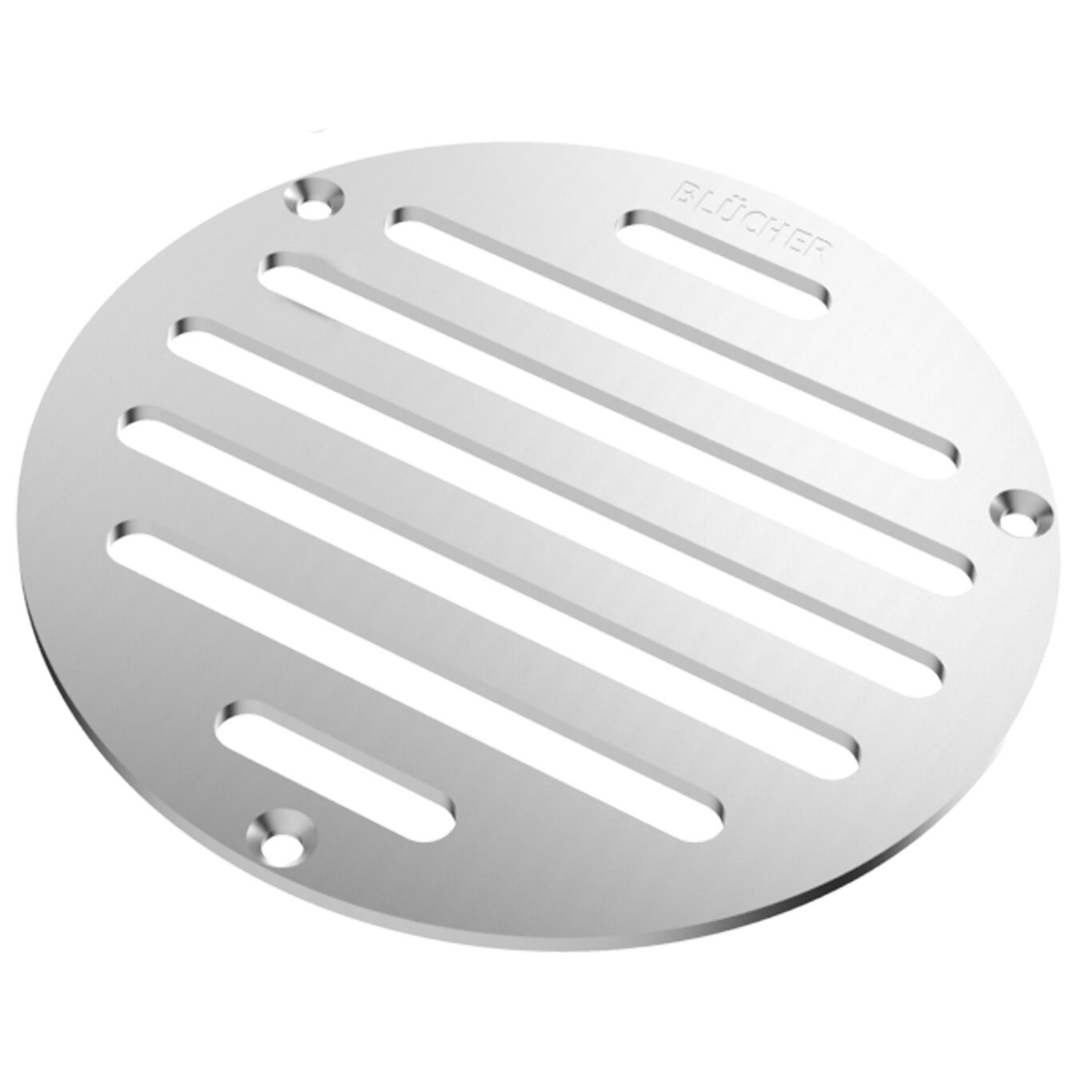

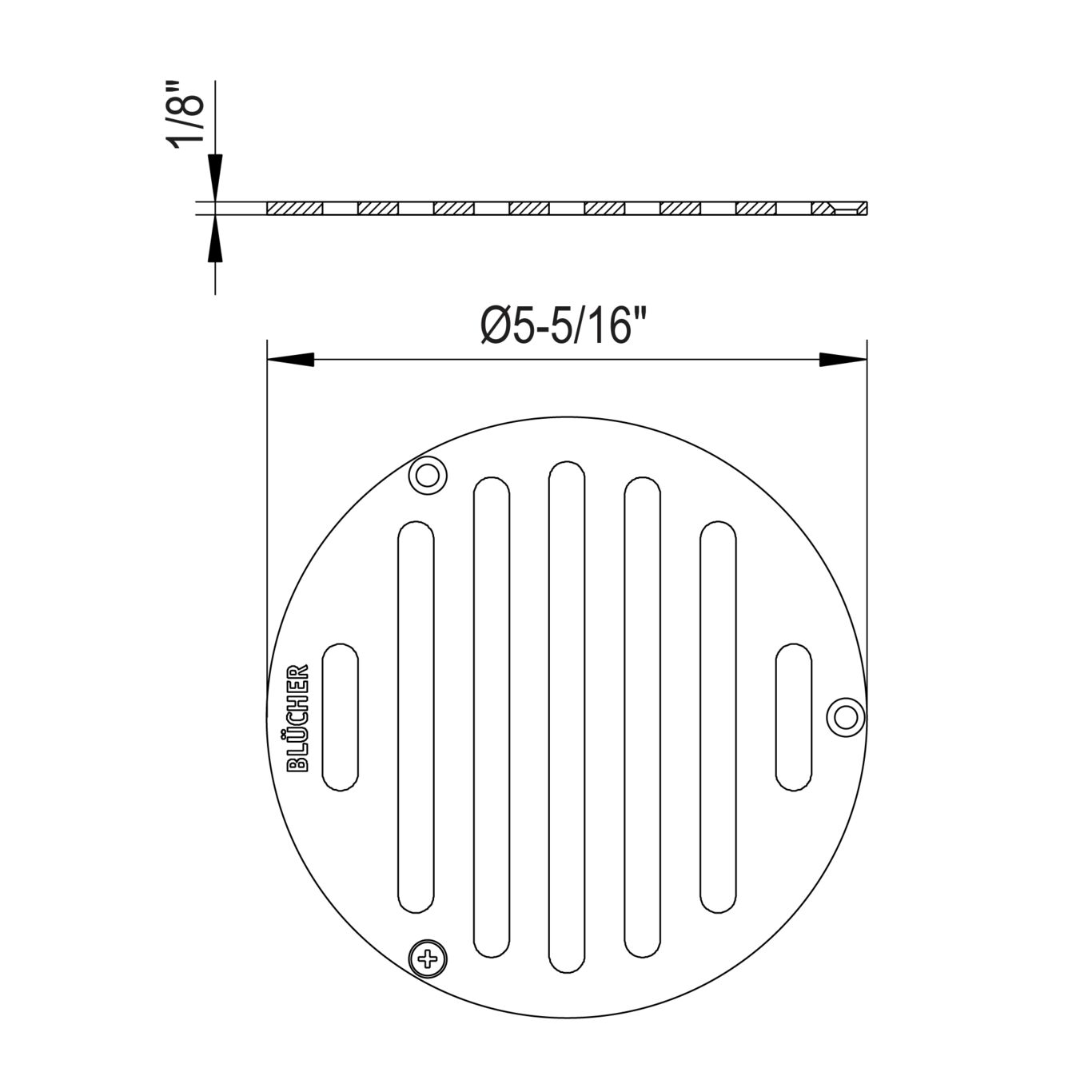

GRATING CIRCLE, 8MM SLOTS - (620.135.028 S)
×
![]()
Part Of the Series: Grating-135
Type no.: 620.135.028 S
EAN no.: 5705499135008
Size: Ø135
GRATING CIRCLE, 1/4 INCH SLOTS
-For barefoot areas
-Grating: Ø5-3/8 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load class EN1253(kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screws | 3 |
| Shape | Round |
| Size (mm) | Ø135 |
| Size of Frame (Inch) | Ø5-3/8 |
| Weight (kg) | 0.23 |
| Weight (lbs) | 0.51 |
-
Approval Information
For approval information, please refer to the below approval certificates.
