GRATING CIRCLE VIENNA - (620.135.021)
×
![]()
Part Of the Series: Grating-135
Type no.: 620.135.021
EAN no.: 5705499106459

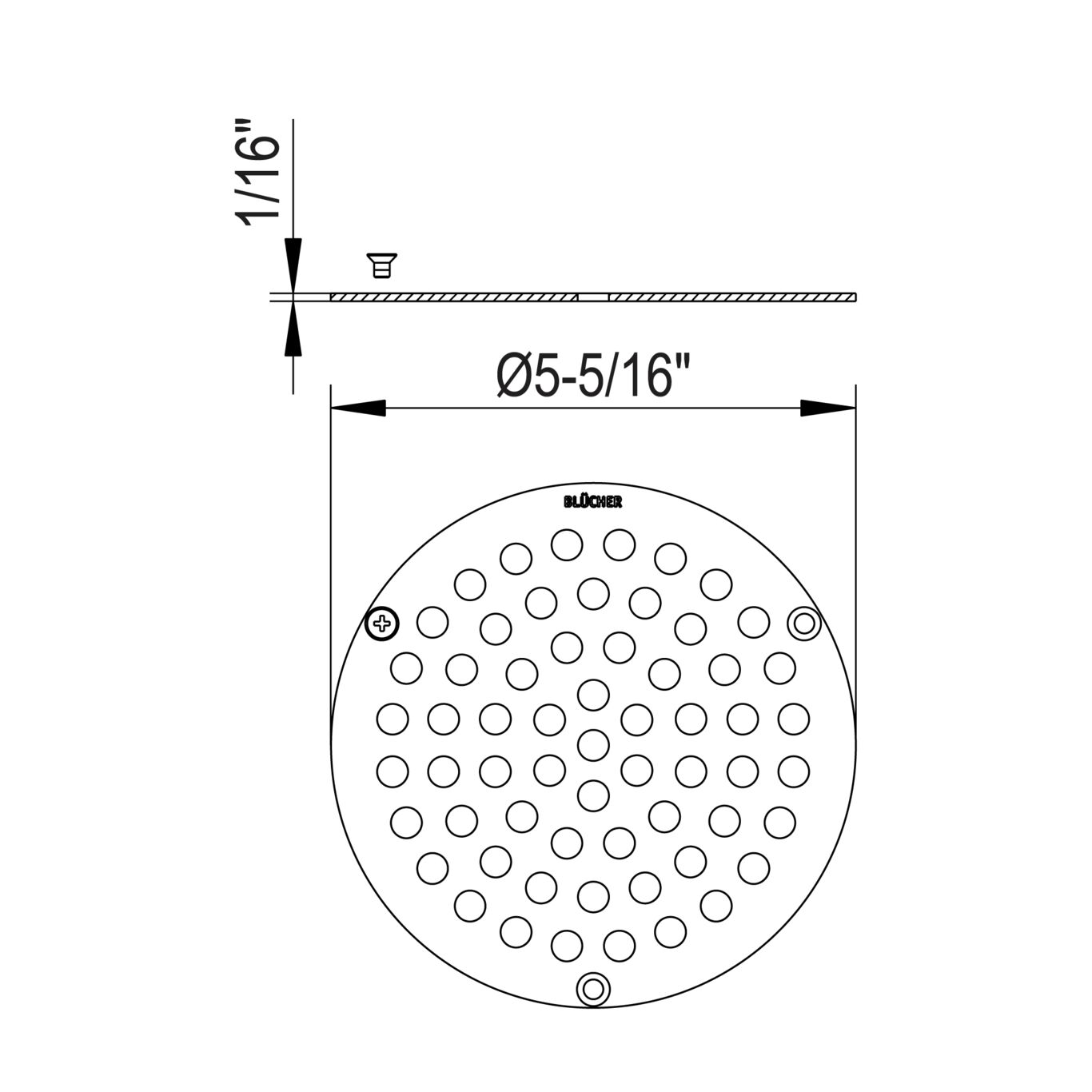

Size: Ø135
GRATING CIRCLE VIENNA
-Grating: Ø5-3/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Load class EN1253(kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 2 |
| Number of Screws | 3 |
| Shape | Round |
| Size (mm) | Ø135 |
| Size of Frame (Inch) | Ø5-3/8 |
| Weight (kg) | 0.18 |
| Weight (lbs) | 0.4 |
-
Approval Information
For approval information, please refer to the below approval certificates.
