GRATING SQUARE VIENNA - (610.100.430 S)
×
![]()
Part Of the Series: Grating-82. For Cabin drain
Type no.: 610.100.430 S
EAN no.: 5705499131840
Size: 82x82

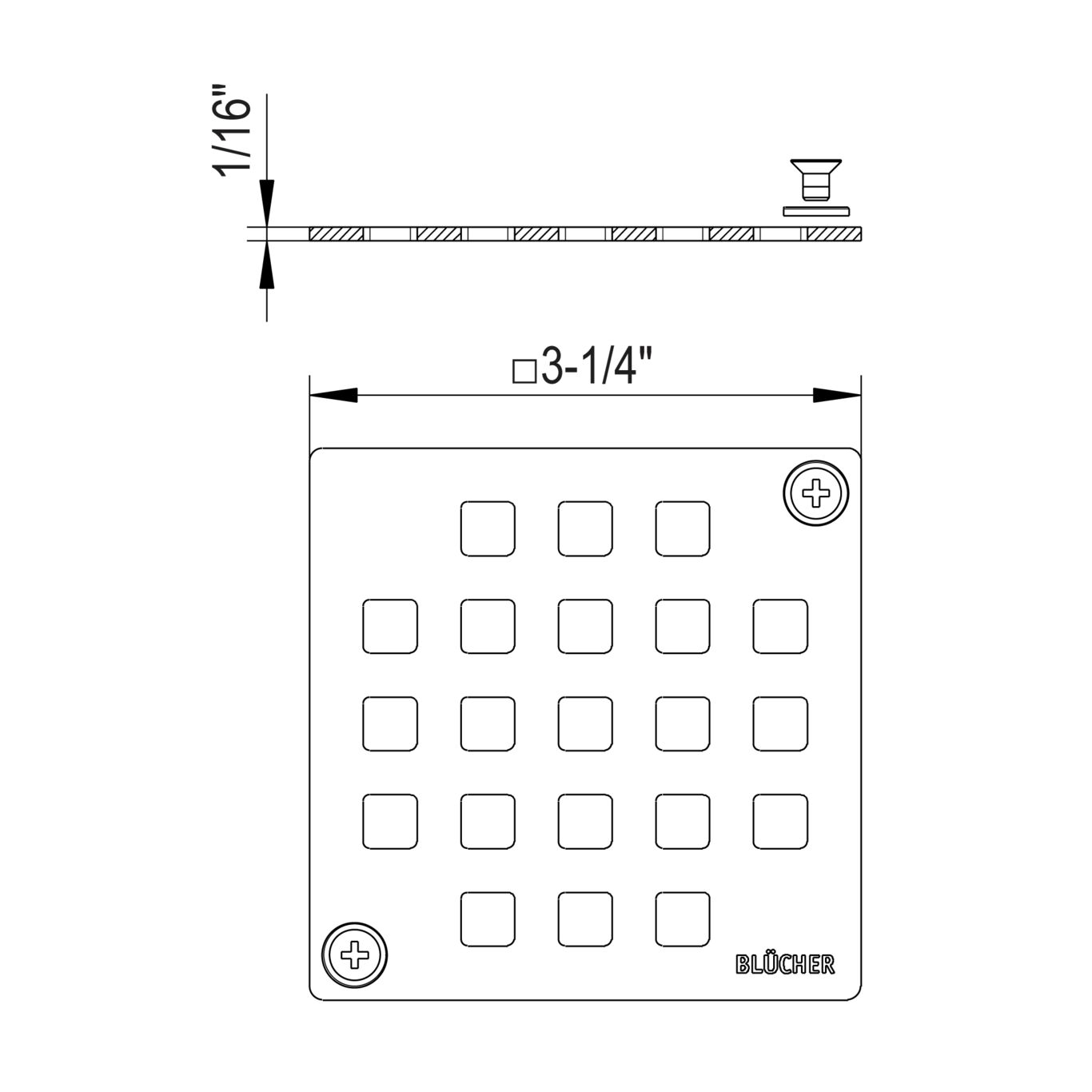

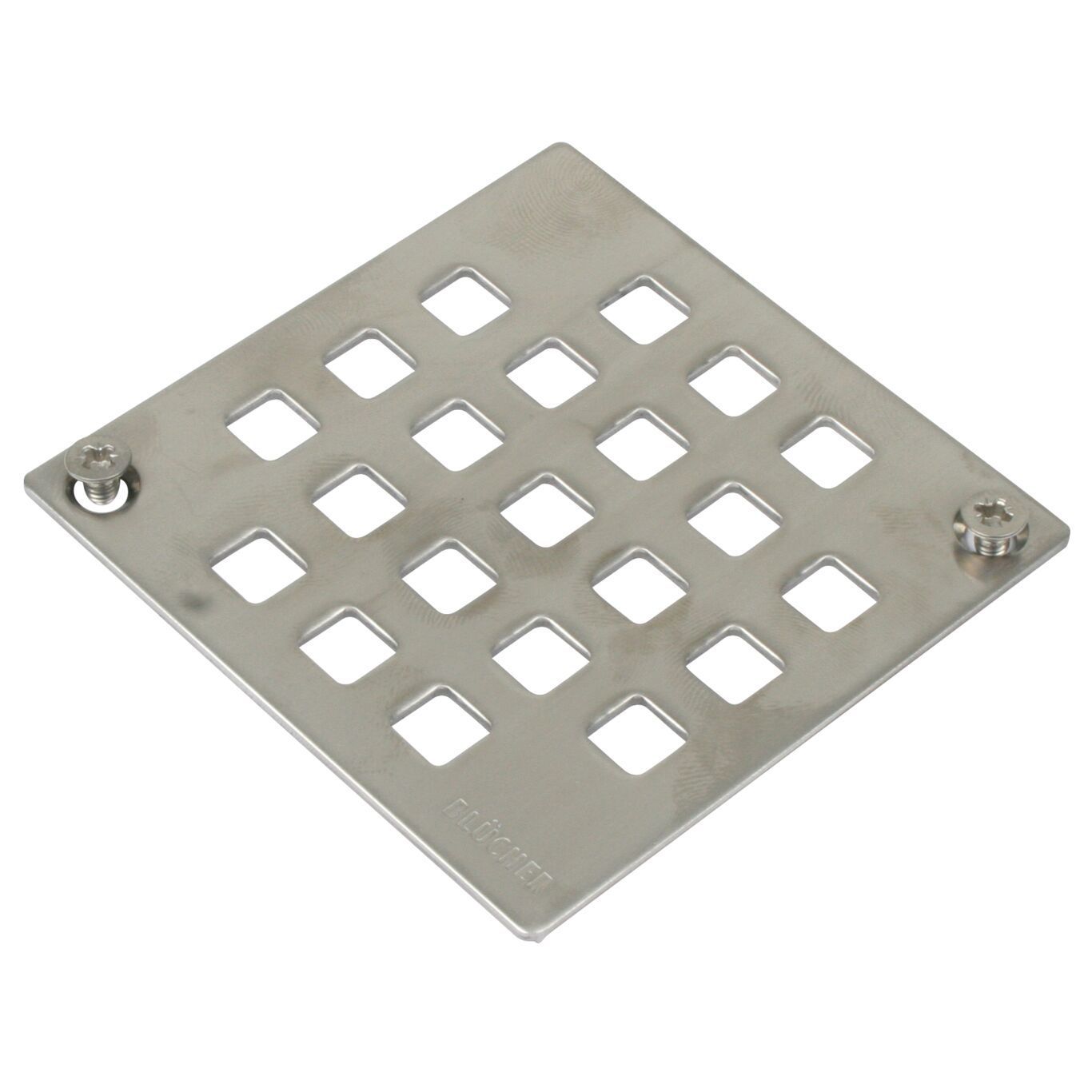

GRATING SQUARE VIENNA
-With screw lock
-Grating: 3-1/4 x 3-1/4 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Load class EN1253(kg) | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Number of Screws | 2 |
| Shape | Square |
| Size (mm) | 82x82 |
| Size of Frame (Inch) | 3-1/4 x 3-1/4 |
| Weight (kg) | 0.09 |
| Weight (lbs) | 0.2 |
-
Approval Information
For approval information, please refer to the below approval certificates.
