PENETRATION WITH FLANGE - (868.100.040FS)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.100.040FS
EAN no.: 5705499413281
NRF no.: 2172779

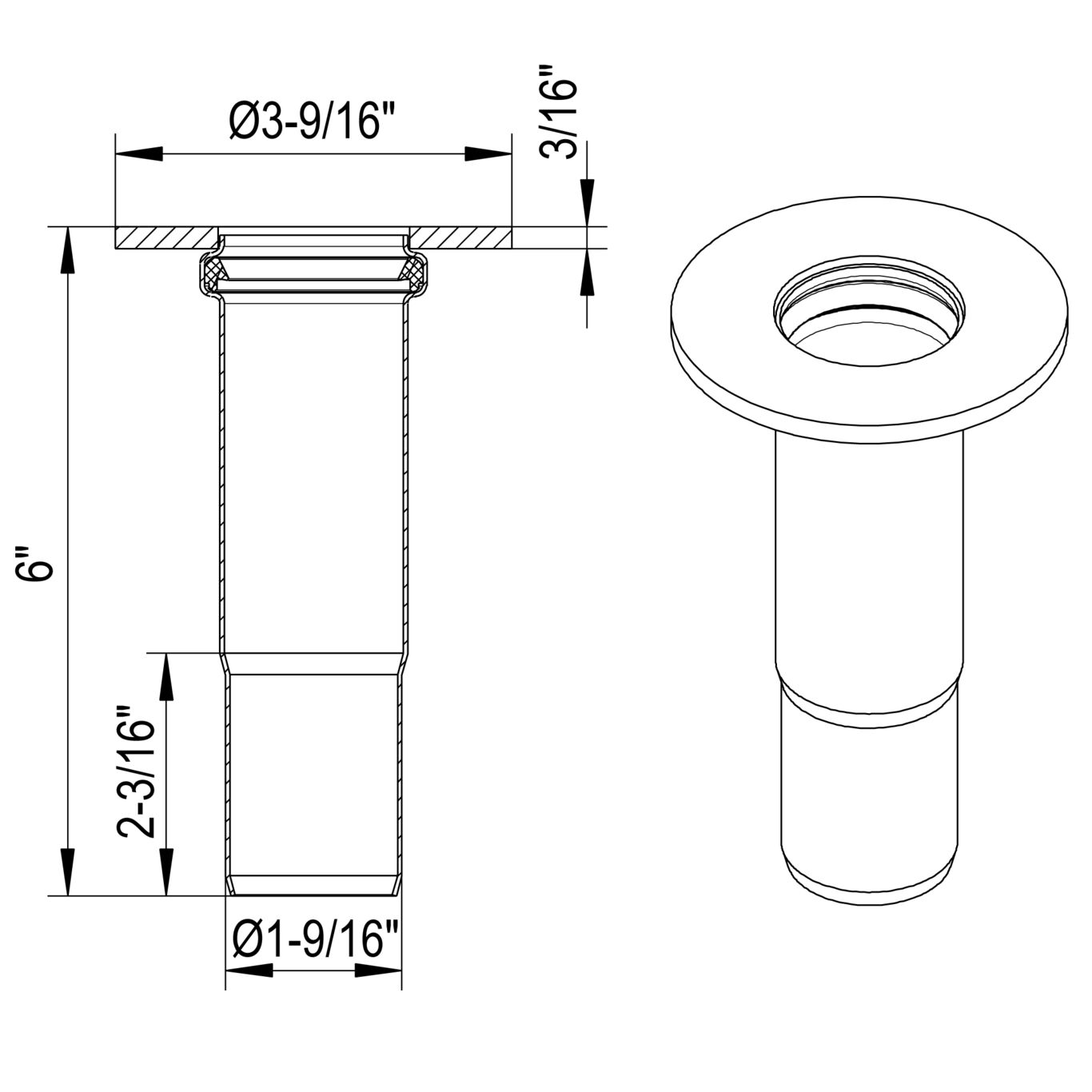

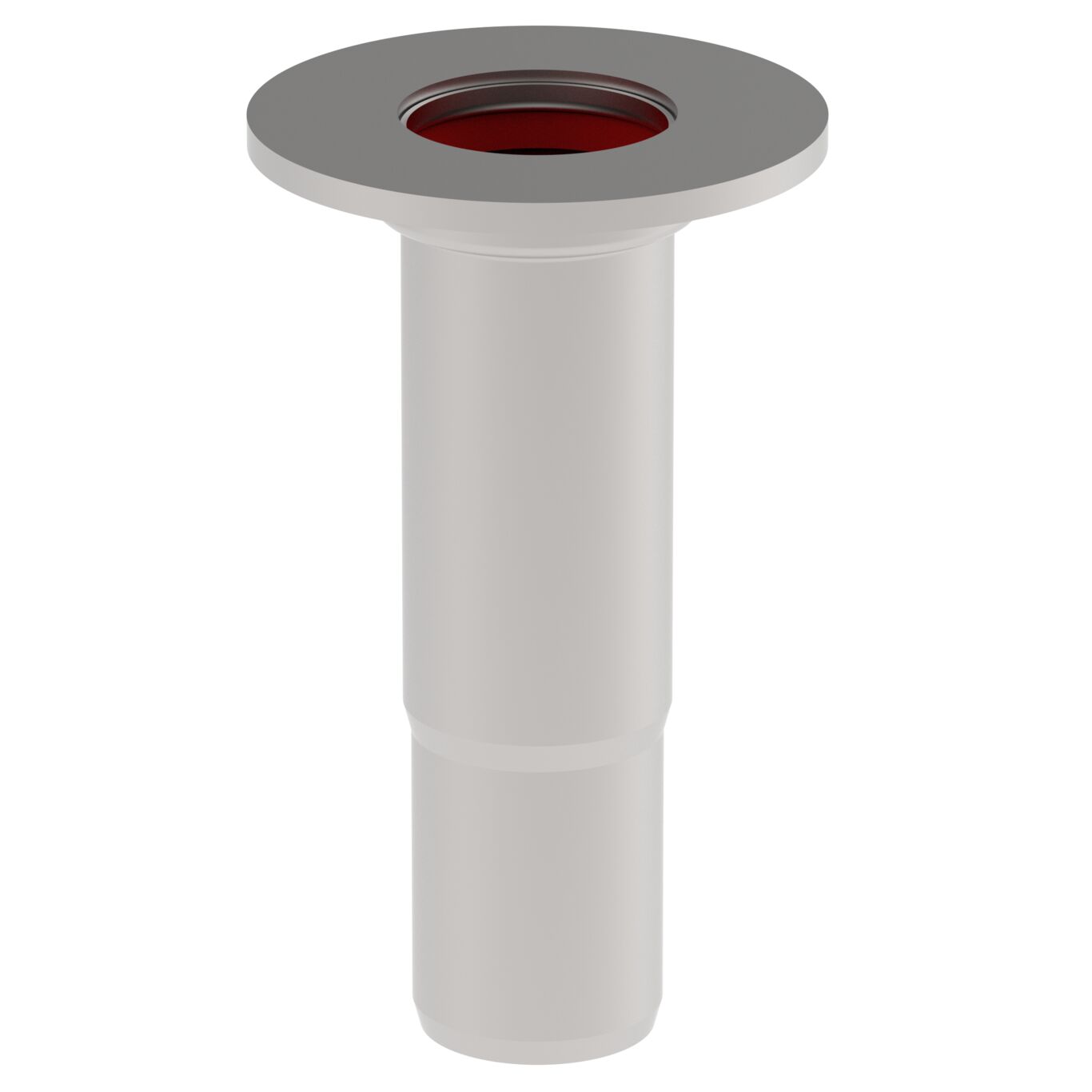

PENETRATION WITH FLANGE
-Diameter: Ø40mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 55 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 152 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 0.36 |
| Weight (lbs) | 0.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DNV - MEDB000016W, Rev7
HACCP Food Safety Programme - Europe
