PENETRATION WITH FLANGE - (868.115.075F)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.115.075F
EAN no.: 5705499411201
NRF no.: 2172414

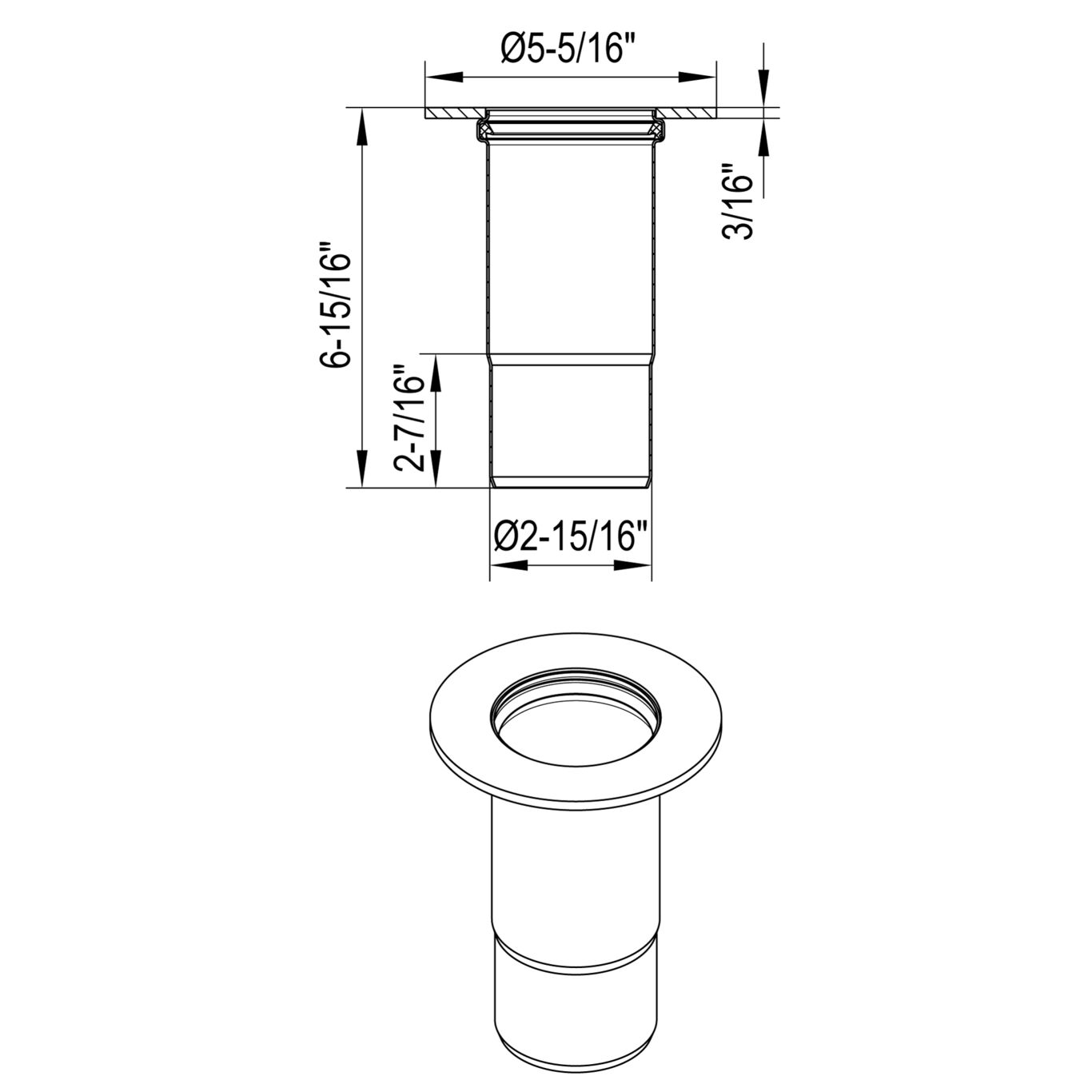

PENETRATION WITH FLANGE
-Diameter: Ø75mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 62 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 176 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.7 |
| Weight (lbs) | 1.54 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DNV - MEDB000016W, Rev7
