PENETRATION WITH FLANGE - (868.125.110F)
×
![]()
Part Of the Series: Penetration-welding flange-steel
Type no.: 868.125.110F
EAN no.: 5705499411225
NRF no.: 2172416

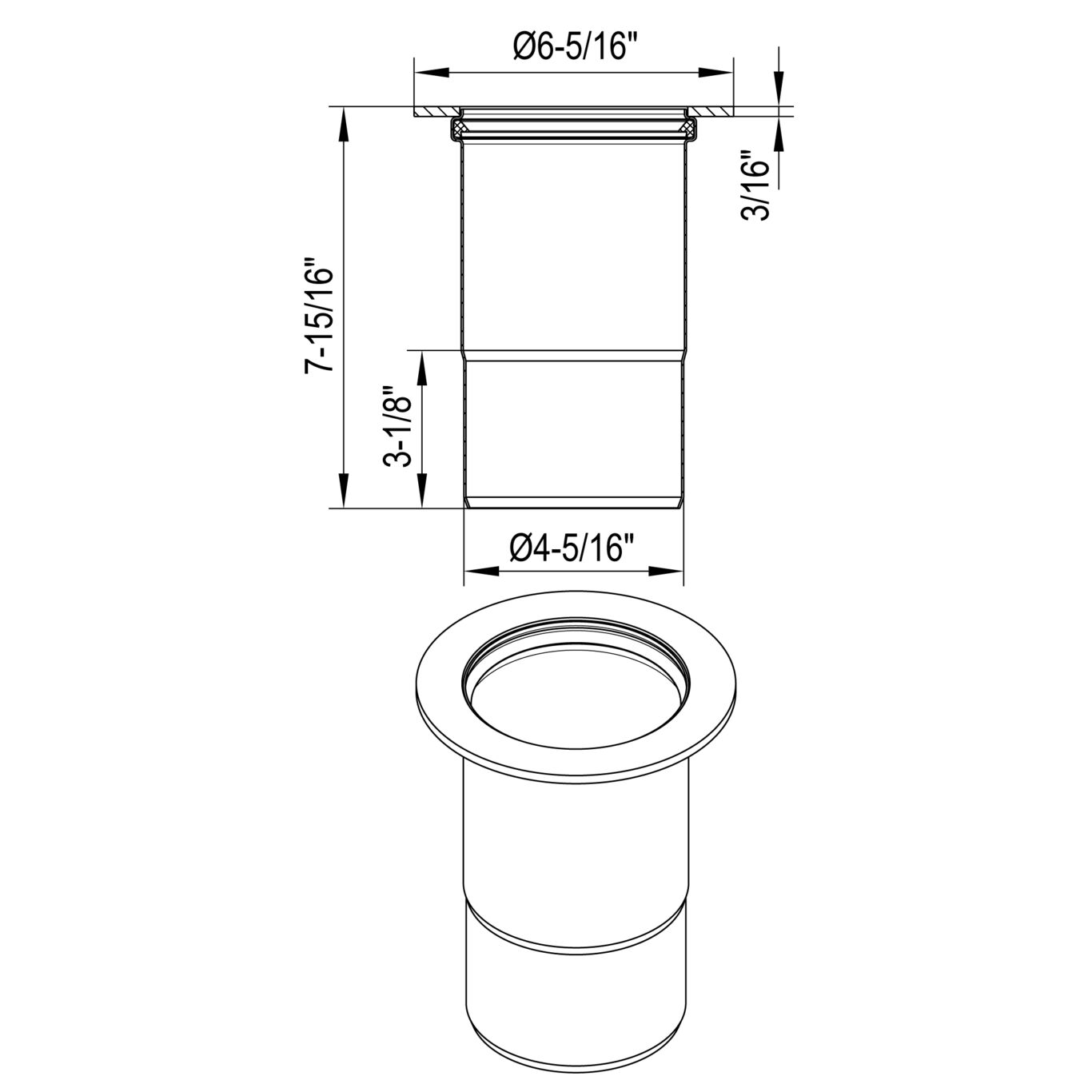

PENETRATION WITH FLANGE
-Diameter: Ø110mm
-With SI sealing
-Deck: steel
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Length (mm) | 79 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 201 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1 |
| Weight (lbs) | 2.2 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DNV - MEDB000016W, Rev7 ABS - LD1716353-PDA Achilles Certificate - 46702-22 Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes ClassNK - Type868, TA21160E(N)_21FPA12DA Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM
