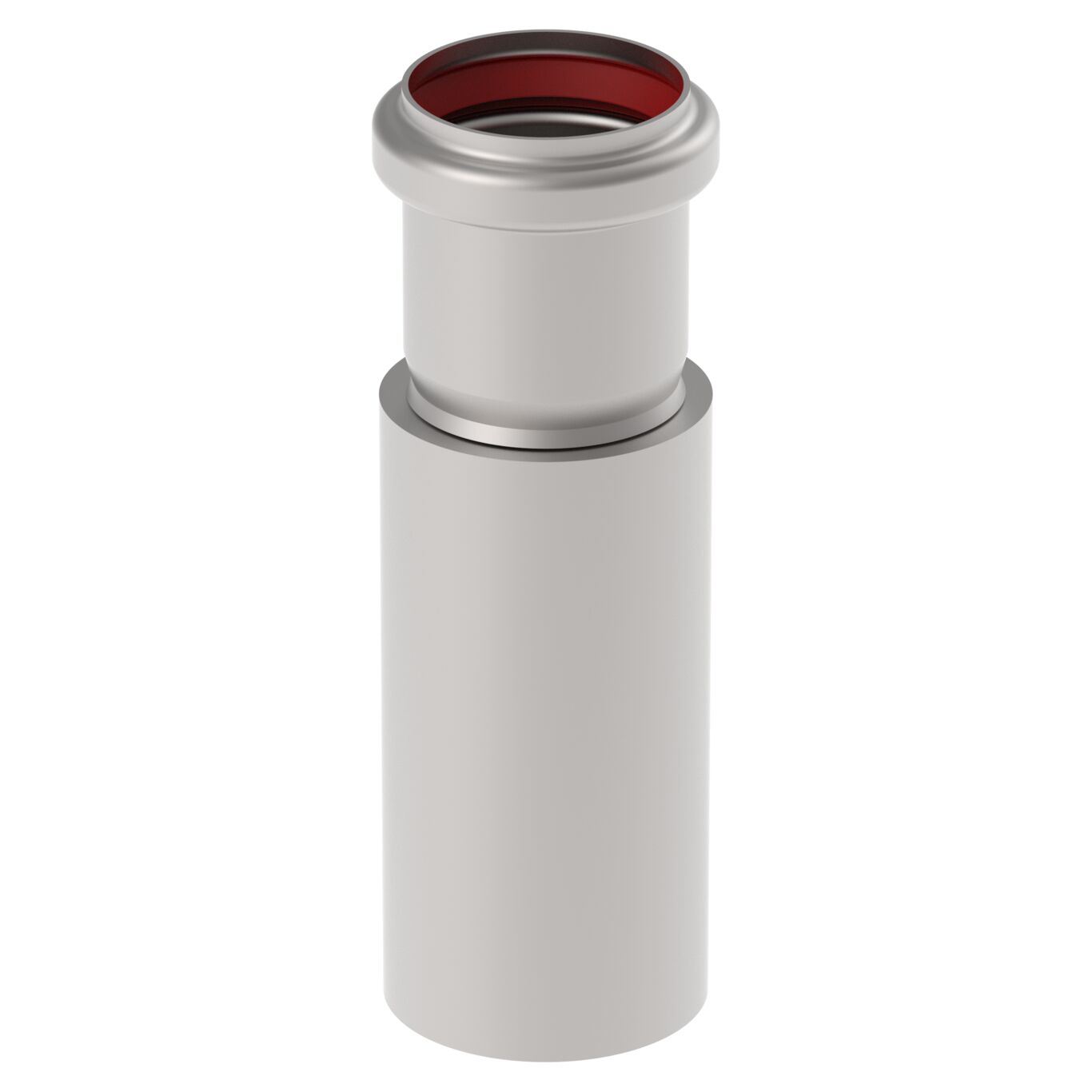

PENETRATION WITH SOCKET - (875.050.040FS)
×
![]()
Part Of the Series: Transition pipe-welding sleeve-steel
Type no.: 875.050.040FS
EAN no.: 5705499139792
PENETRATION WITH SOCKET
- Welding transition: Ø50mm
- With SI sealing
- Diameter: Ø40mm
- Deck: steel
- Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Deck | Steel |
| EC/MED (Bulkhead) | A0-A60 |
| EC/MED (Deck) | A0-A60 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 150 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Weight (kg) | 0.62 |
| Weight (lbs) | 1.37 |
-
Approval Information
For approval information, please refer to the below approval certificates.
