ROOF DRAIN FOR GRAVITY - (402.100.050)
×
![]()
Part Of the Series: Drain for gravity-single ply membrane
Type no.: 402.100.050
EAN no.: 5705499133363
VVS no.: 164103050
NRF no.: 3394508
LVI no.: 3384546

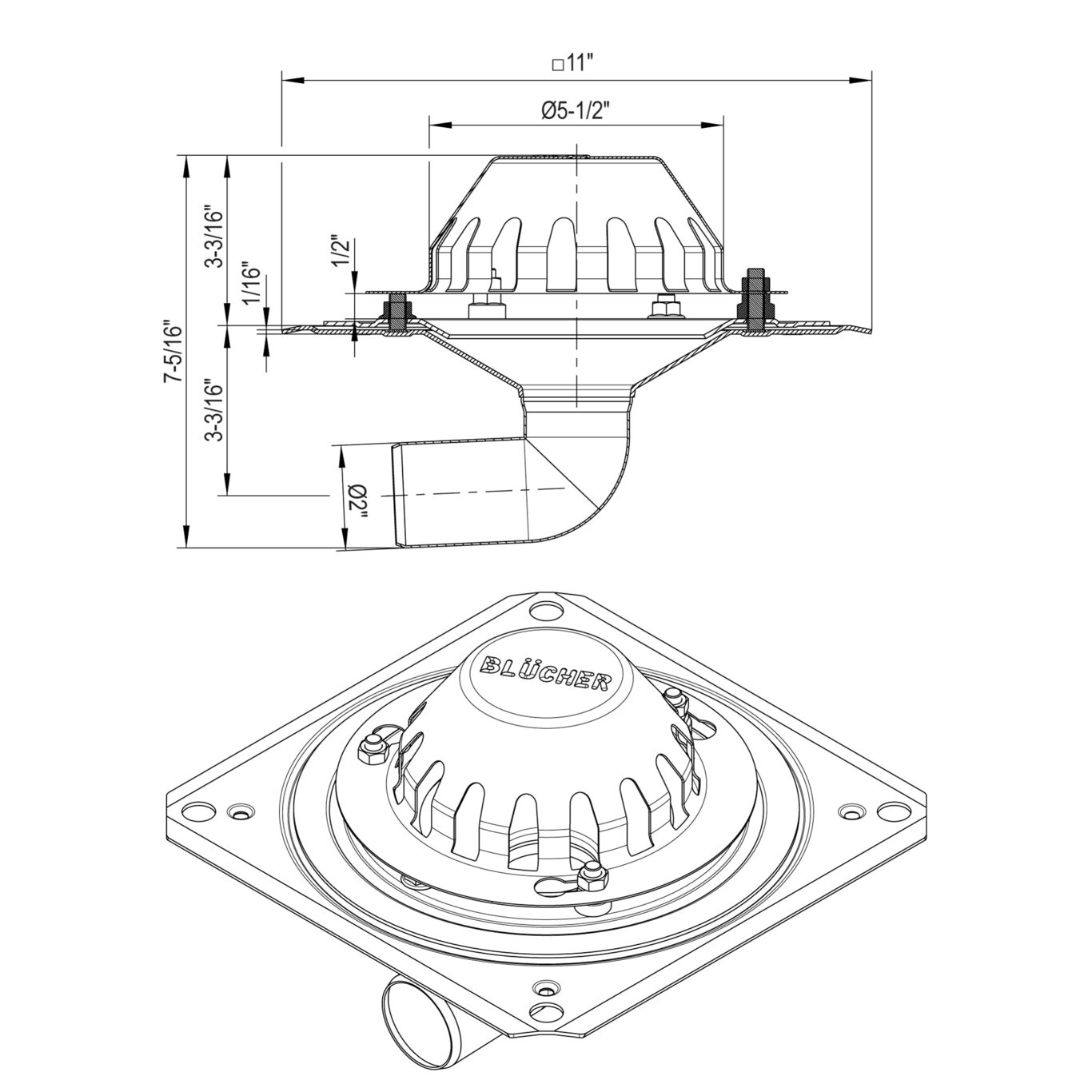

ROOF DRAIN FOR GRAVITY
-Roof: single ply membrane
-Flange: 11 x 11 inch
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.8 |
| Minimum Height (mm) | 186 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Horizontal |
| Roof | Single ply membrane |
| System | Gravity |
| Weight (kg) | 2.4 |
| Weight (lbs) | 5.29 |
-
Approval Information
For approval information, please refer to the below approval certificates.
