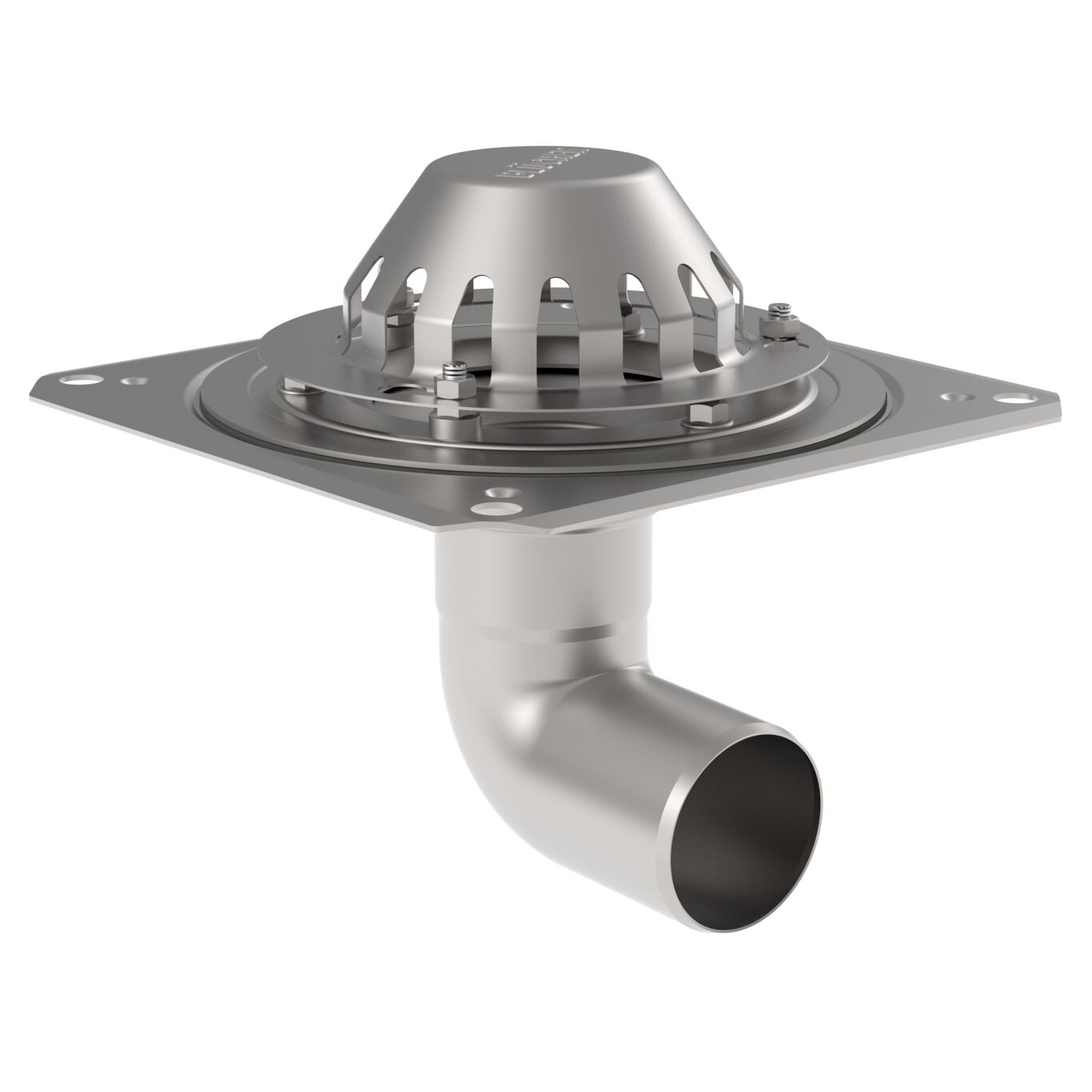

ROOF DRAIN FOR GRAVITY - (402.100.075)

Part Of the Series: Drain for gravity-single ply membrane

Type no.: 402.100.075

EAN no.: 5705499133370

VVS no.: 164103075

NRF no.: 3394509

LVI no.: 3384547


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 5.0
Minimum Height (mm) 210
Outlet dia. (mm) 75
Outlet Diameter (Inch) 3
Outlet Direction Horizontal
Roof Single ply membrane
System Gravity
Weight (kg) 2.5
Weight (lbs) 5.51
