ROOF DRAIN FOR SIPHONIC - (403.204.075)
×
![]()
Part Of the Series: Drain for siphonic-bitumen collar
Type no.: 403.204.075
EAN no.: 5705499133196
VVS no.: 164112075
LVI no.: 3384545

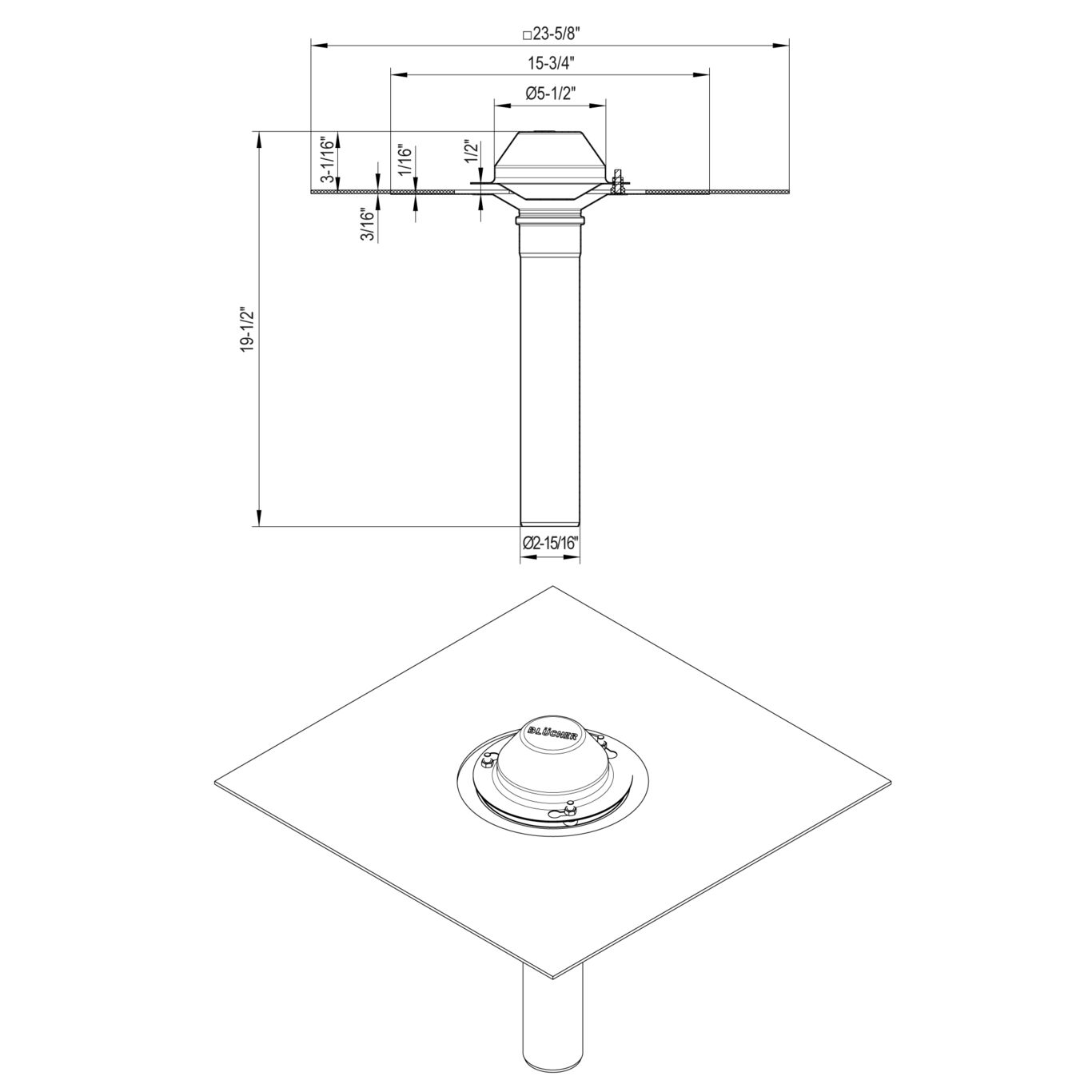

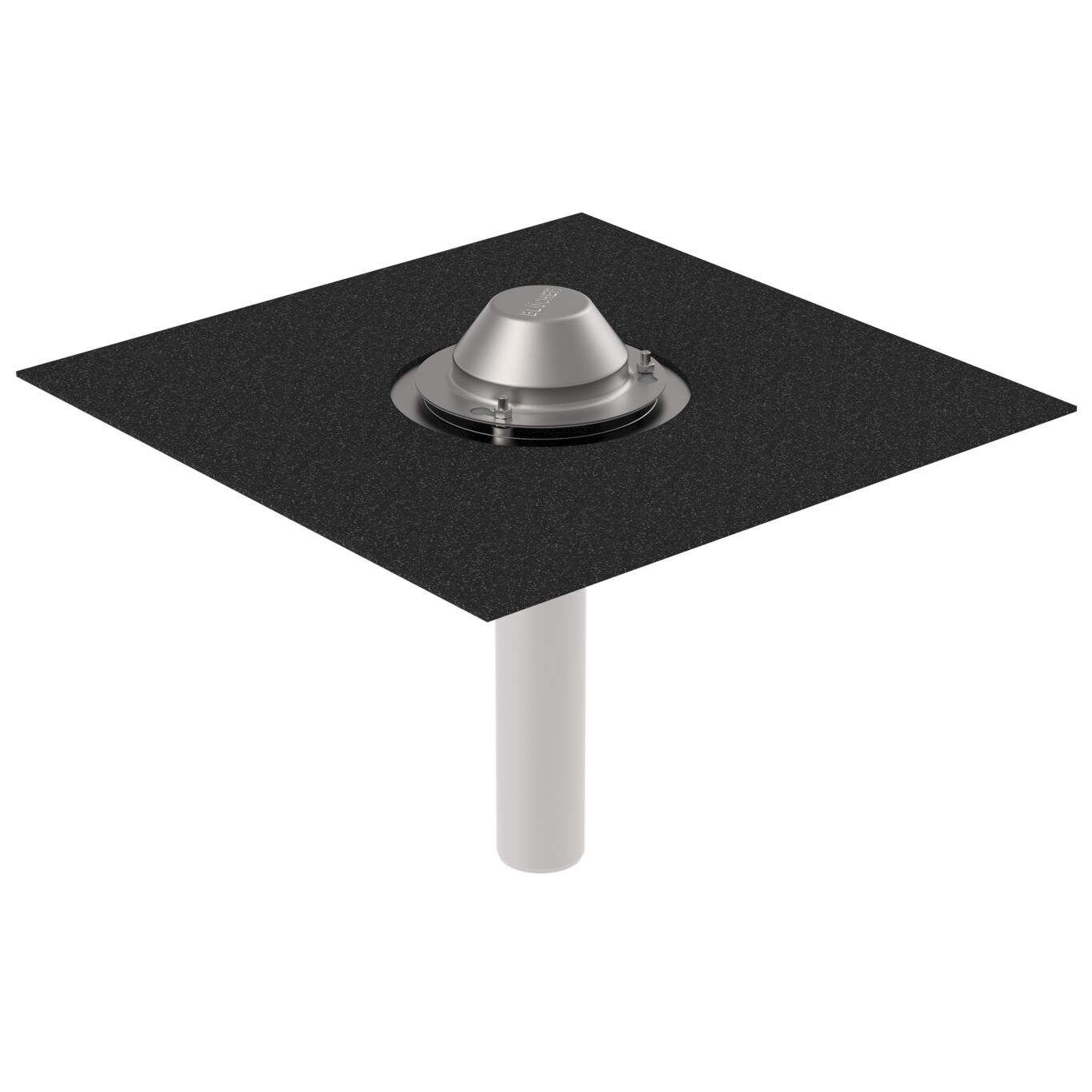

ROOF DRAIN FOR SIPHONIC
-With pre-mounted bitumen collar
-Roof: bitumen
-Flange: 15-3/4 x 15-3/4 inch
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 18.8 |
| Minimum Height (mm) | 496 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 3.76 |
| Weight (lbs) | 8.29 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
