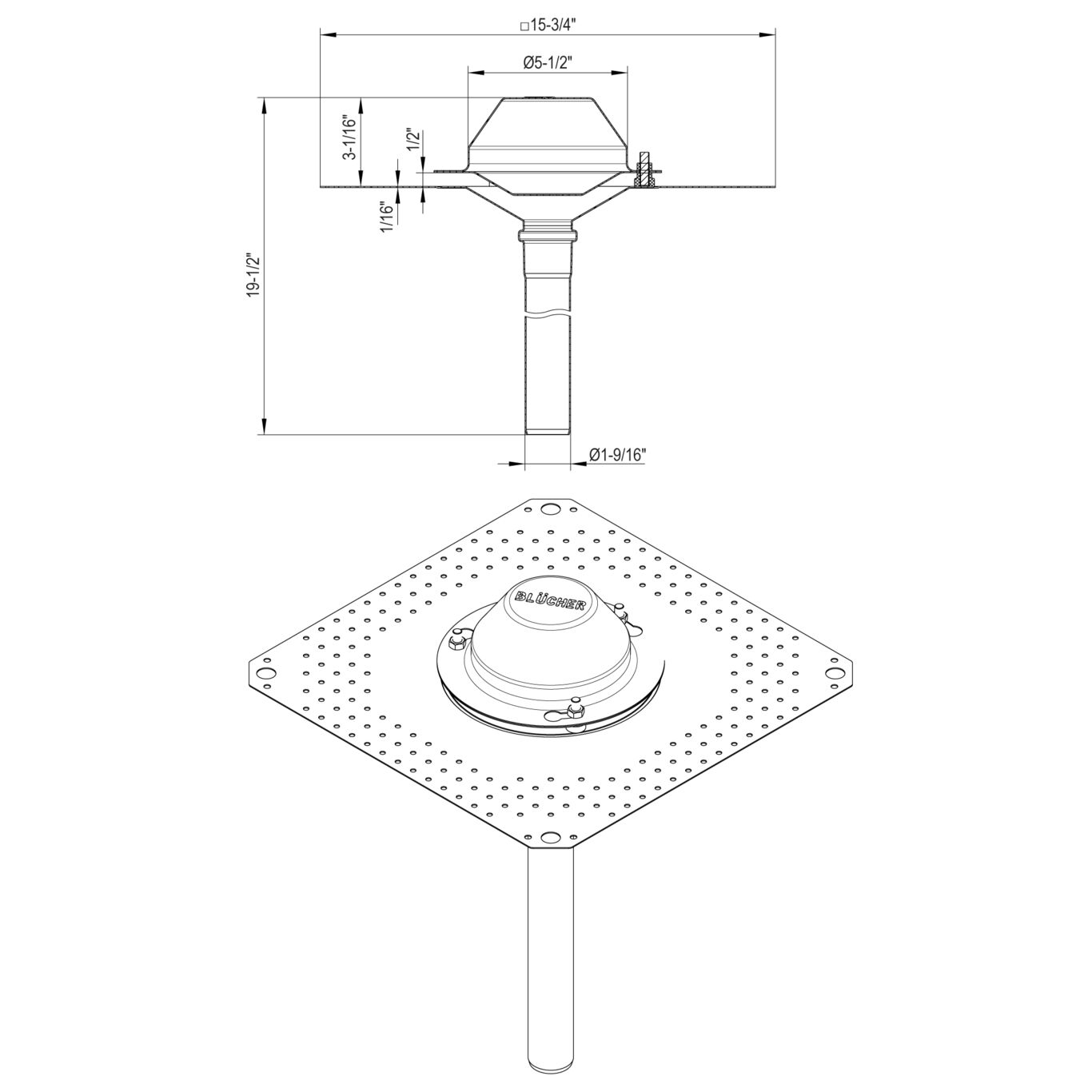

ROOF DRAIN FOR SIPHONIC - (401.204.040)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.204.040
EAN no.: 5705499132823
VVS no.: 164110040
RSK no.: 5173694
LVI no.: 3384521
ROOF DRAIN FOR SIPHONIC
-Roof: bitumen
-Flange: 15-3/4 x 15-3/4 inch
-Outlet: Ø1-1/2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 4.1 |
| Minimum Height (mm) | 496 |
| Outlet dia. (mm) | 40 |
| Outlet Diameter (Inch) | 1-1/2 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 1.88 |
| Weight (lbs) | 4.14 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
