ROOF DRAIN FOR SIPHONIC - (401.204.075)
×
![]()
Part Of the Series: Drain for siphonic-bitumen
Type no.: 401.204.075
EAN no.: 5705499132847
VVS no.: 164110075
RSK no.: 5173702
LVI no.: 3384523

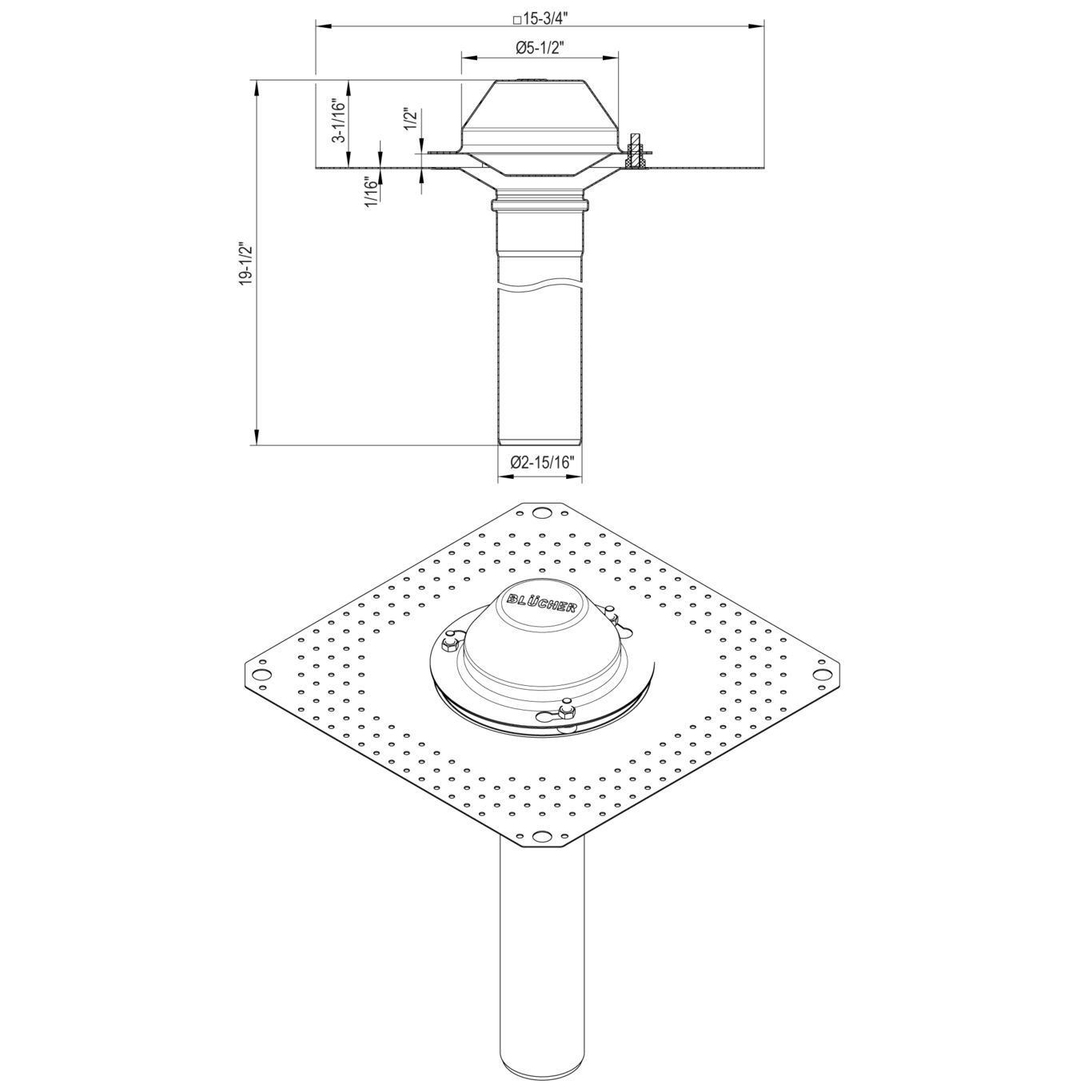

ROOF DRAIN FOR SIPHONIC
-Roof: bitumen
-Flange: 15-3/4 x 15-3/4 inch
-Outlet: Ø3 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 18.8 |
| Minimum Height (mm) | 496 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| System | Siphonic |
| Weight (kg) | 2.21 |
| Weight (lbs) | 4.87 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
