LOWER PART FOR ROOF DRAIN - (401.004.050)
×
![]()
Part Of the Series: Lower part-bitumen
Type no.: 401.004.050
EAN no.: 5705499132922
VVS no.: 164120050
RSK no.: 5173710
LVI no.: 3384515

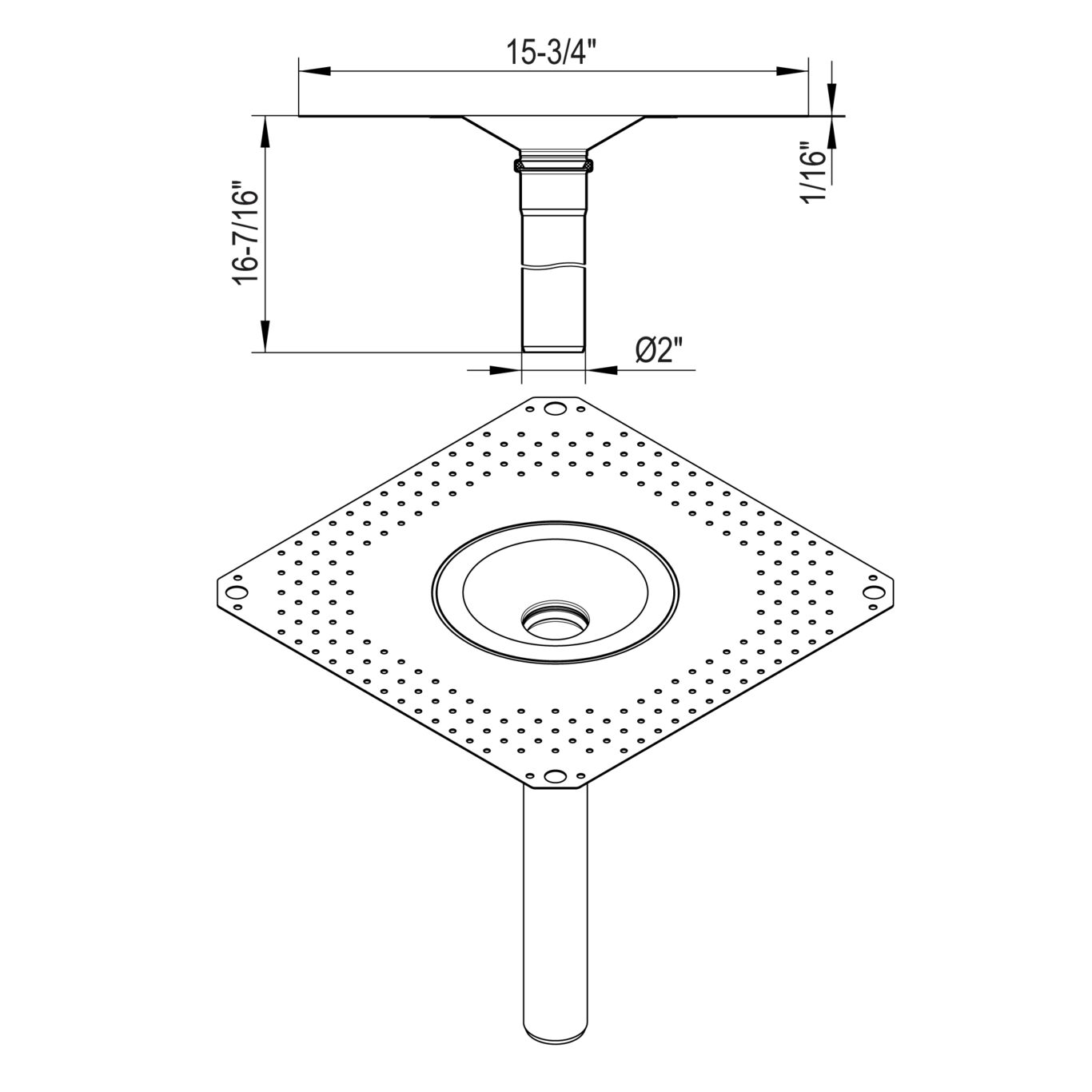

LOWER PART FOR ROOF DRAIN
-Roof: bitumen
-Flange: 15-3/4 x 15-3/4 inch
-Outlet: Ø2 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 418 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Outlet Direction | Vertical |
| Roof | Bitumen |
| Weight (kg) | 1.34 |
| Weight (lbs) | 2.95 |
-
Approval Information
For approval information, please refer to the below approval certificates.
