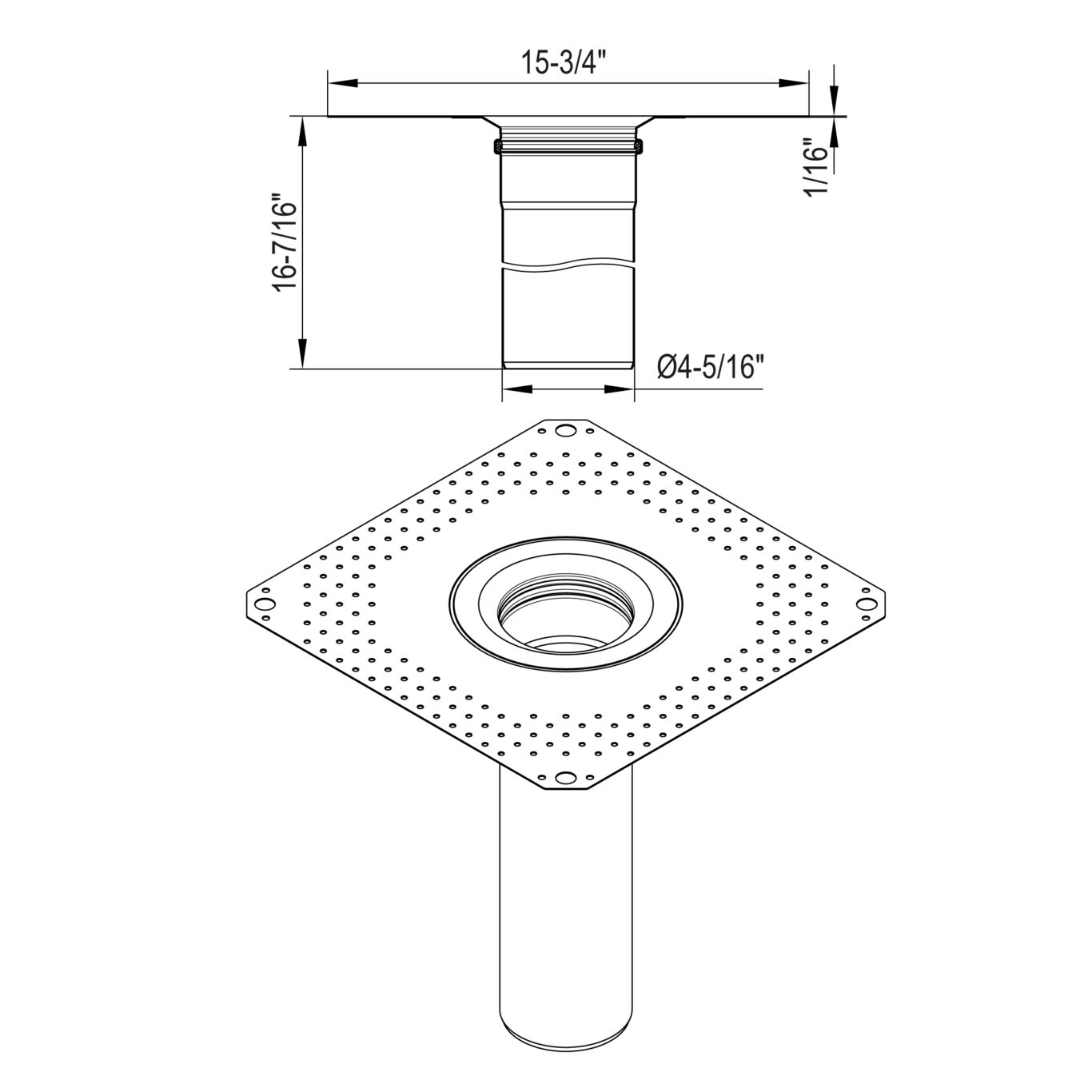

LOWER PART FOR ROOF DRAIN - (401.004.110)

Part Of the Series: Lower part-bitumen

Type no.: 401.004.110

EAN no.: 5705499132946

VVS no.: 164120110

RSK no.: 5173712

LVI no.: 3384517


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 418
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Roof Bitumen
Weight (kg) 1.94
Weight (lbs) 4.28

Lower parts
