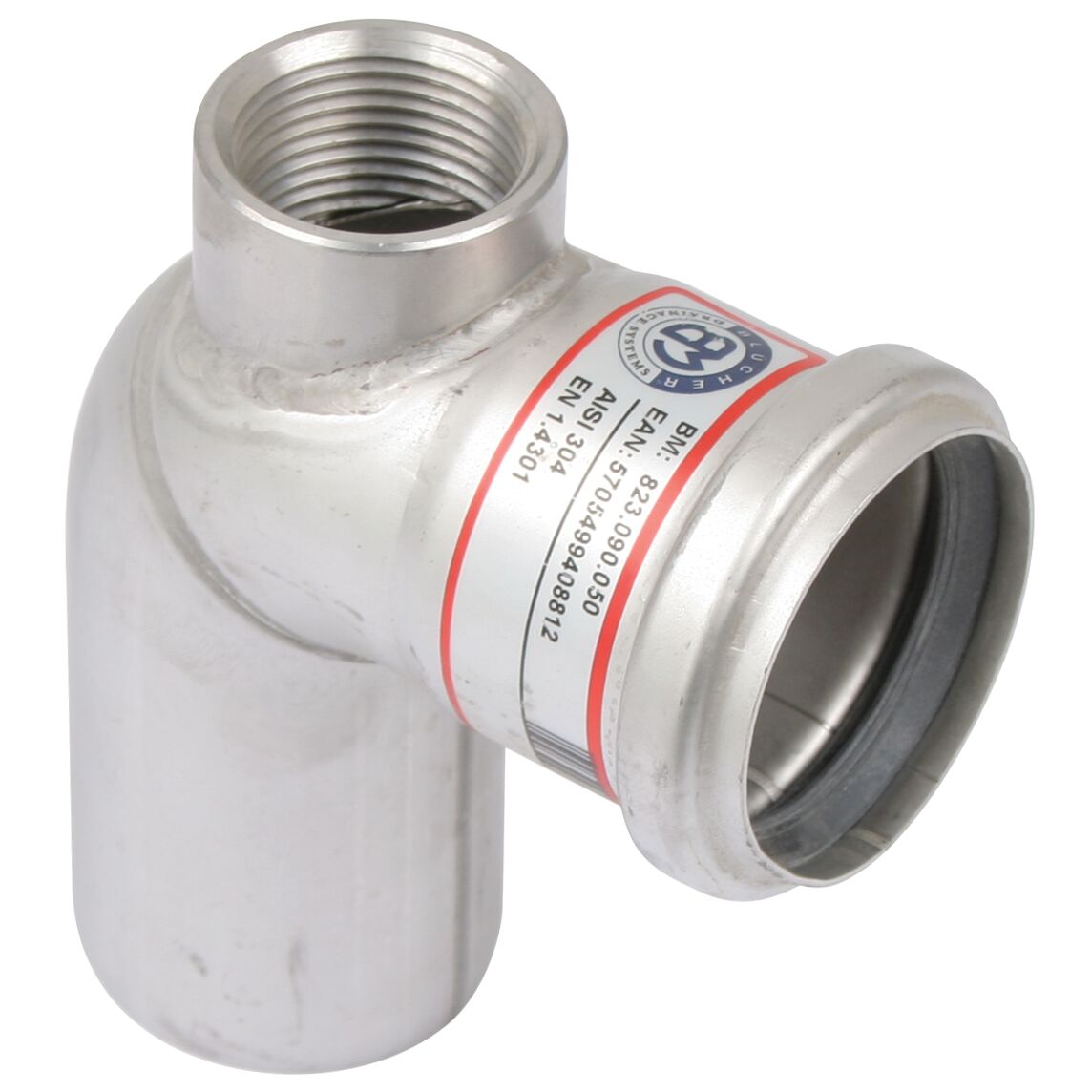

BEND 87.5° WITH ACCESS - (823.090.050)
×
![]()
Part Of the Series: Bend-87.5-BSP connection
Type no.: 823.090.050
EAN no.: 5705499408812
NRF no.: 2172325
BEND 87.5° WITH ACCESS
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301

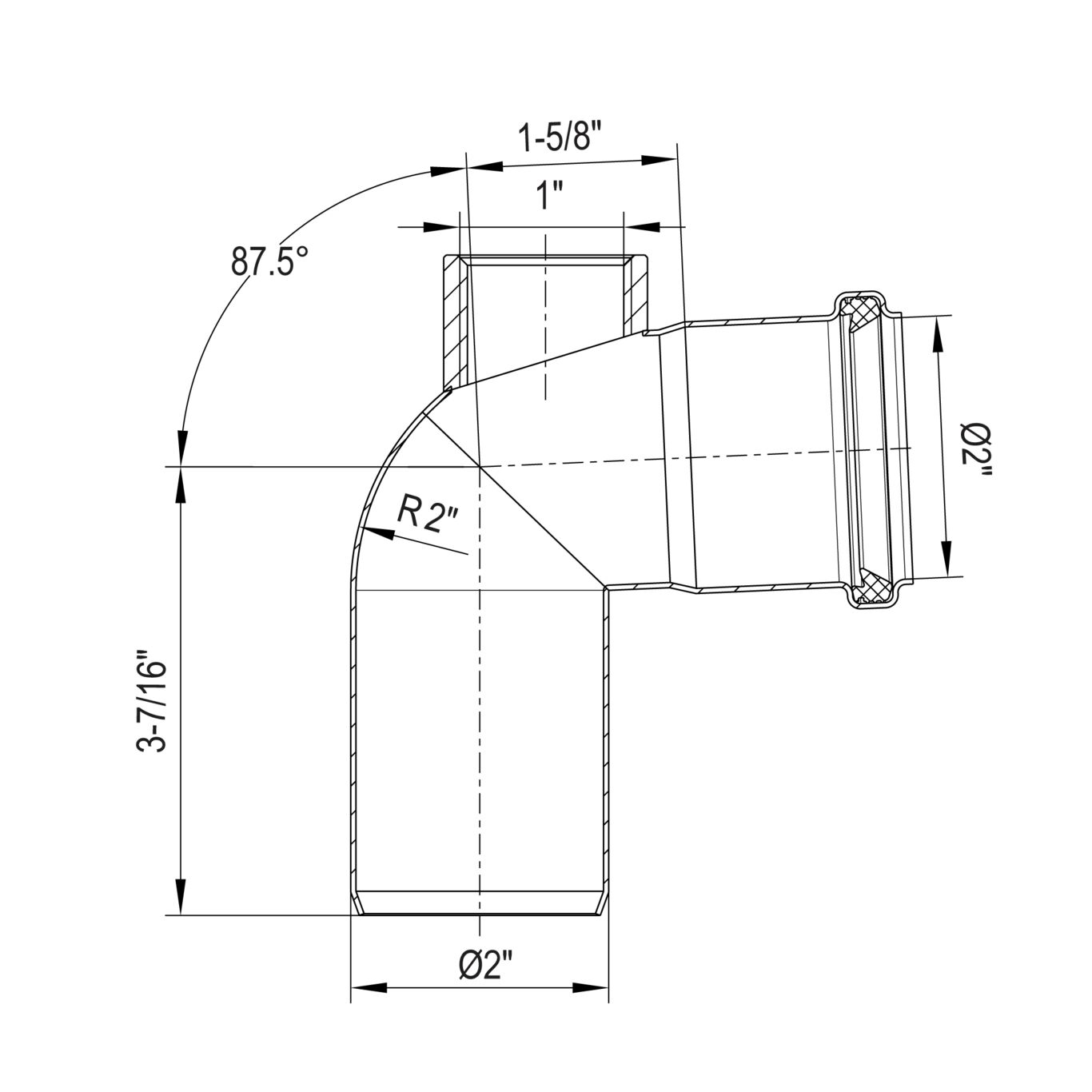

| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.26 |
| Weight (lbs) | 0.57 |
-
Approval Information
For approval information, please refer to the below approval certificates.
