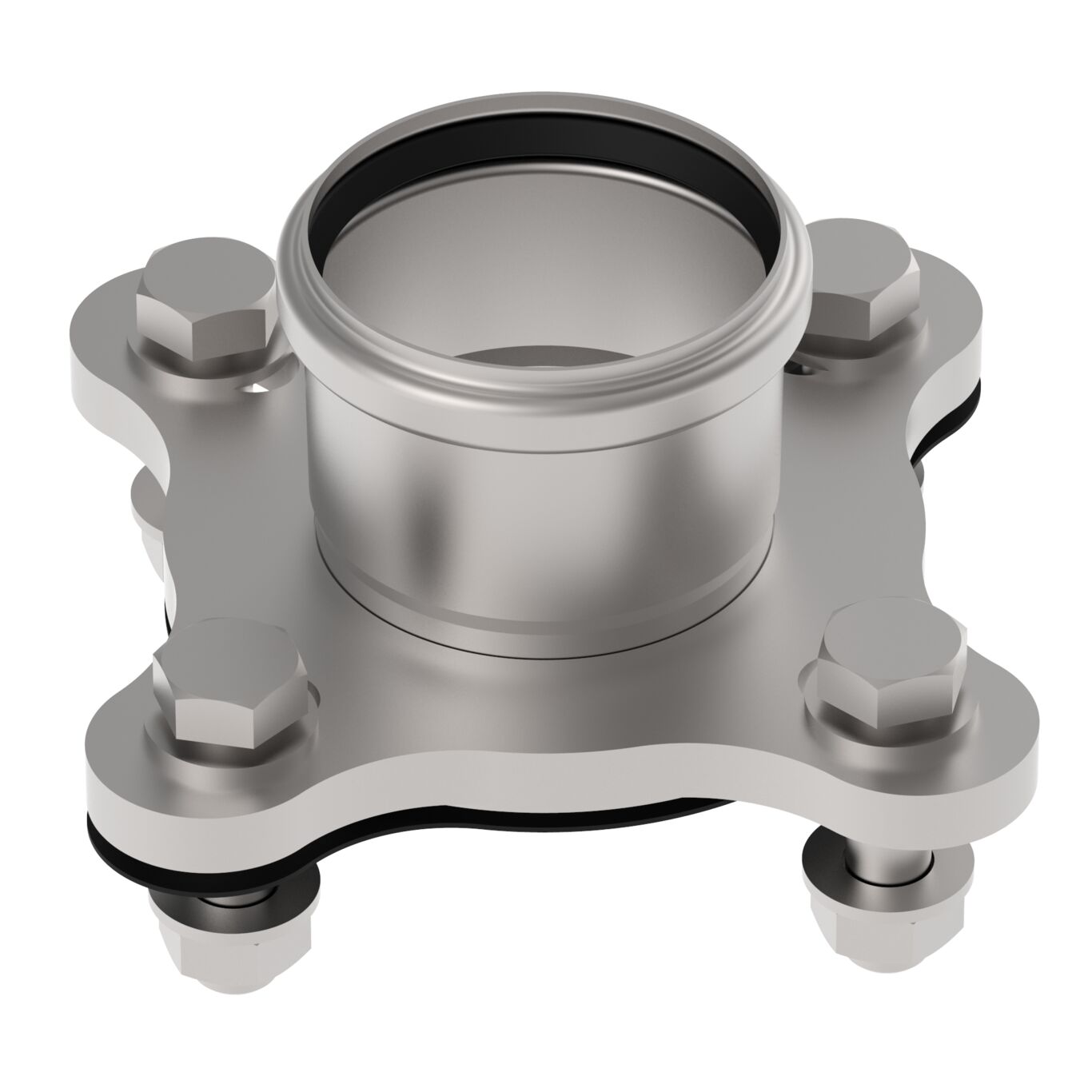

UNIVERSAL FLANGE WITH SOCKET - (854.500.075 S)
×
![]()
Part Of the Series: Adaptor-flange-universal
Type no.: 854.500.075 S
EAN no.: 5705499138894
NRF no.: 2172728
UNIVERSAL FLANGE WITH SOCKET
-Diameter: Ø75mm
-Equivalent to ANSI 3" / JIS65-80 5K-10K / DIN DN65-80 PN6-16
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 81 |
| Number of Bolts | 4 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 1.49 |
| Weight (lbs) | 3.28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
