BEND 30° - (820.030.160)
×
![]()
Part Of the Series: Bend-30
Type no.: 820.030.160
EAN no.: 5705499401288
VVS no.: 160207160
RSK no.: 1550096
NRF no.: 2170048
LVI no.: 0240635

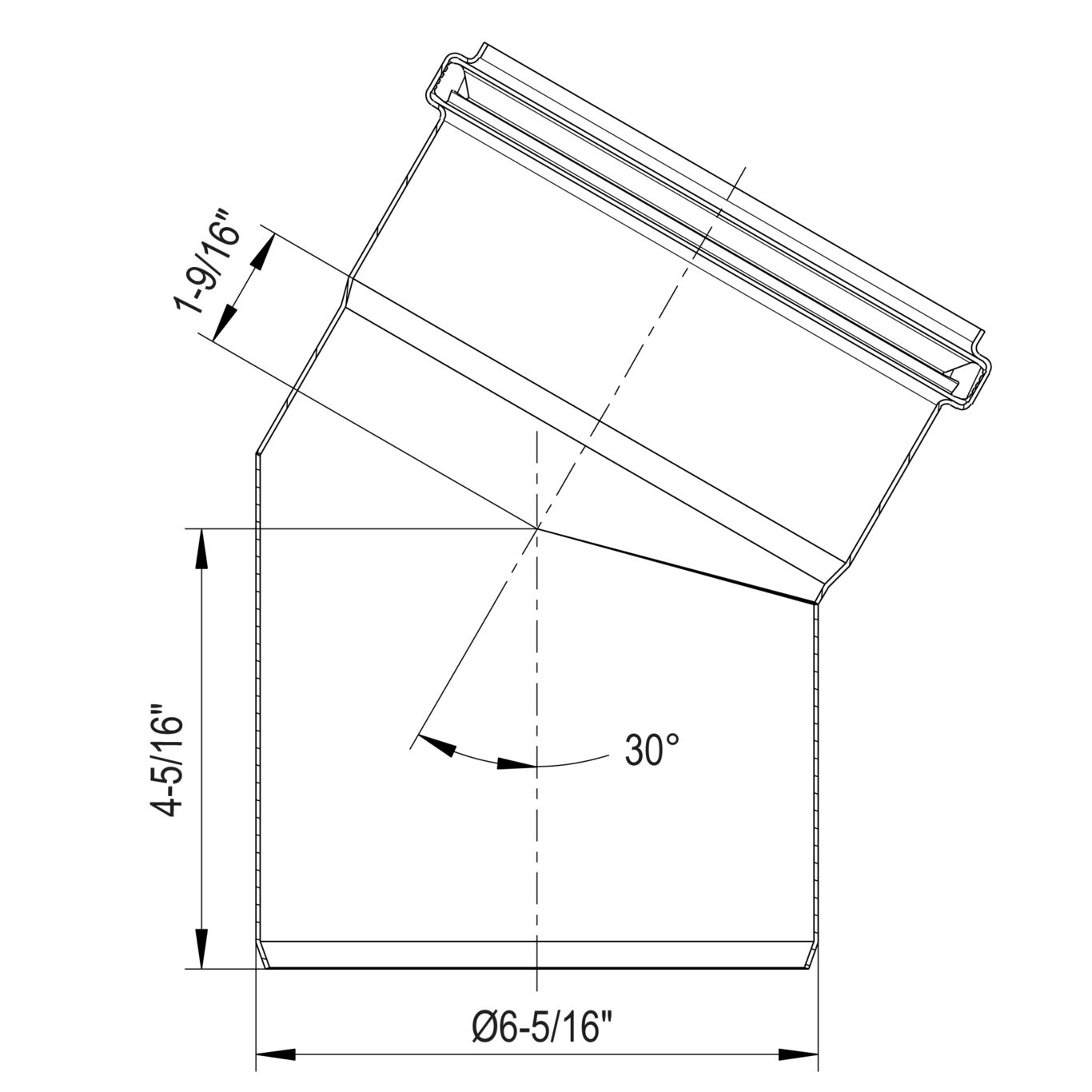

BEND 30°
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 30 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 1.19 |
| Weight (lbs) | 2.62 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
HACCP Food Safety Programme - Europe
