BEND 45° - (820.045.050)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.050
EAN no.: 5705499401301
VVS no.: 160205050
RSK no.: 1550089
NRF no.: 2170054
LVI no.: 0240682

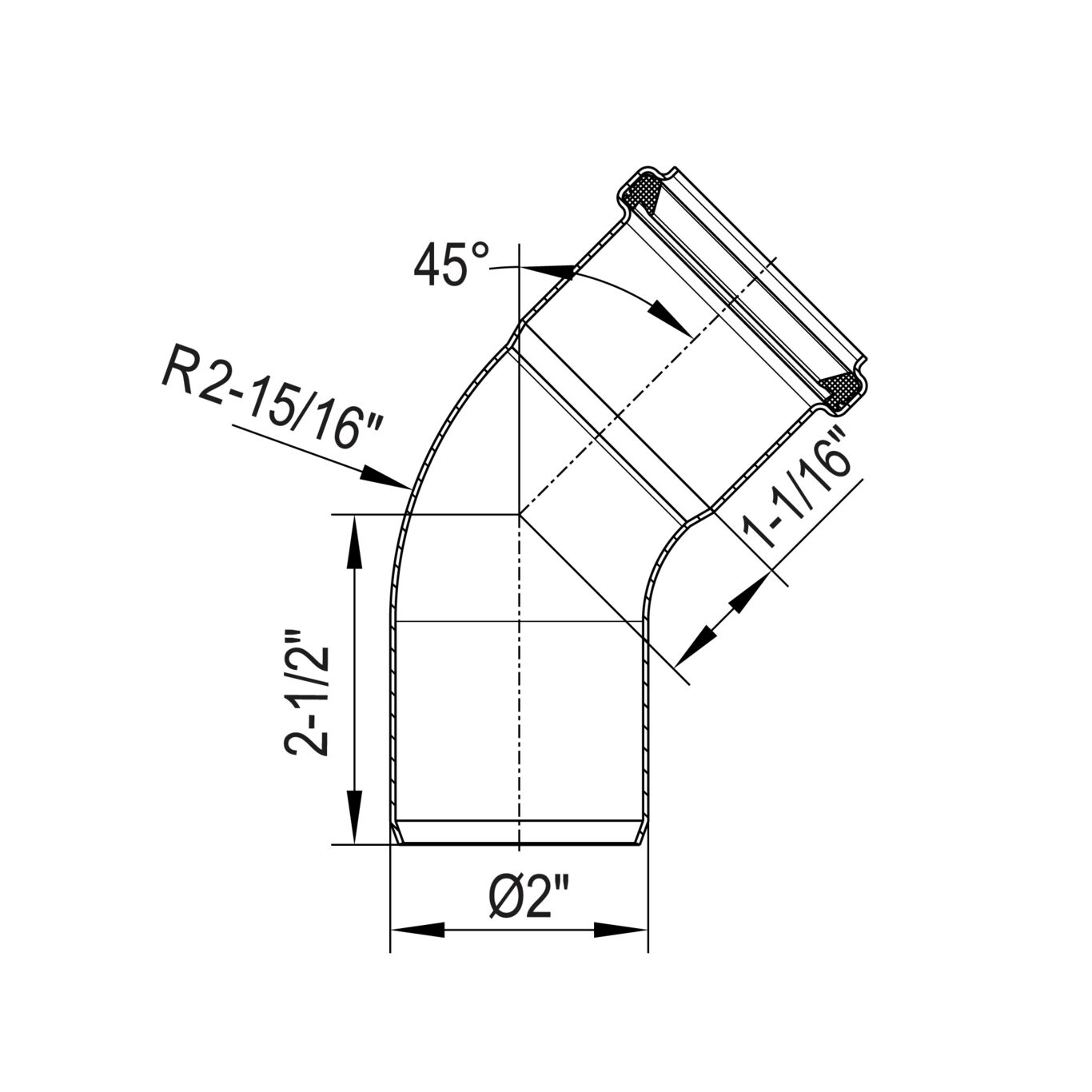

BEND 45°
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.17 |
| Weight (lbs) | 0.37 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products ABS - LD1716353-PDA Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001
