BEND 45° - (820.045.160)
×
![]()
Part Of the Series: Bend-45
Type no.: 820.045.160
EAN no.: 5705499401363
VVS no.: 160205160
RSK no.: 1550092
NRF no.: 2170058
LVI no.: 0240685

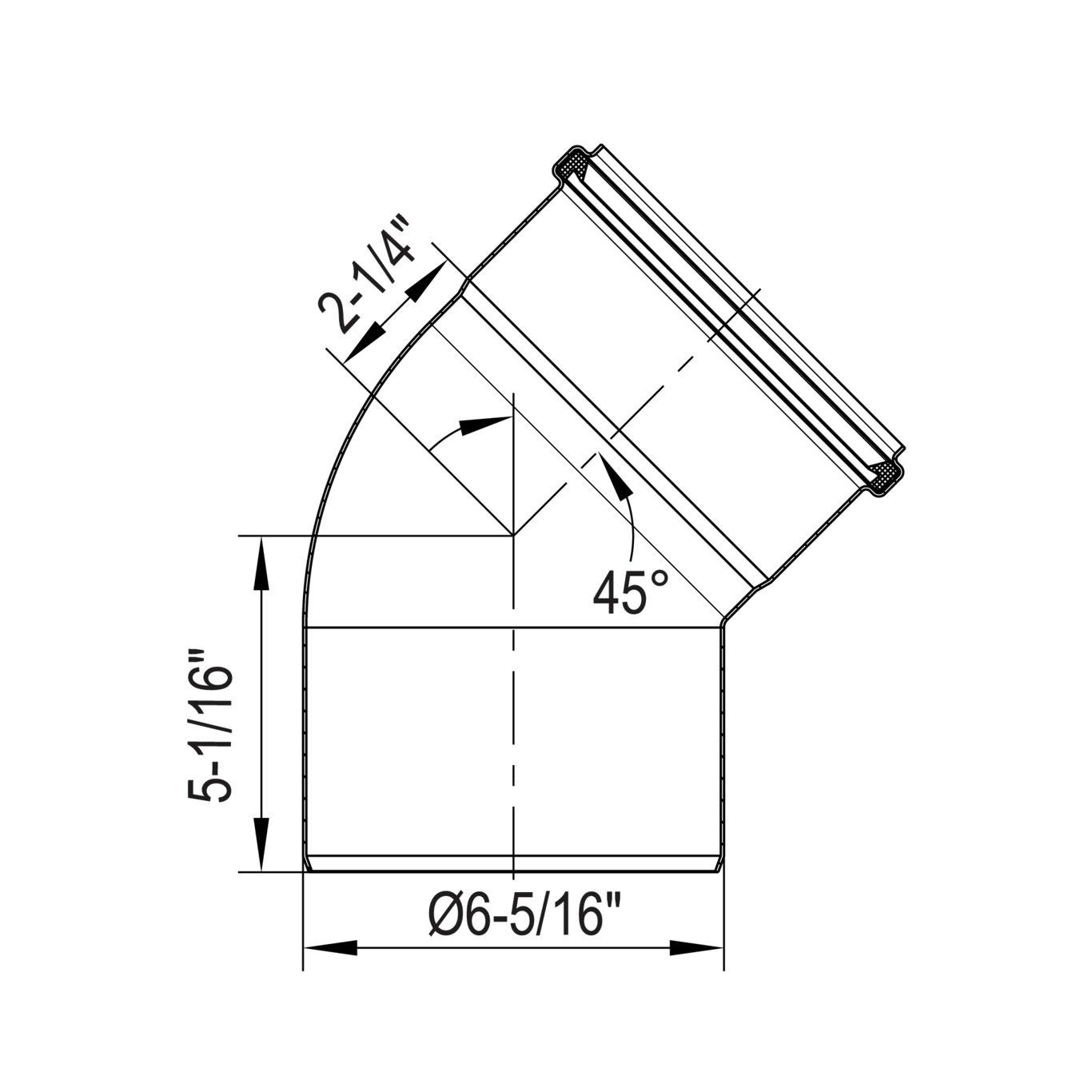

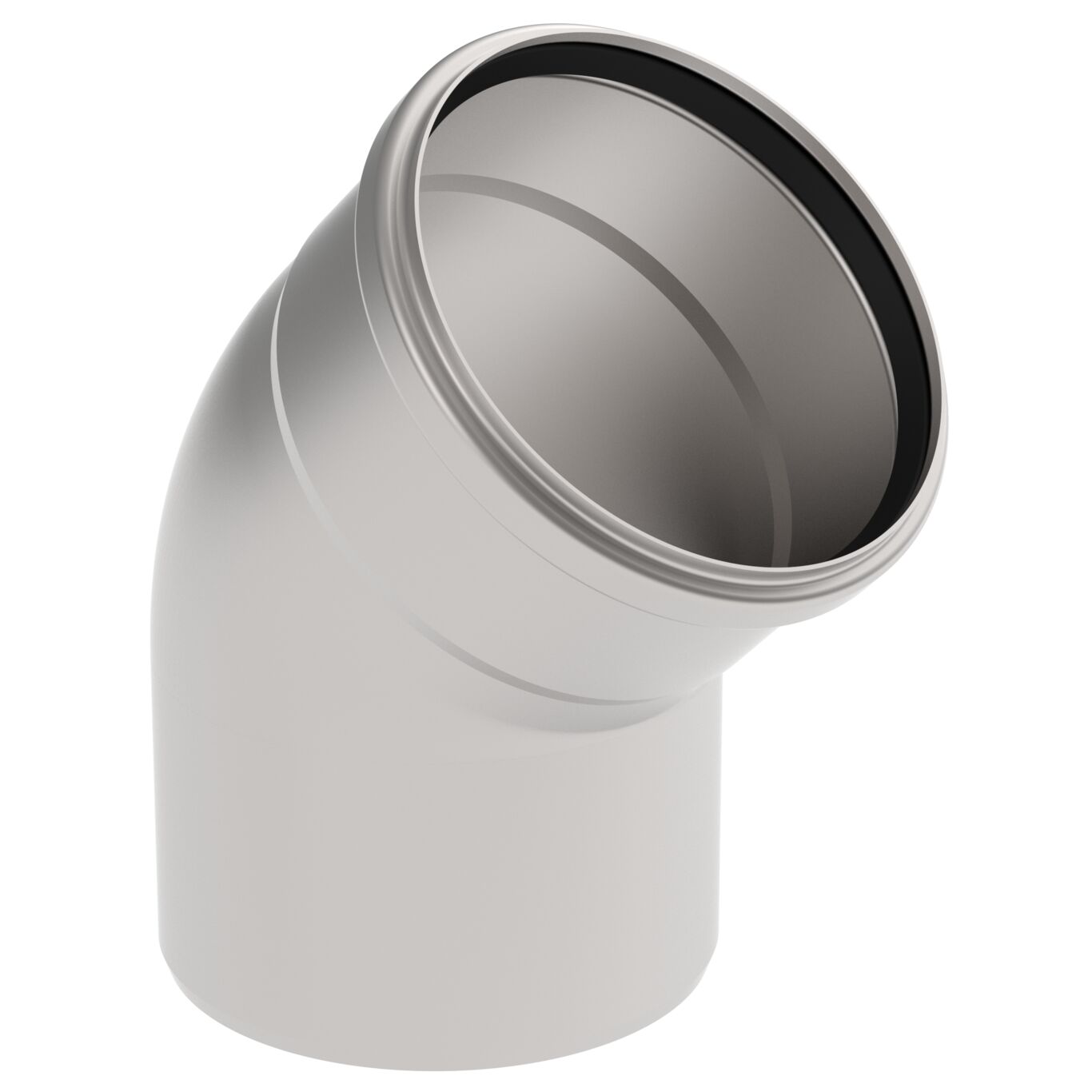

BEND 45°
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 1.55 |
| Weight (lbs) | 3.42 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA
