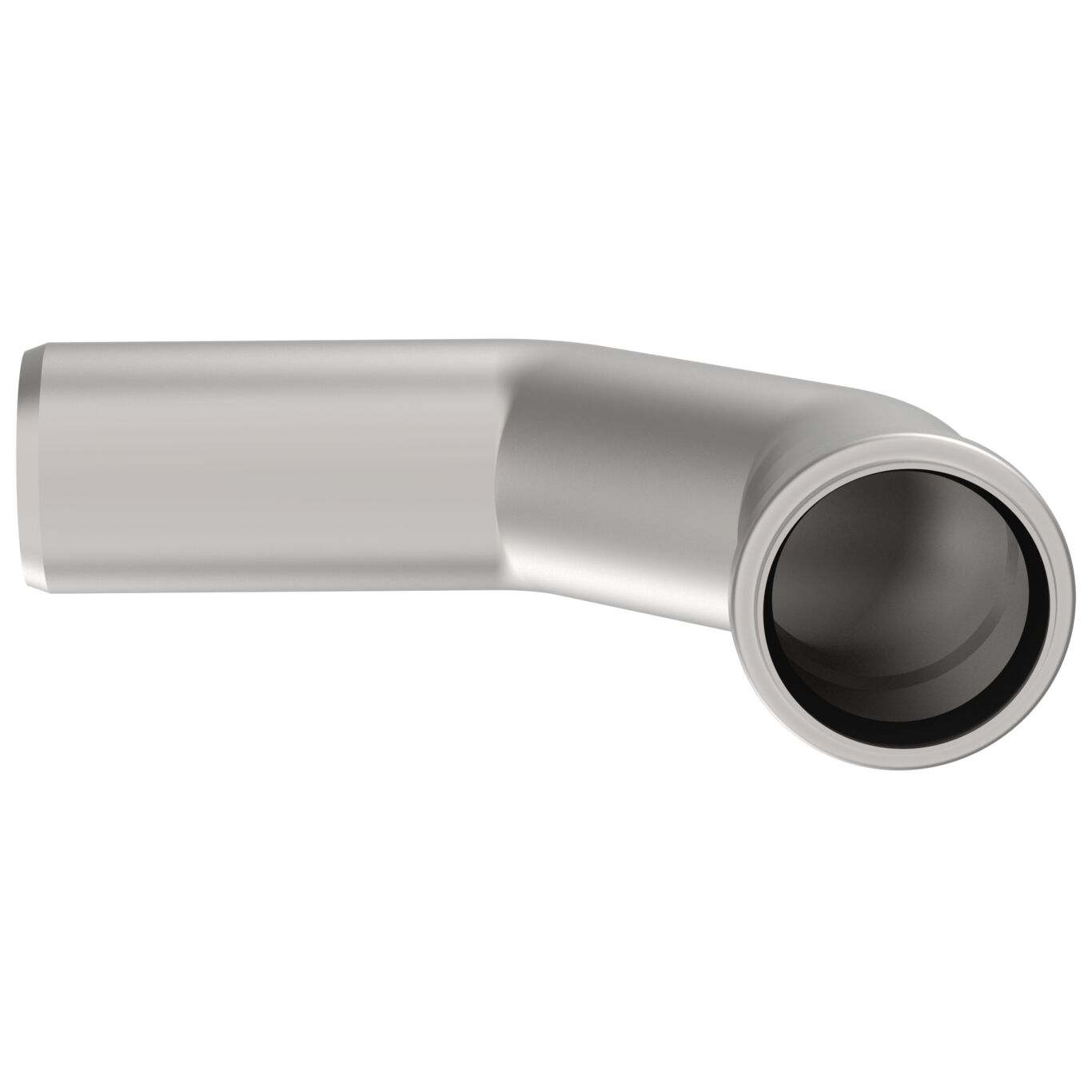

BEND, LONG 87.5°, 164 MM - (821.164.050 S)
Part Of the Series: Bend-87.5-long radius
Type no.: 821.164.050 S
EAN no.: 5705499124057
NRF no.: 2172544

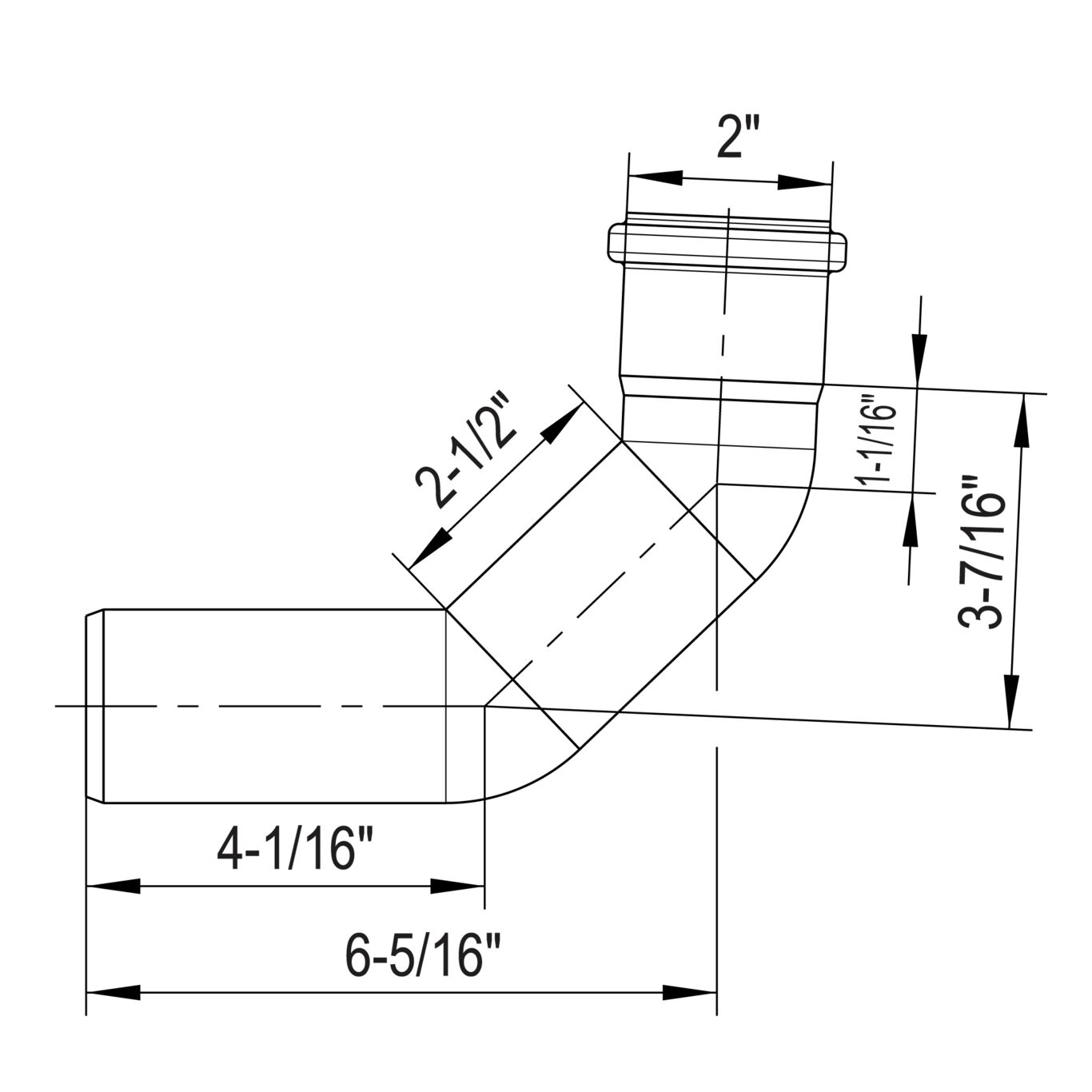

BEND, LONG 87.5°, 164 MM
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 87 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet dia. (mm) | 50 |
Outlet Diameter (Inch) | 2 |
Weight (kg) | 0.32 |
Weight (lbs) | 0.71 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
HACCP Food Safety Programme - Europe PL - Hygienic Certificate - All Products RU - 0212322 Pipes-21 RS - 22.10018.262 BLÜCHER EuroPipe and Fittings Type approval Achilles Certificate - 46702-22 Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings
