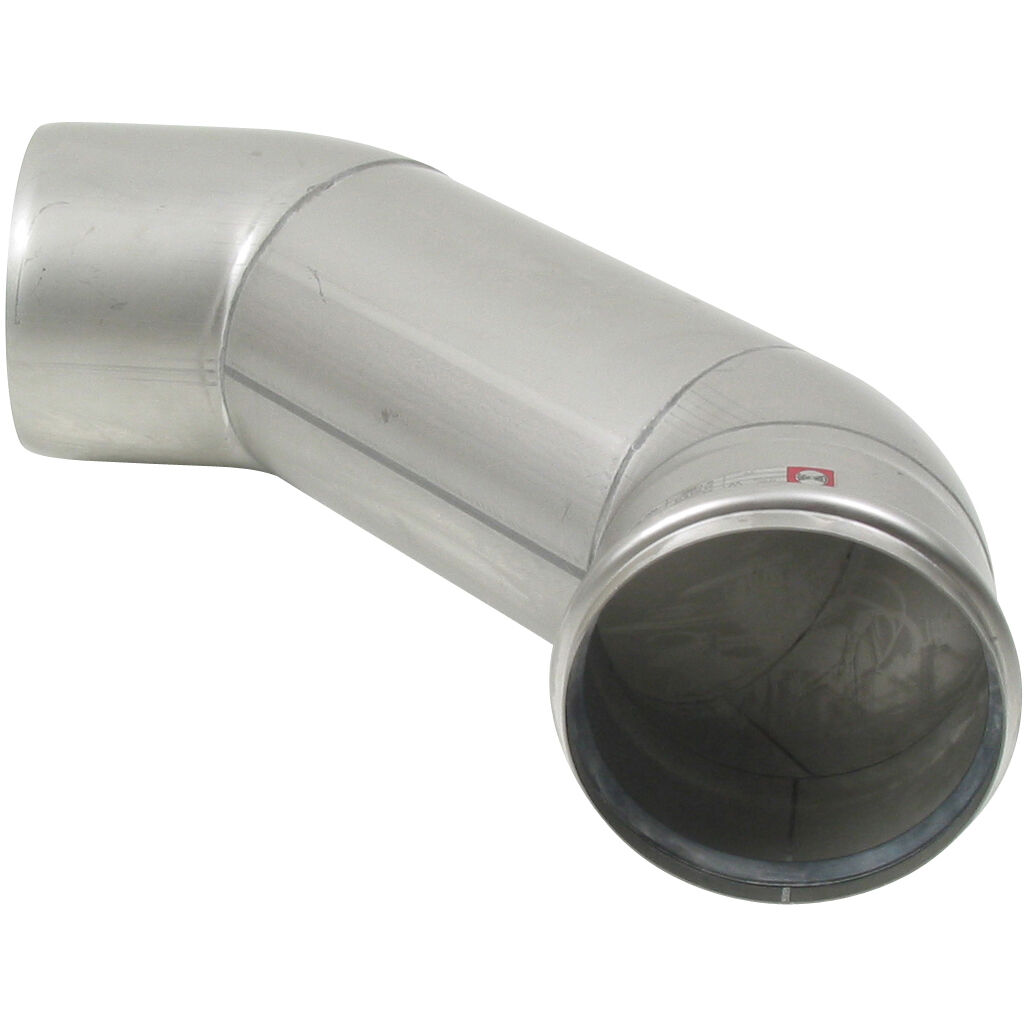

BEND, LONG 87.5°, 250 MM - (821.090.160)
×
![]()
Part Of the Series: Bend-87.5-long radius
Type no.: 821.090.160
EAN no.: 5705499401486
VVS no.: 160211160
RSK no.: 1550084
NRF no.: 2172321
LVI no.: 0240855

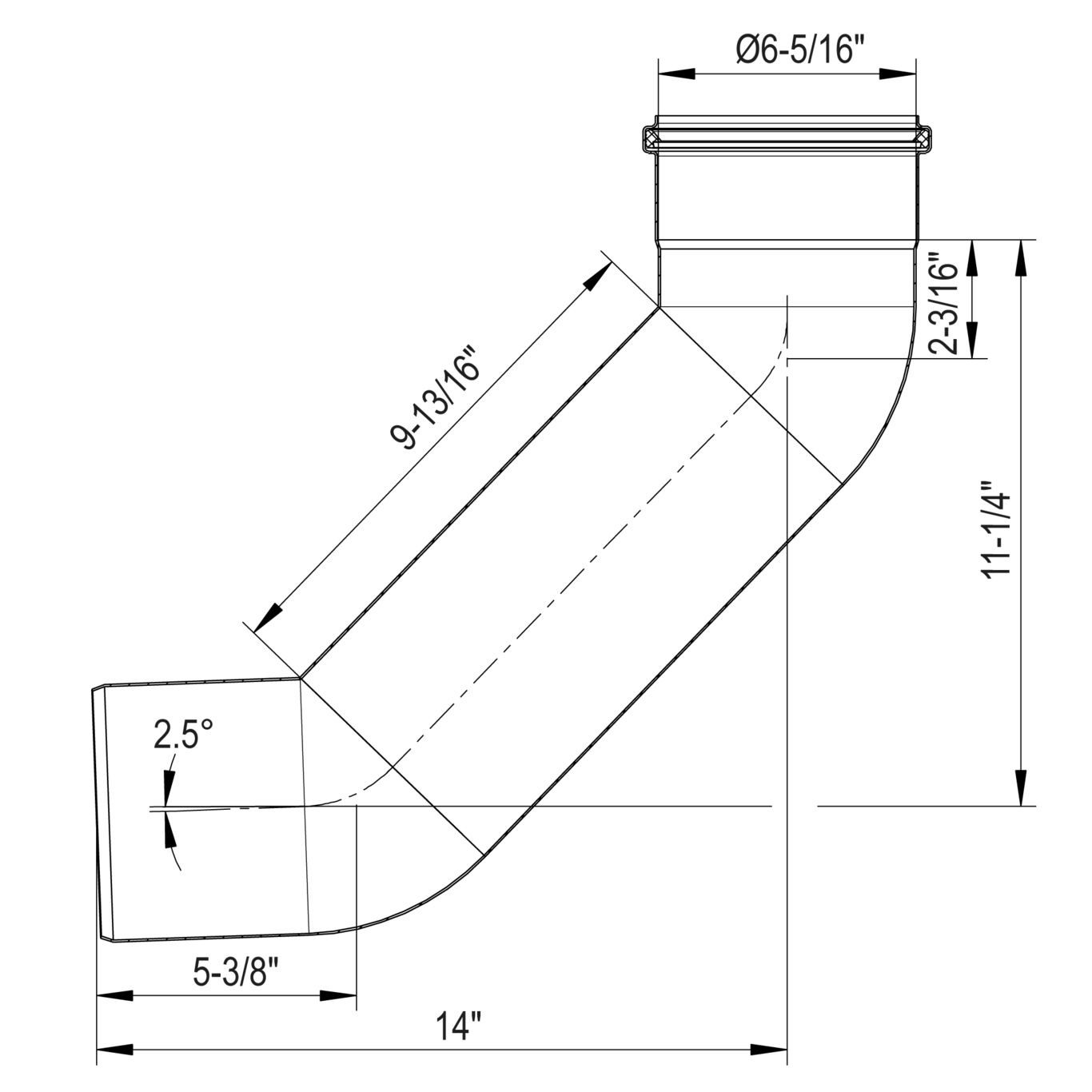

BEND, LONG 87.5°, 250 MM
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 285 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 3.25 |
| Weight (lbs) | 7.17 |
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
DK - VA 2.12/19350
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe PL - Hygienic Certificate - All Products ABS - LD1716353-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings Achilles Certificate - 46702-22 Lloyds Register LR22419510TA MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001
