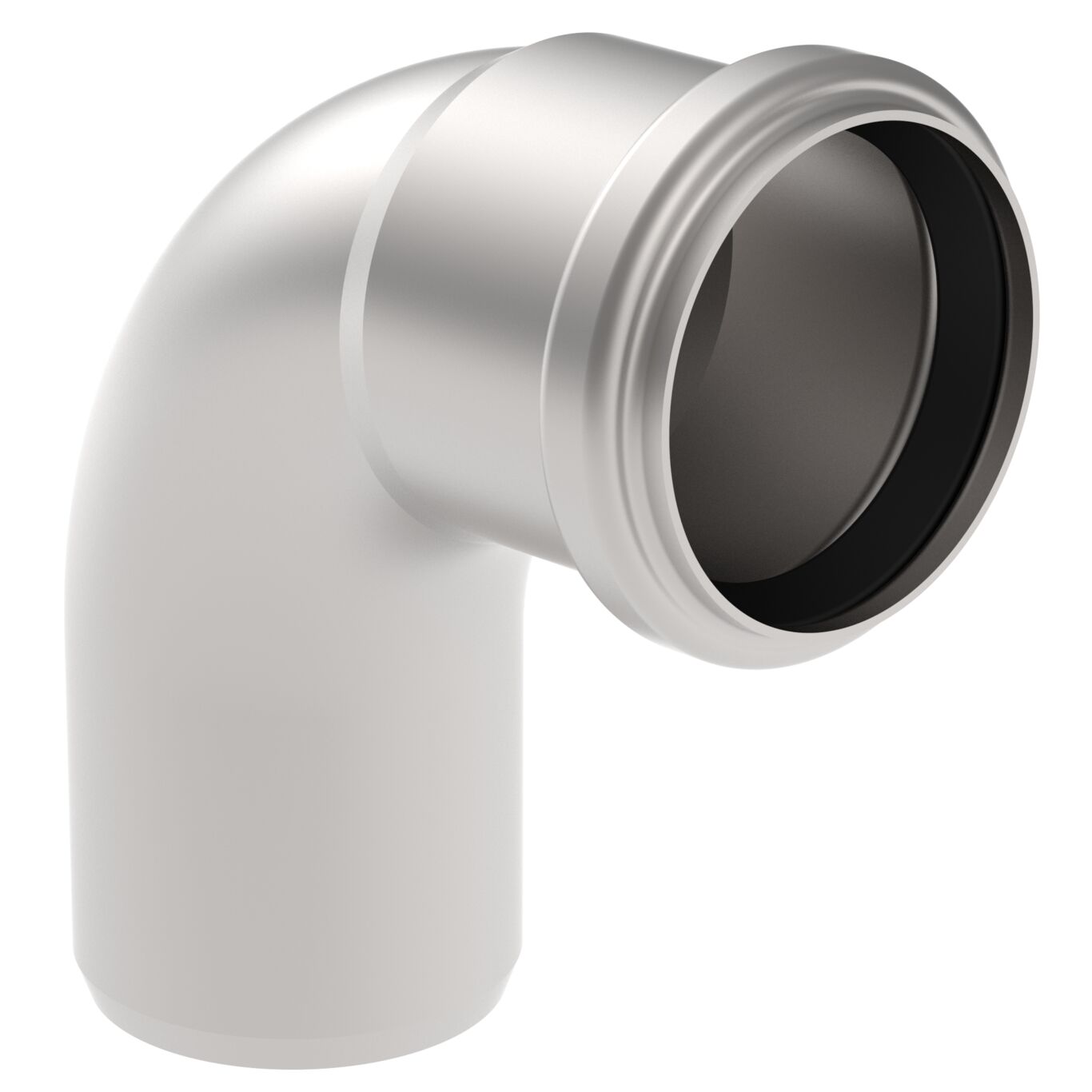

BEND 87.5° - (820.090.050)
×
![]()
Part Of the Series: Bend-87.5
Type no.: 820.090.050
EAN no.: 5705499401387
VVS no.: 160201050
RSK no.: 1550085
NRF no.: 2170064
LVI no.: 0240832

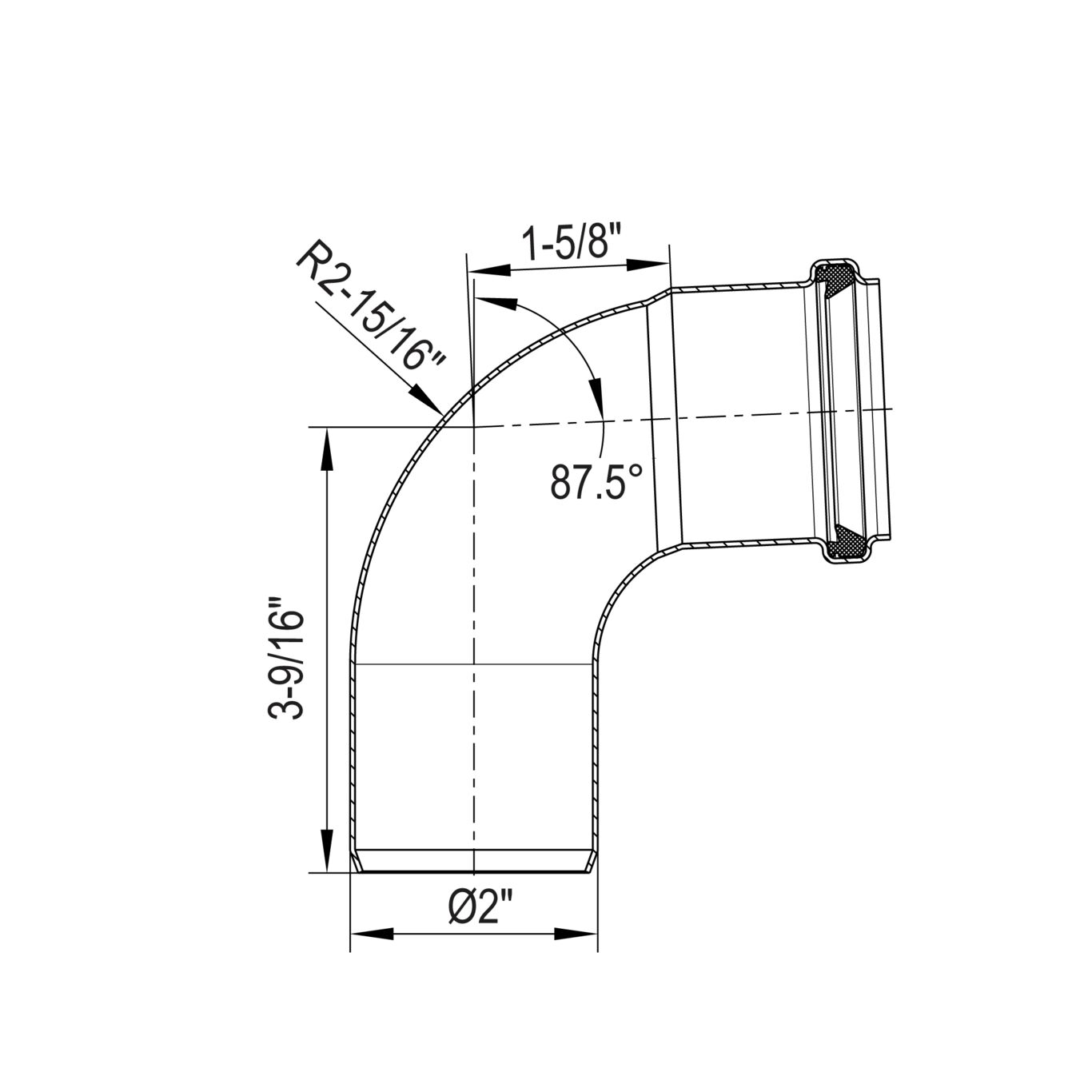

BEND 87.5°
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.21 |
| Weight (lbs) | 0.46 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
