OBLIQUE BRANCH 45° - (838.050.050)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.050.050
EAN no.: 5705499402353
VVS no.: 160224050
RSK no.: 1550109
NRF no.: 2170083
LVI no.: 0241153

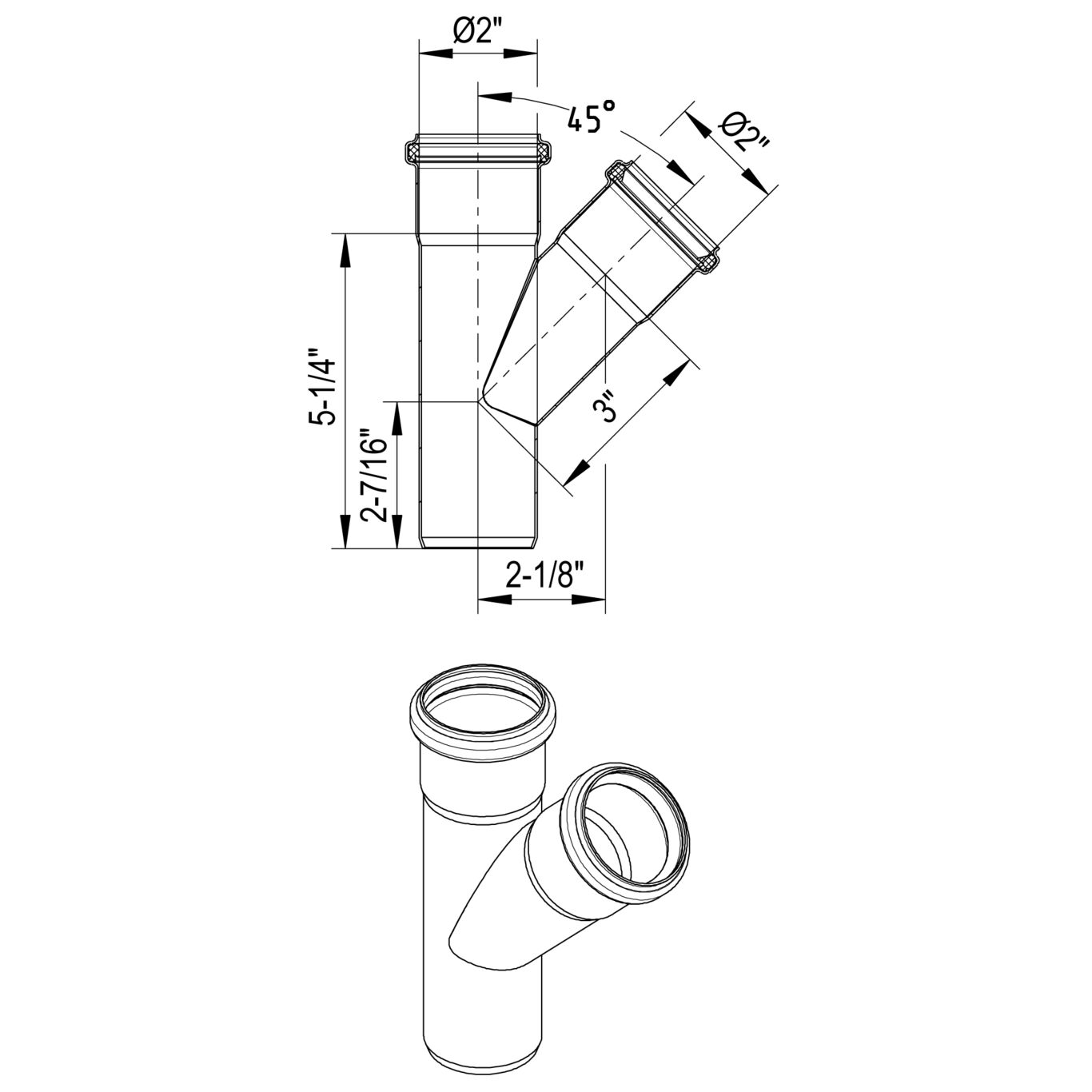

OBLIQUE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 133 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.32 |
| Weight (lbs) | 0.71 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
