OBLIQUE BRANCH 45° - (838.075.075)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.075.075
EAN no.: 5705499402414
VVS no.: 160224075
RSK no.: 1550110
NRF no.: 2170089
LVI no.: 0241156

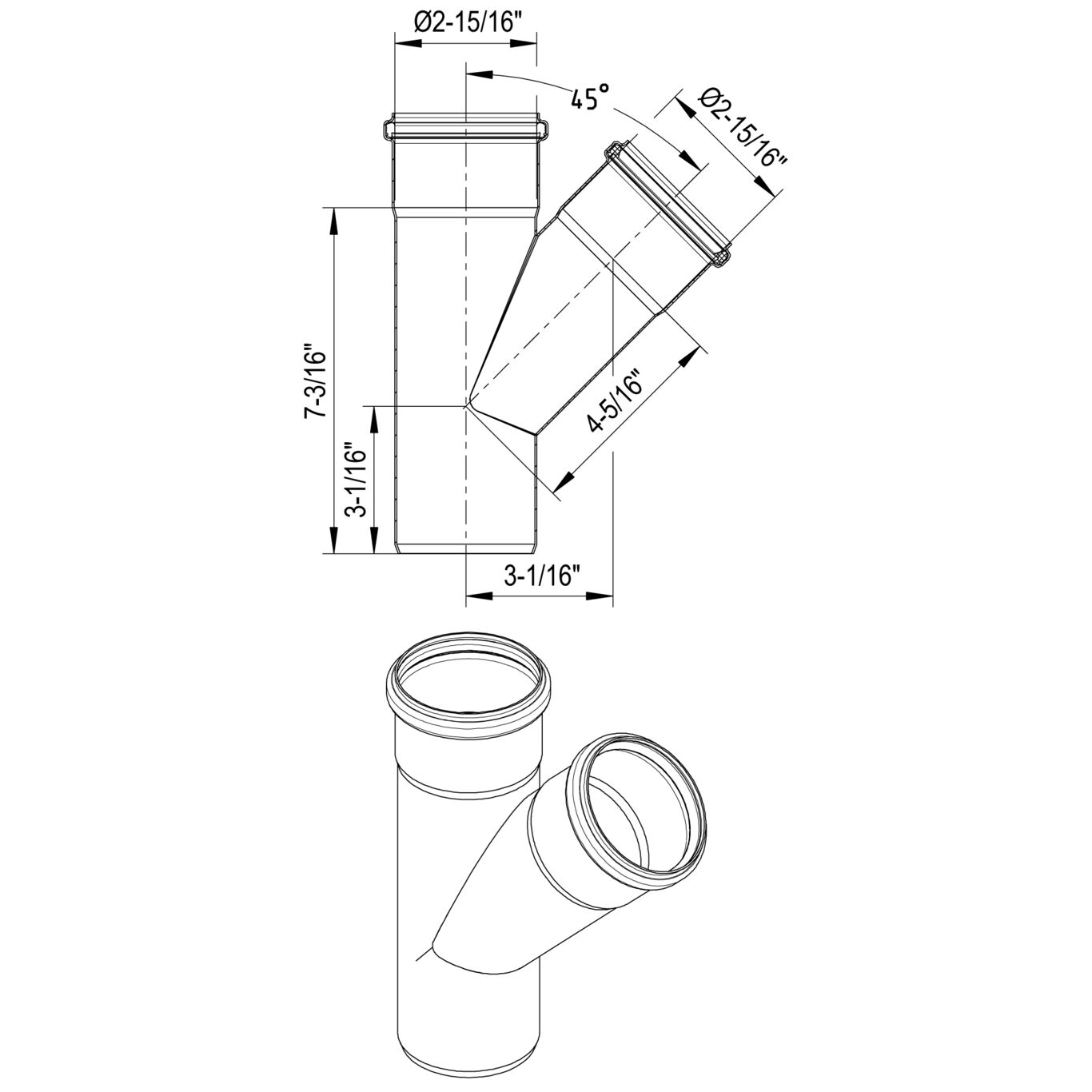

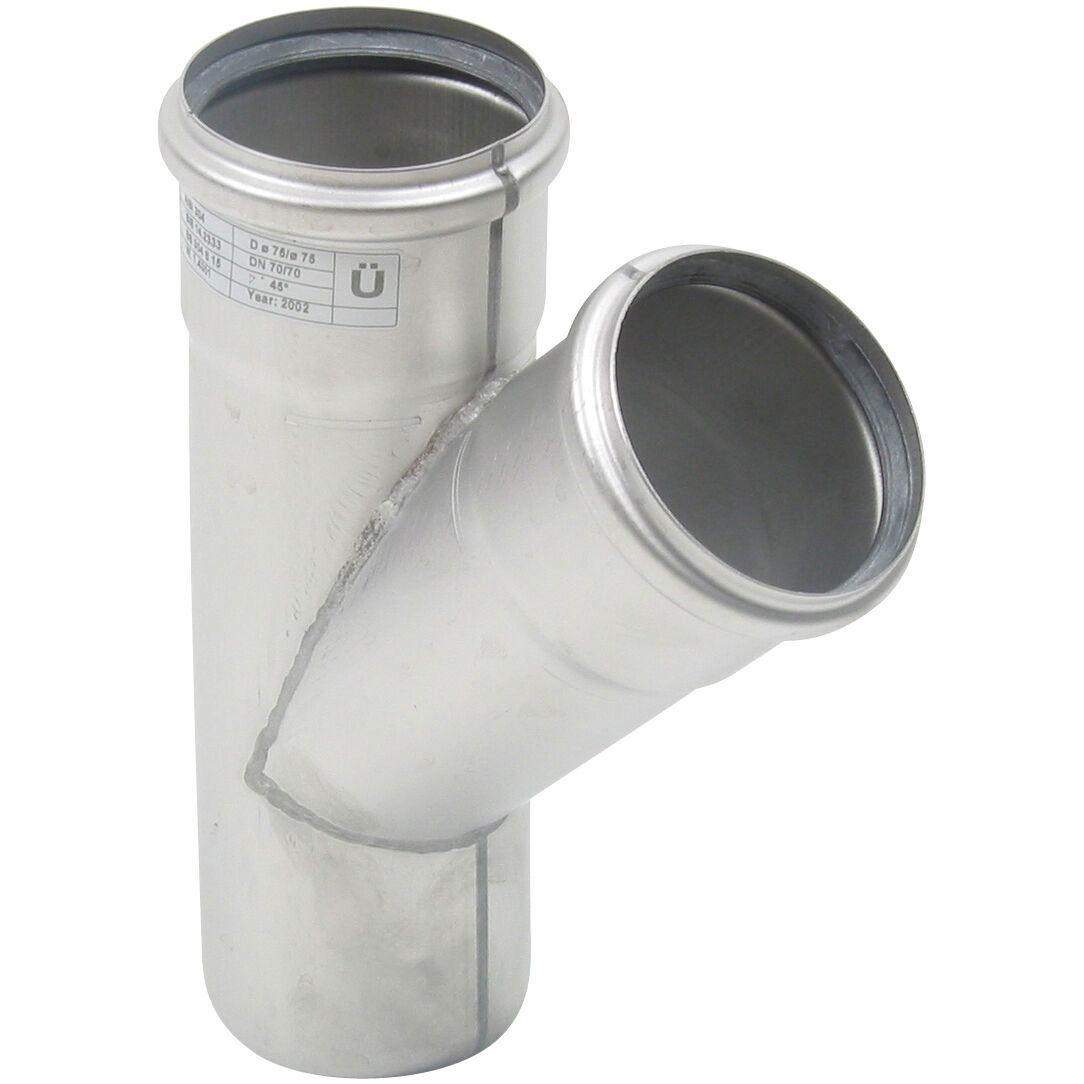

OBLIQUE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 183 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.64 |
| Weight (lbs) | 1.41 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA ABS - LD1716353-PDA
