OBLIQUE BRANCH 45° - (838.075.110)
×
![]()
Part Of the Series: Branch-45
Type no.: 838.075.110
EAN no.: 5705499402438
VVS no.: 160224108
RSK no.: 1550114
NRF no.: 2170096
LVI no.: 0241159

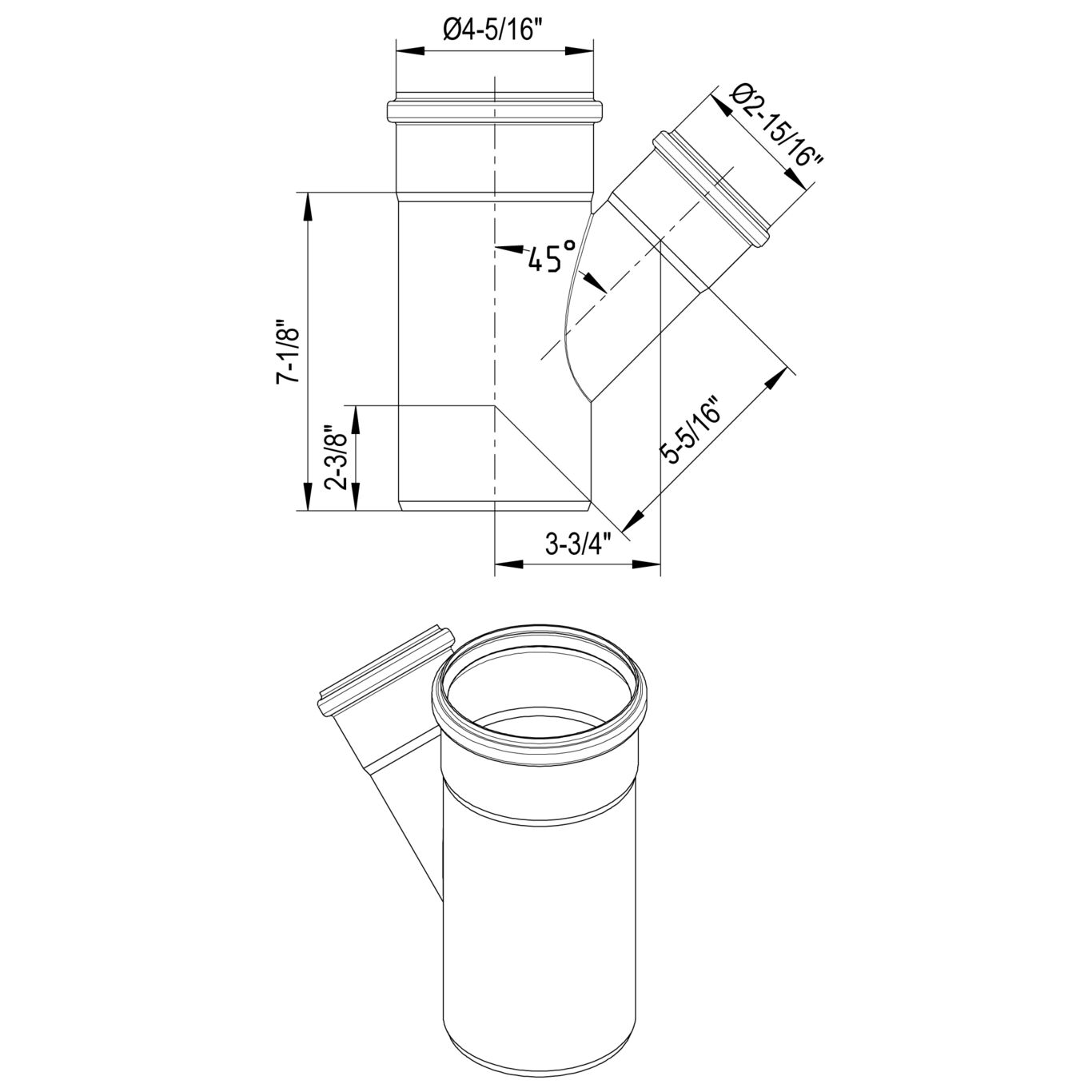

OBLIQUE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 181 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.88 |
| Weight (lbs) | 1.94 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
AUS - WMKT00204 - 24 Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001
