OBLIQUE BRANCH 45° - (838.075.125)
Part Of the Series: Branch-45
Type no.: 838.075.125
EAN no.: 5705499409314
VVS no.: 160224122
RSK no.: 1551533
NRF no.: 2170115
LVI no.: 0246020

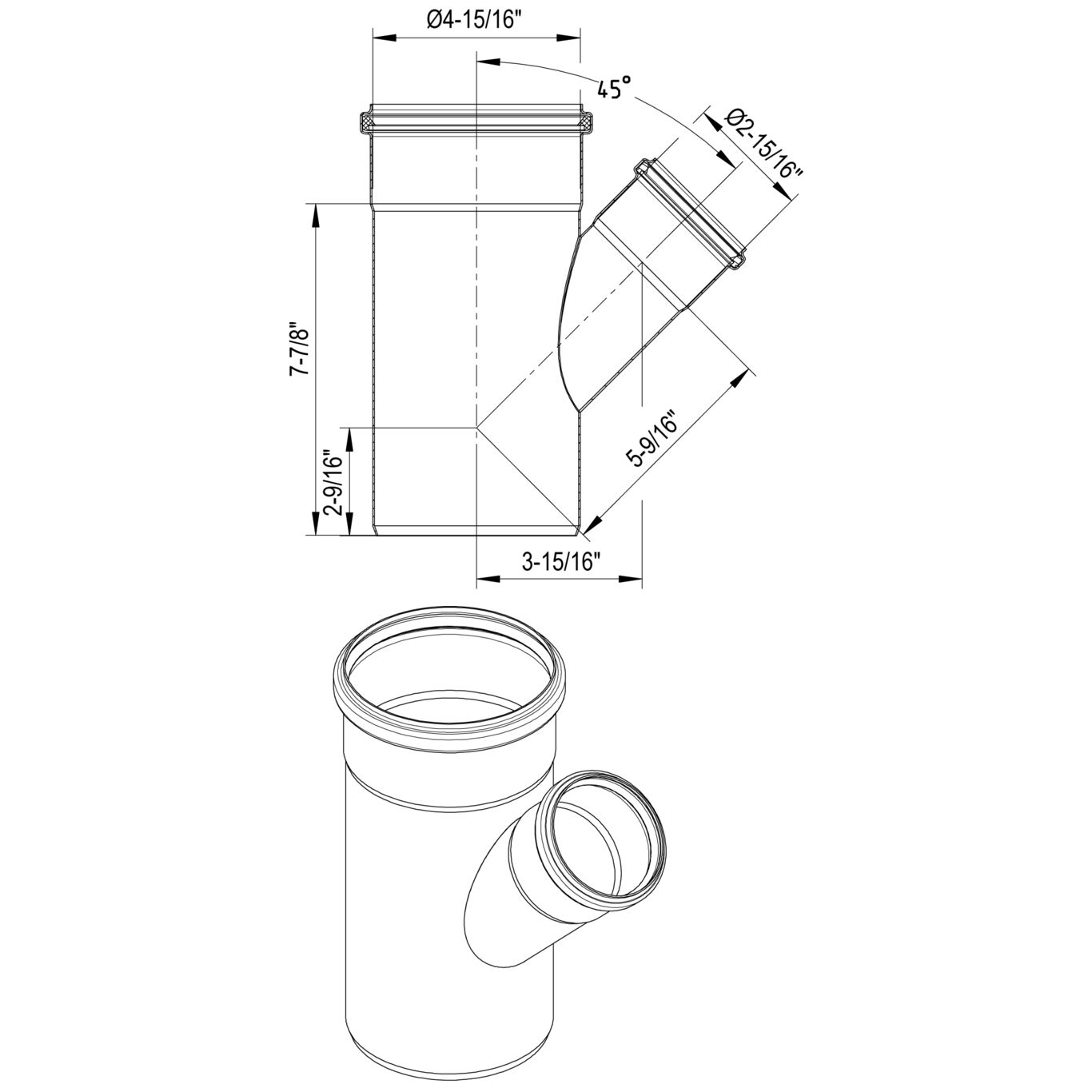

OBLIQUE BRANCH 45°
-Pipe diameter: Ø125mm. Branch diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Angle (°) | 45 |
Length (mm) | 200 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Outlet dia. (mm) | 125 |
Outlet Diameter (Inch) | 5 |
Weight (kg) | 1.32 |
Weight (lbs) | 2.91 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe US - IAPMO File No.3247-EuroPipe NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - LD1716353-PDA Lloyds Register LR22419510TA UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001
