BRANCH 87.5° - (830.050.082 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.050.082 S
EAN no.: 5705499411935
VVS no.: 160221380
NRF no.: 2172563

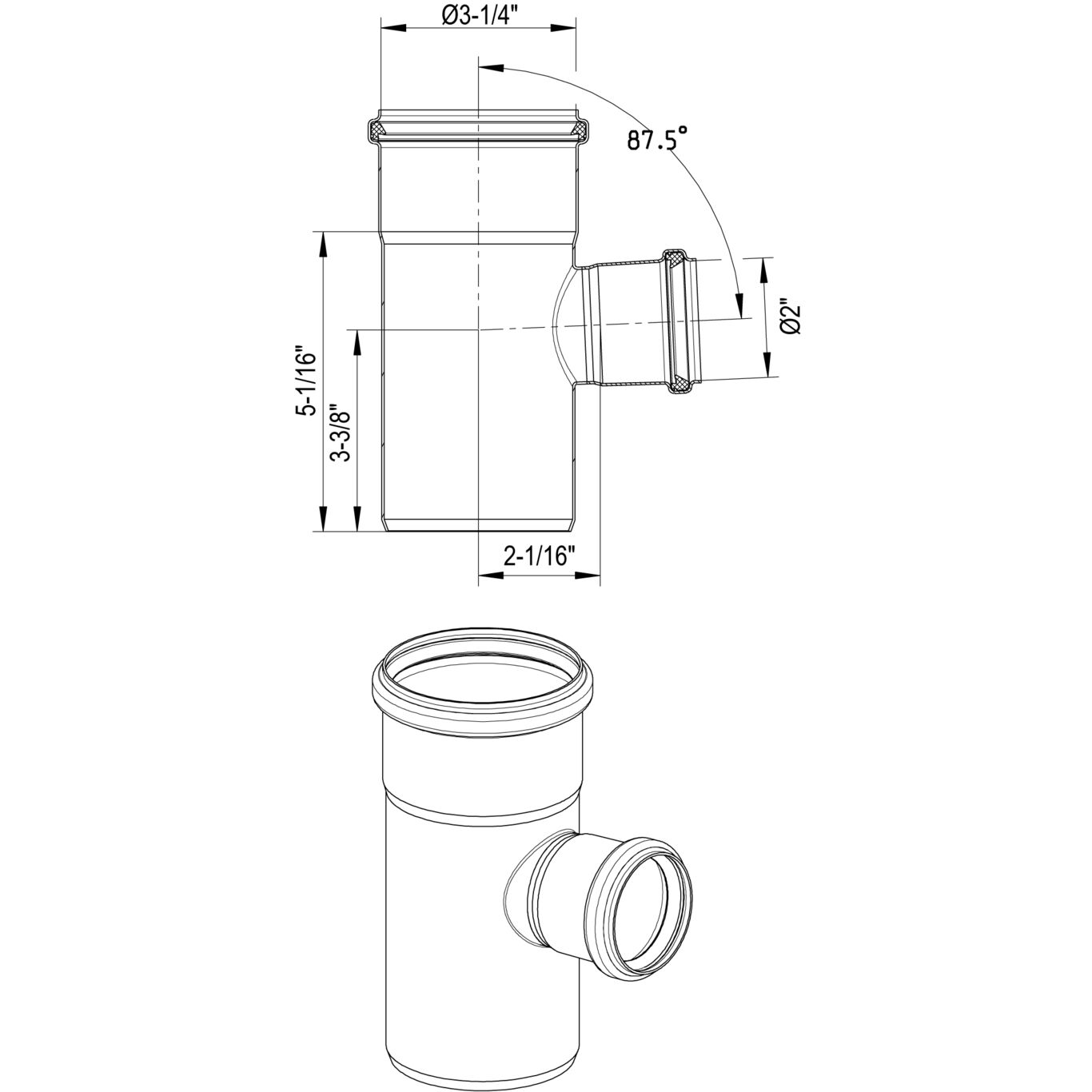

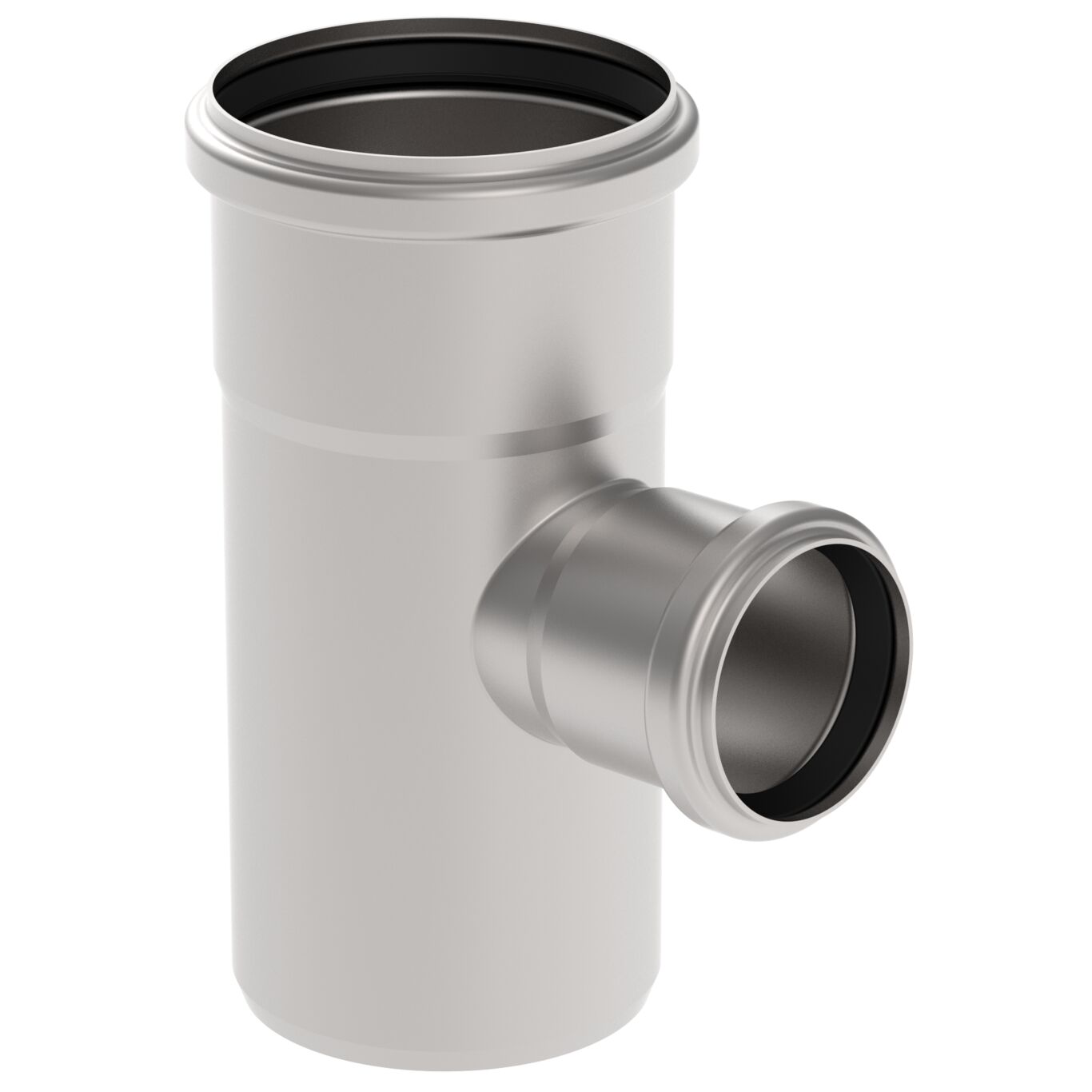

BRANCH 87.5°
-Pipe diameter: Ø82mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| All Renovation 82 Products | RS82 |
| Angle (°) | 87.5 |
| Length (mm) | 128 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 82 |
| Outlet Diameter (Inch) | 3-1/4 |
| Weight (kg) | 0.47 |
| Weight (lbs) | 1.04 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
