BRANCH 87.5° - (830.050.110 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.050.110 S
EAN no.: 5705499401653
VVS no.: 160221406
RSK no.: 1550306
NRF no.: 2170819
LVI no.: 0251958

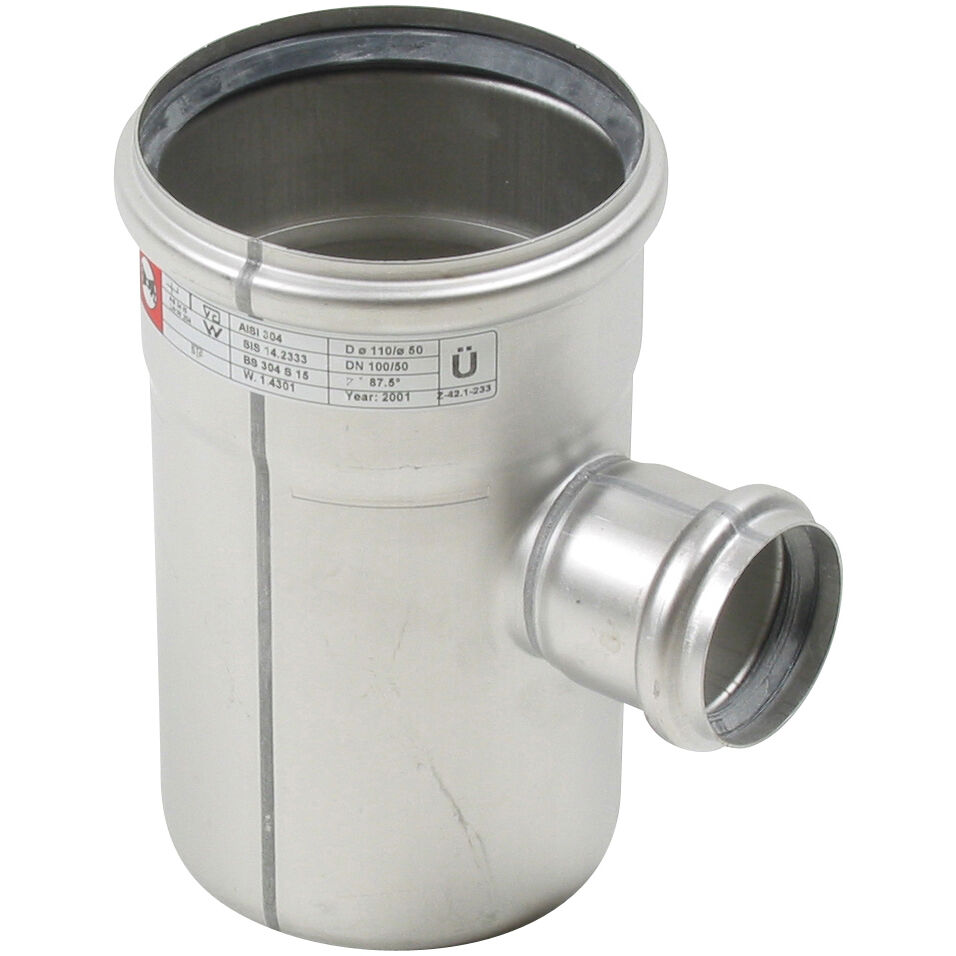

BRANCH 87.5°

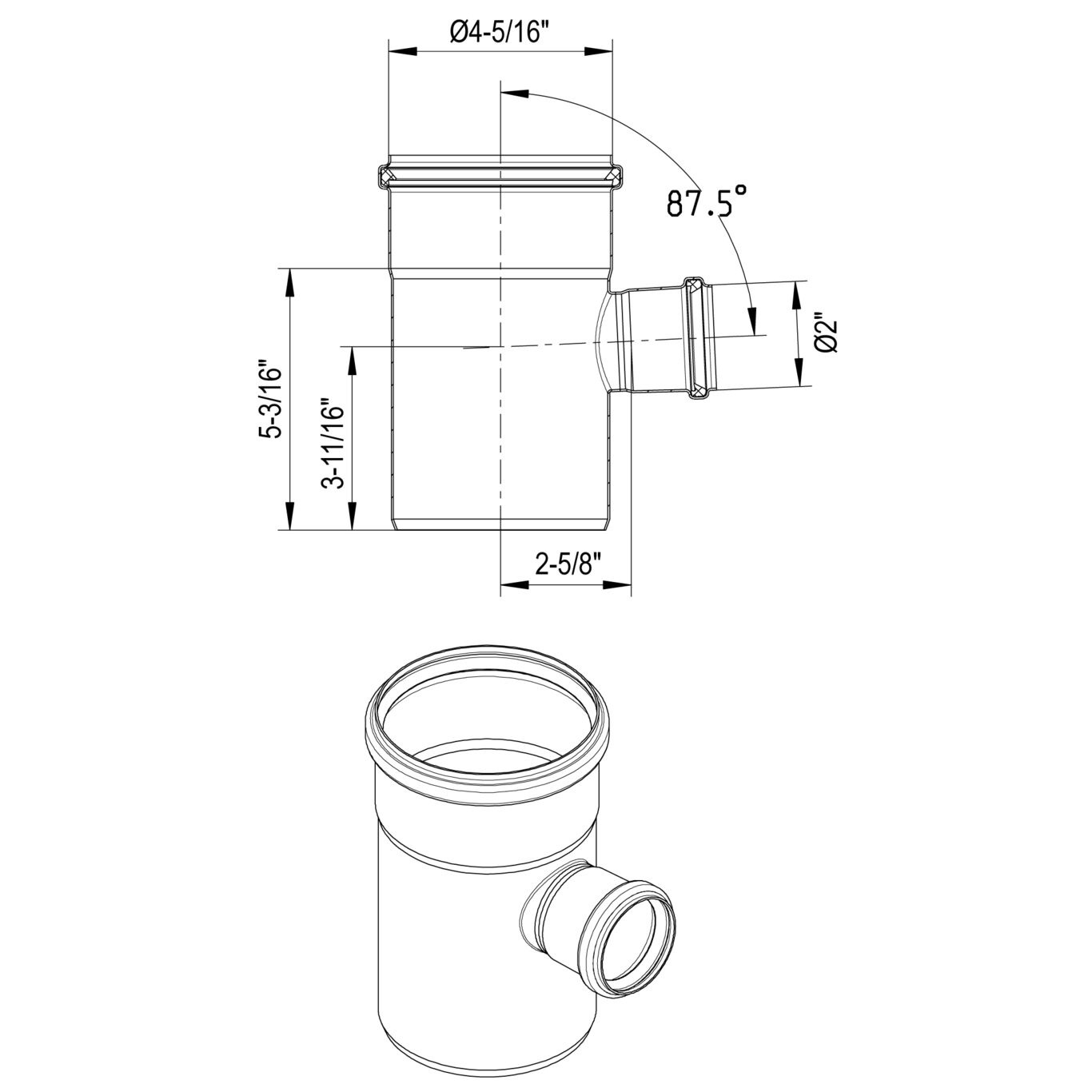

-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.64 |
| Weight (lbs) | 1.41 |
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a Lloyds Register LR22419510TA UR - 1055745 Product approval, EuroPipe and Drains ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes
