BRANCH 87.5° - (830.075.125 S)
×
![]()
Part Of the Series: Branch-87.5
Type no.: 830.075.125 S
EAN no.: 5705499408959
VVS no.: 160221422
RSK no.: 1551172
NRF no.: 2170825
LVI no.: 0256023

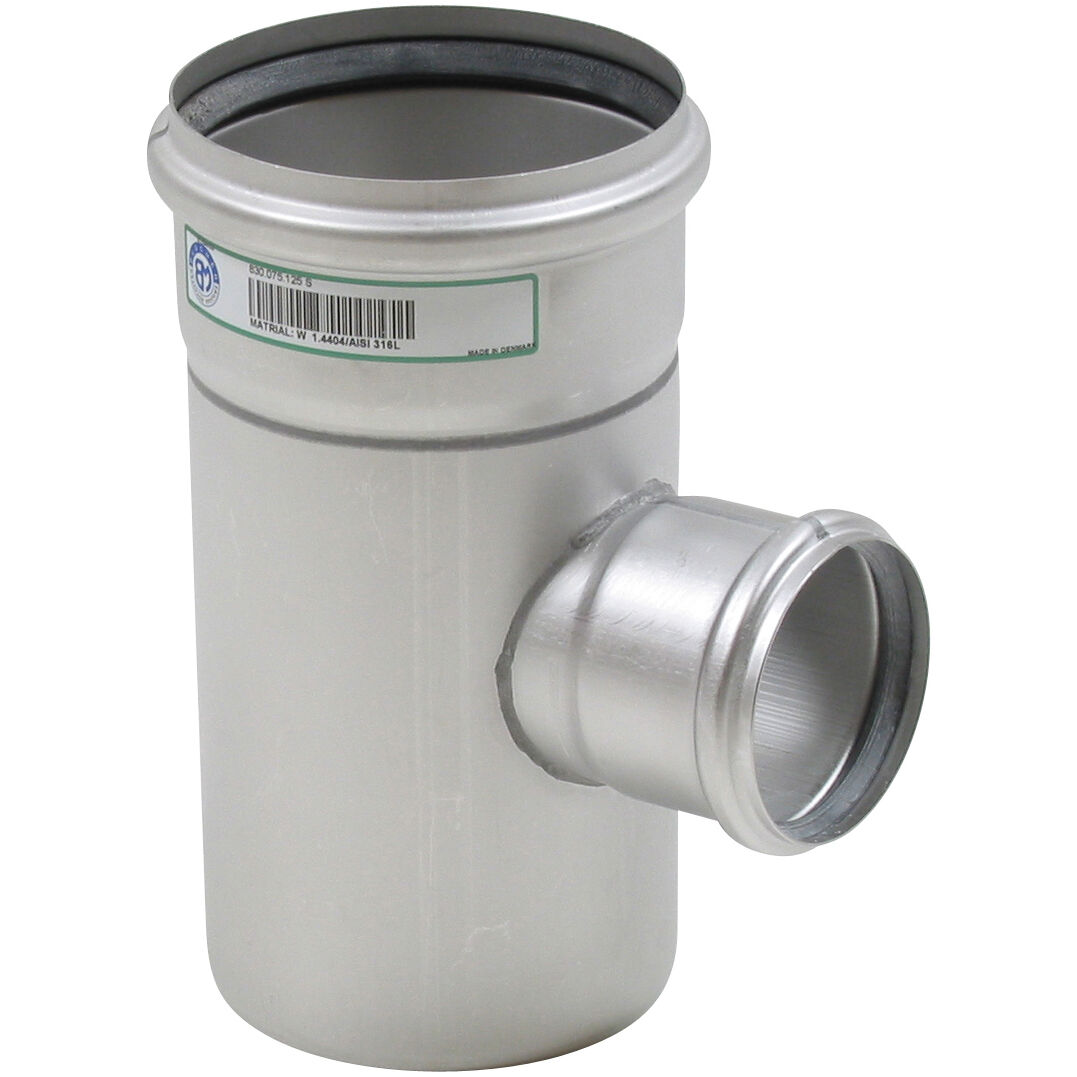

BRANCH 87.5°

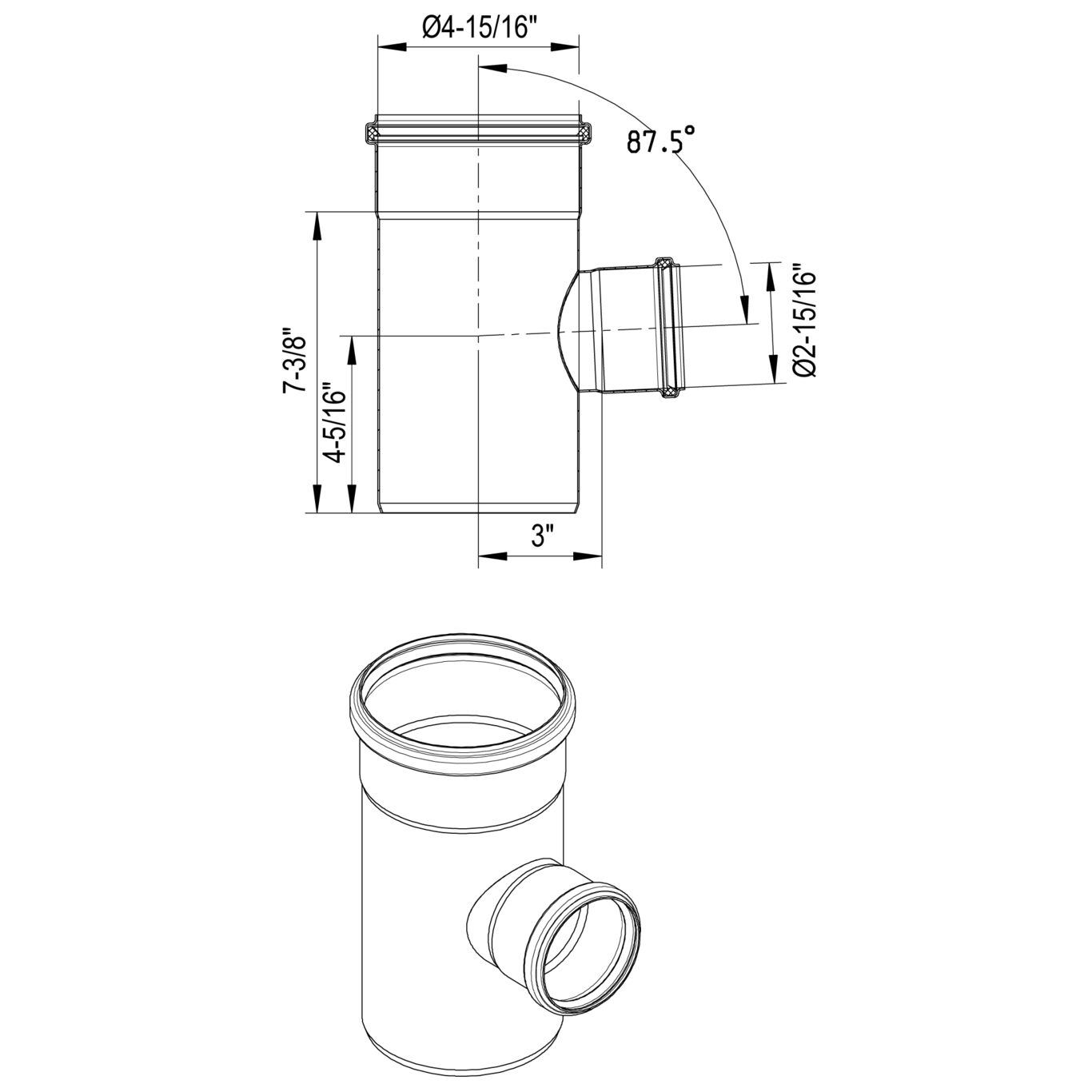

-Pipe diameter: Ø125mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 187 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 125 |
| Outlet Diameter (Inch) | 5 |
| Weight (kg) | 0.94 |
| Weight (lbs) | 2.07 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432 UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA
