DOUBLE BRANCH 45° - (836.050.050 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.050.050 S
EAN no.: 5705499402117
VVS no.: 160235350
RSK no.: 1549392
NRF no.: 2170503
LVI no.: 0253653

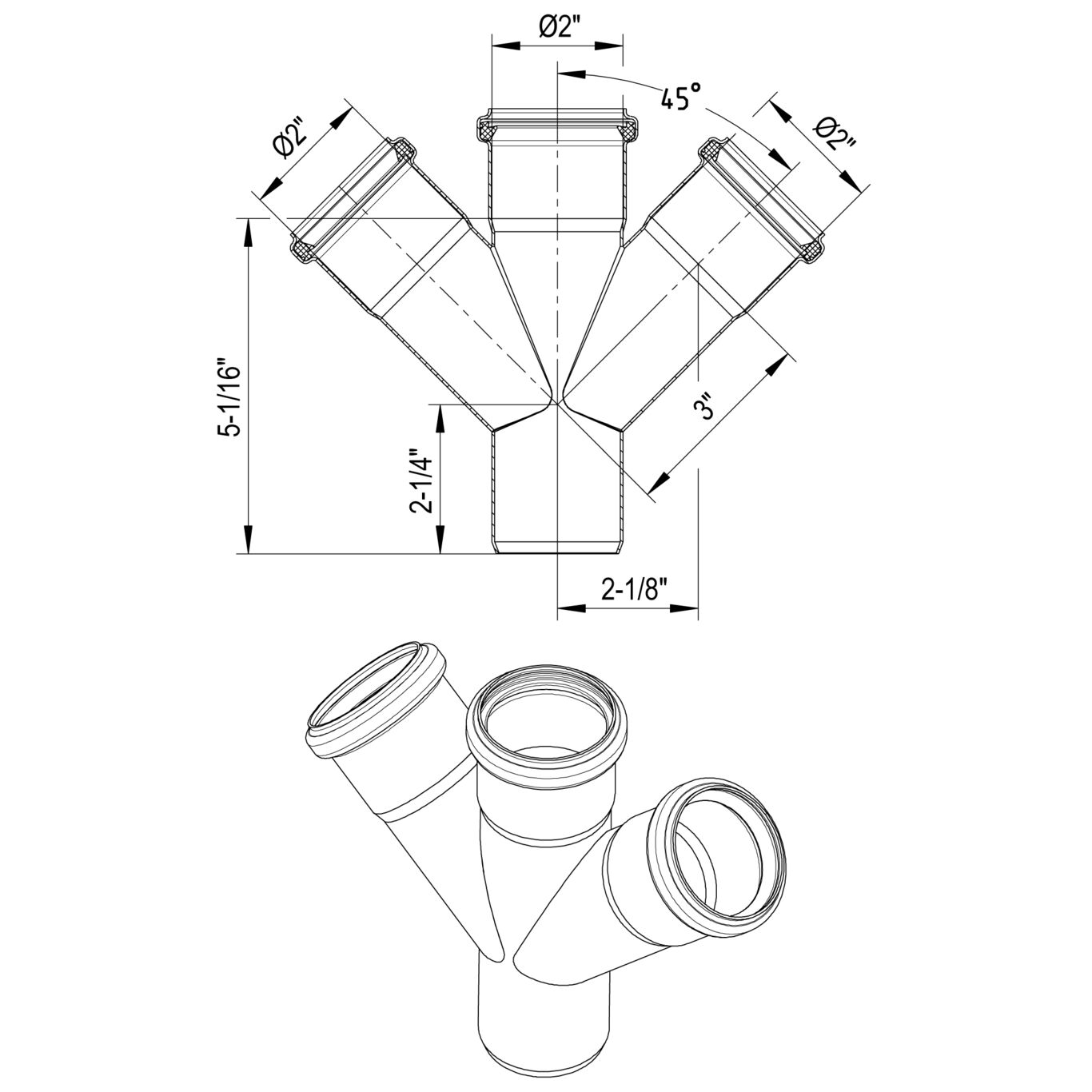

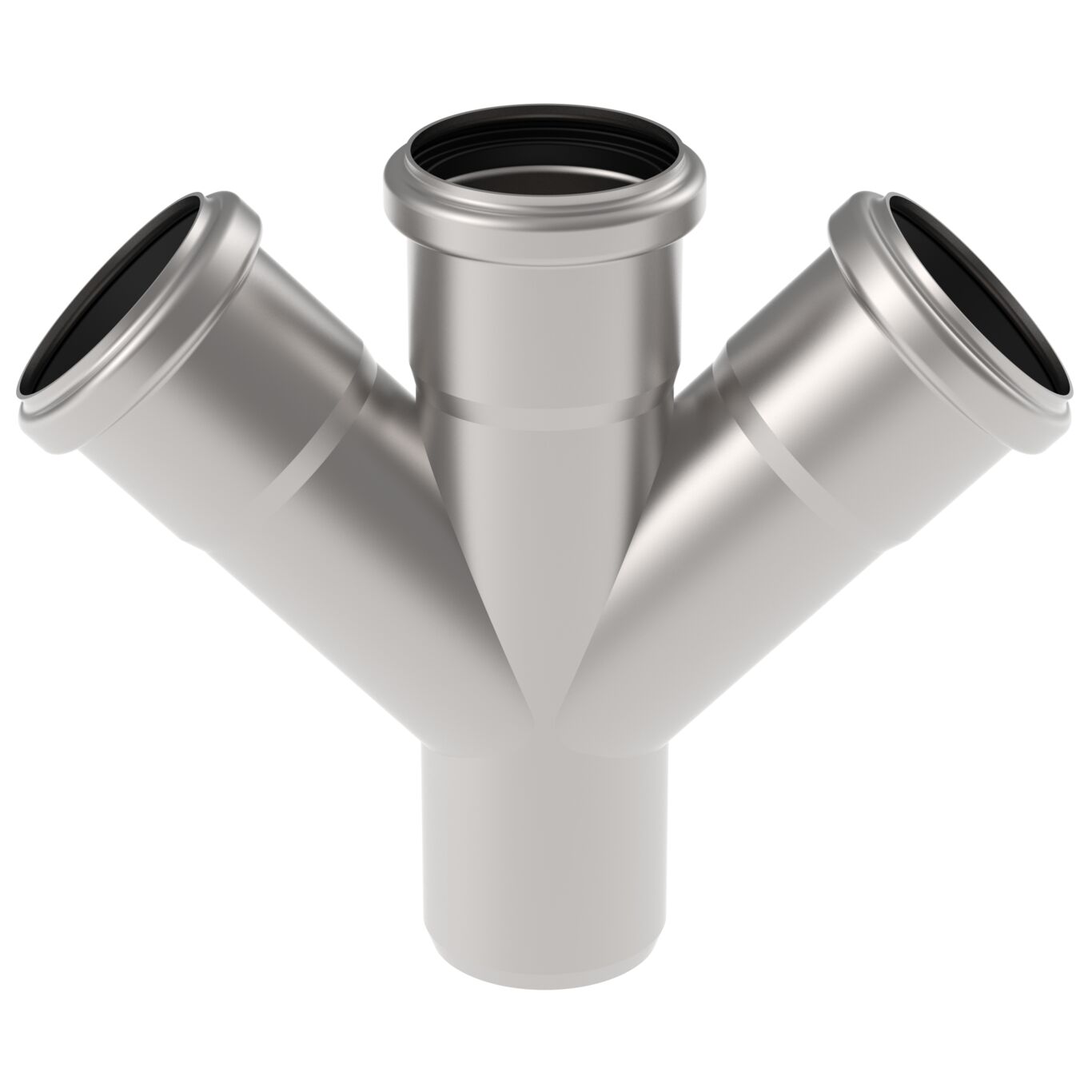

DOUBLE BRANCH 45°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 128 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.59 |
| Weight (lbs) | 1.3 |
-
Approval Information
For approval information, please refer to the below approval certificates.
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
