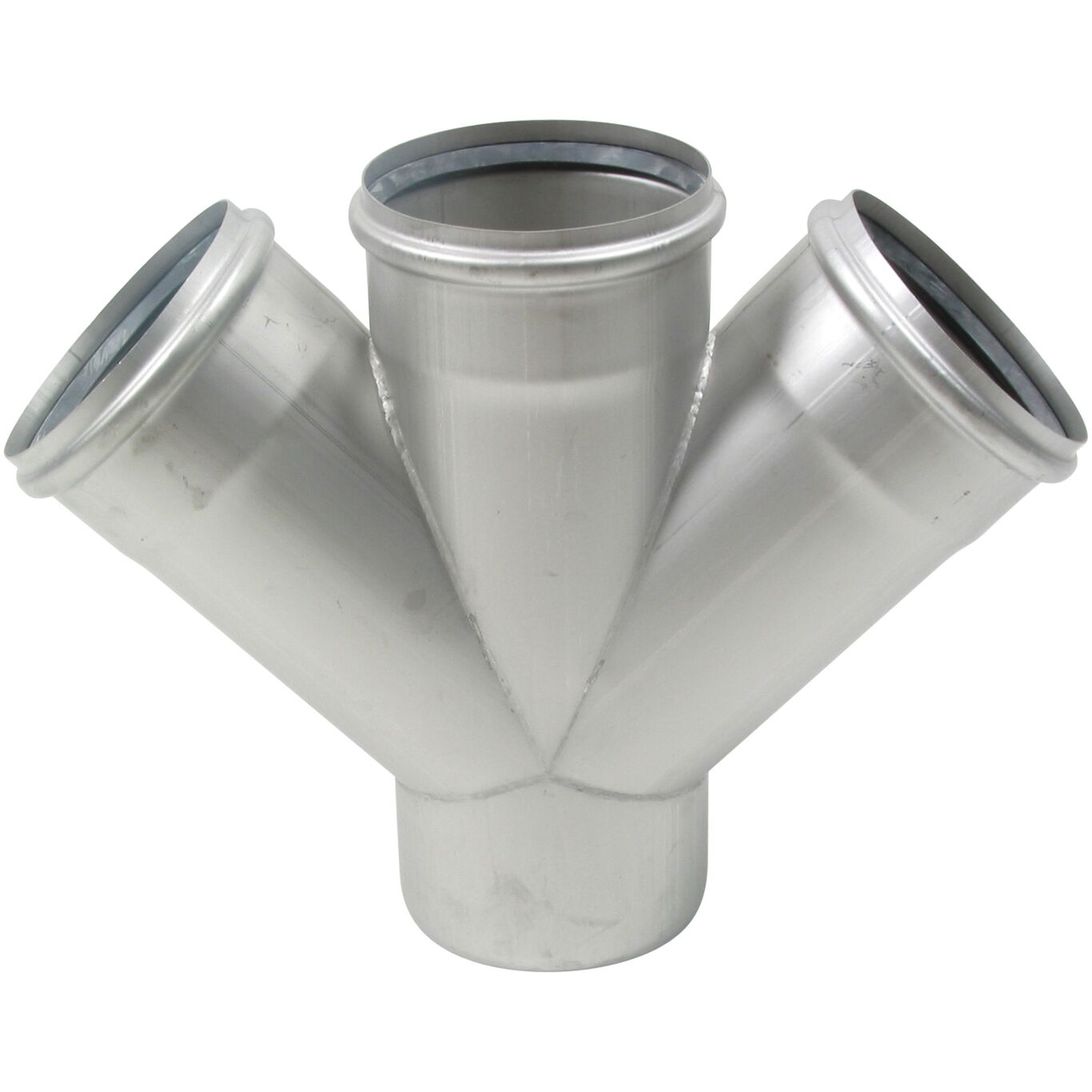

DOUBLE BRANCH 45° - (836.160.160 S)
×
![]()
Part Of the Series: Double branch-45-180
Type no.: 836.160.160 S
EAN no.: 5705499402230
VVS no.: 160235460
RSK no.: 1549399
NRF no.: 2172615
LVI no.: 0253666
DOUBLE BRANCH 45°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 331 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 5.28 |
| Weight (lbs) | 11.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
