DOUBLE BRANCH 45° - (837.075.075 S)
×
![]()
Part Of the Series: Double branch-45-90
Type no.: 837.075.075 S
EAN no.: 5705499402292
VVS no.: 160236375
RSK no.: 1549410
NRF no.: 2172622
LVI no.: 0254456

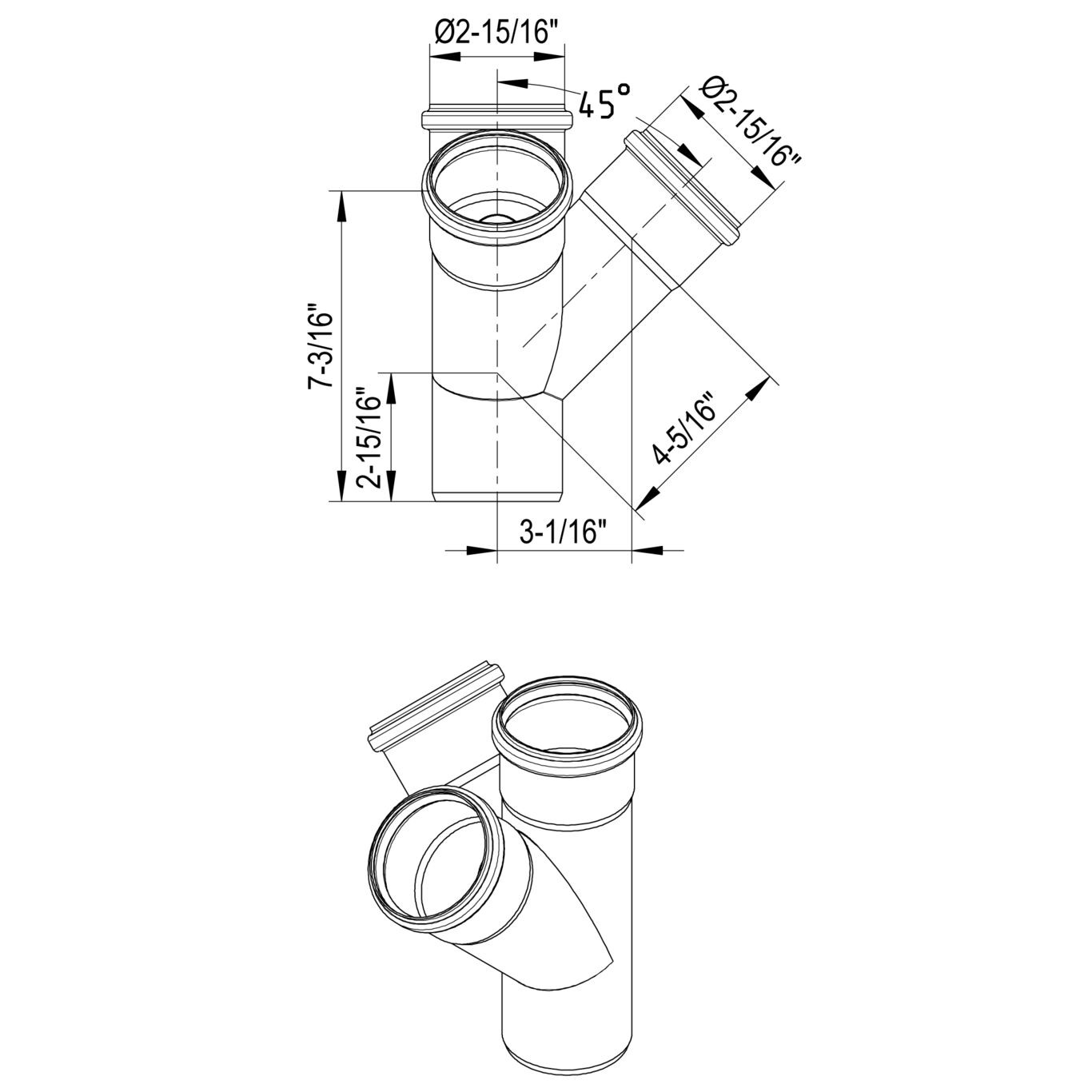

DOUBLE BRANCH 45°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 183 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 1.43 |
| Weight (lbs) | 3.15 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a Lloyds Register LR22419510TA Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001
