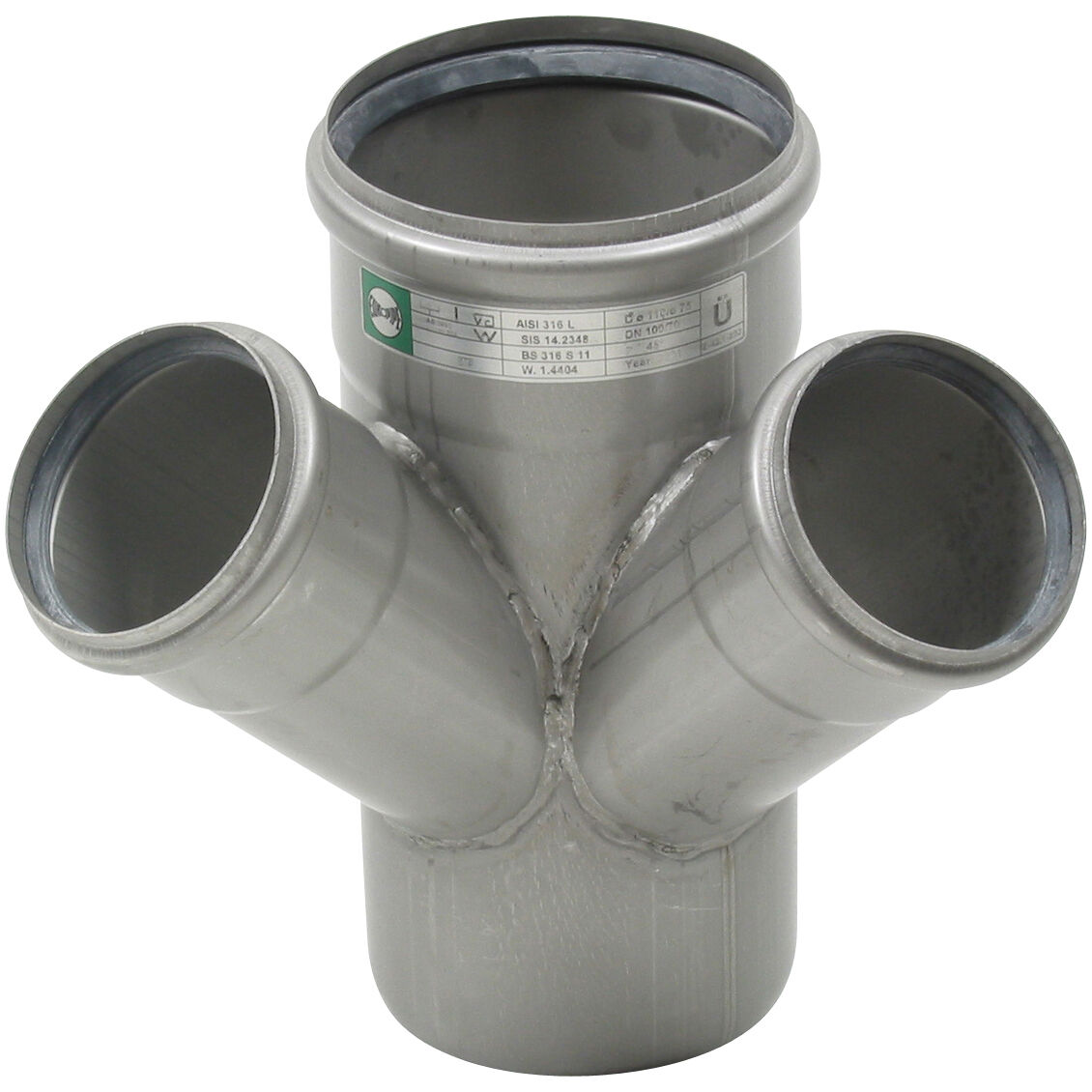

DOUBLE BRANCH 45° - (837.075.110 S)
×
![]()
Part Of the Series: Double branch-45-90
Type no.: 837.075.110 S
EAN no.: 5705499402308
VVS no.: 160236408
RSK no.: 1550379
NRF no.: 2172623
LVI no.: 0254460
DOUBLE BRANCH 45°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 182 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1.31 |
| Weight (lbs) | 2.89 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Europe
AUS - WMKT00204 - 24 Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM
