DOUBLE BRANCH 45° - (837.110.160 S)
×
![]()
Part Of the Series: Double branch-45-90
Type no.: 837.110.160 S
EAN no.: 5705499402339
VVS no.: 160236457
RSK no.: 1549414
NRF no.: 2172625
LVI no.: 0254470
DOUBLE BRANCH 45°

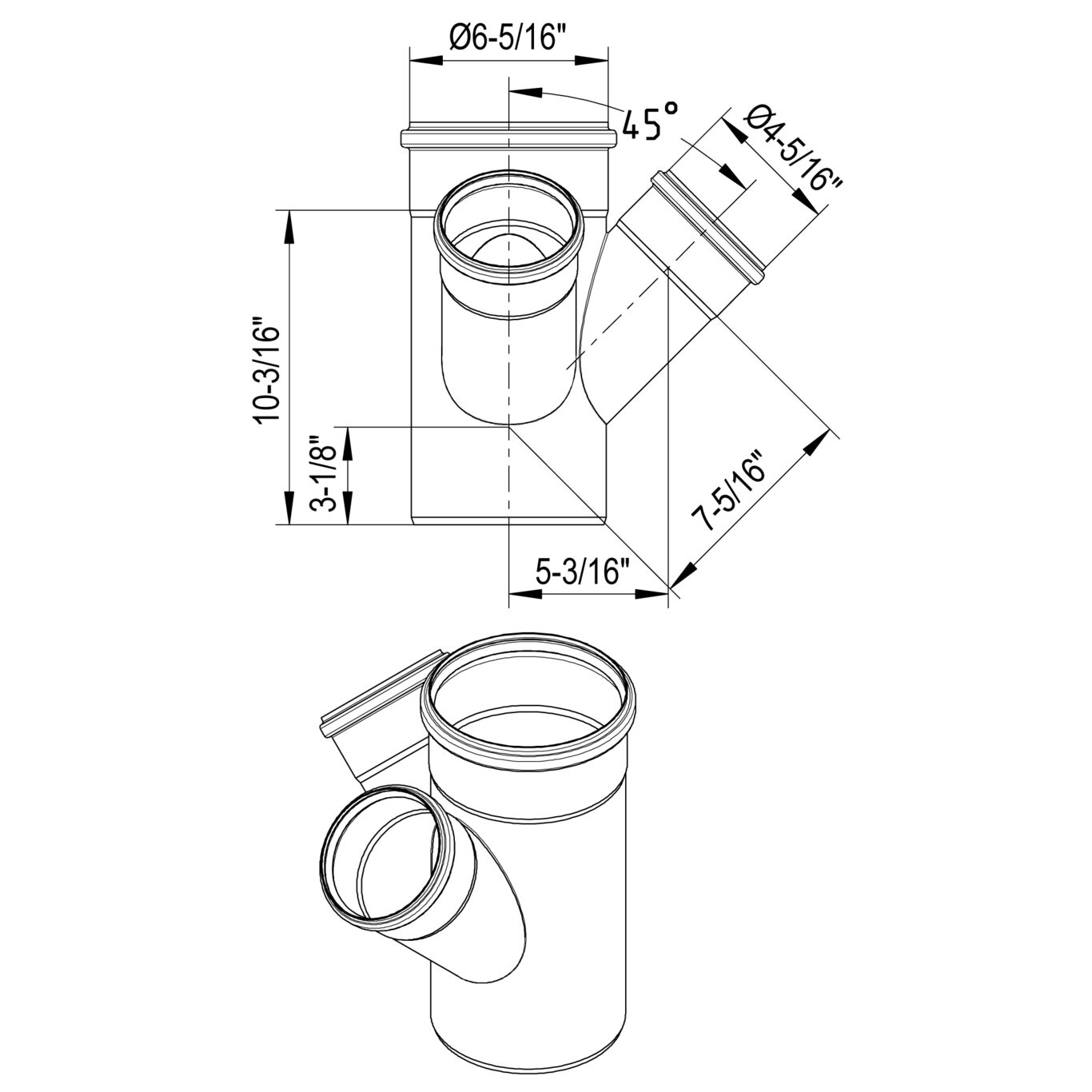

-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 45 |
| Length (mm) | 258 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 2.07 |
| Weight (lbs) | 4.56 |
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - 0692-22 EuroPipe
DK - VA 2.12/19350
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings ABS - LD1716353-PDA PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001
