DOUBLE BRANCH 87.5° - (832.050.050 S)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.050.050 S
EAN no.: 5705499401950
RSK no.: 1549416
NRF no.: 2172592
LVI no.: 0254952

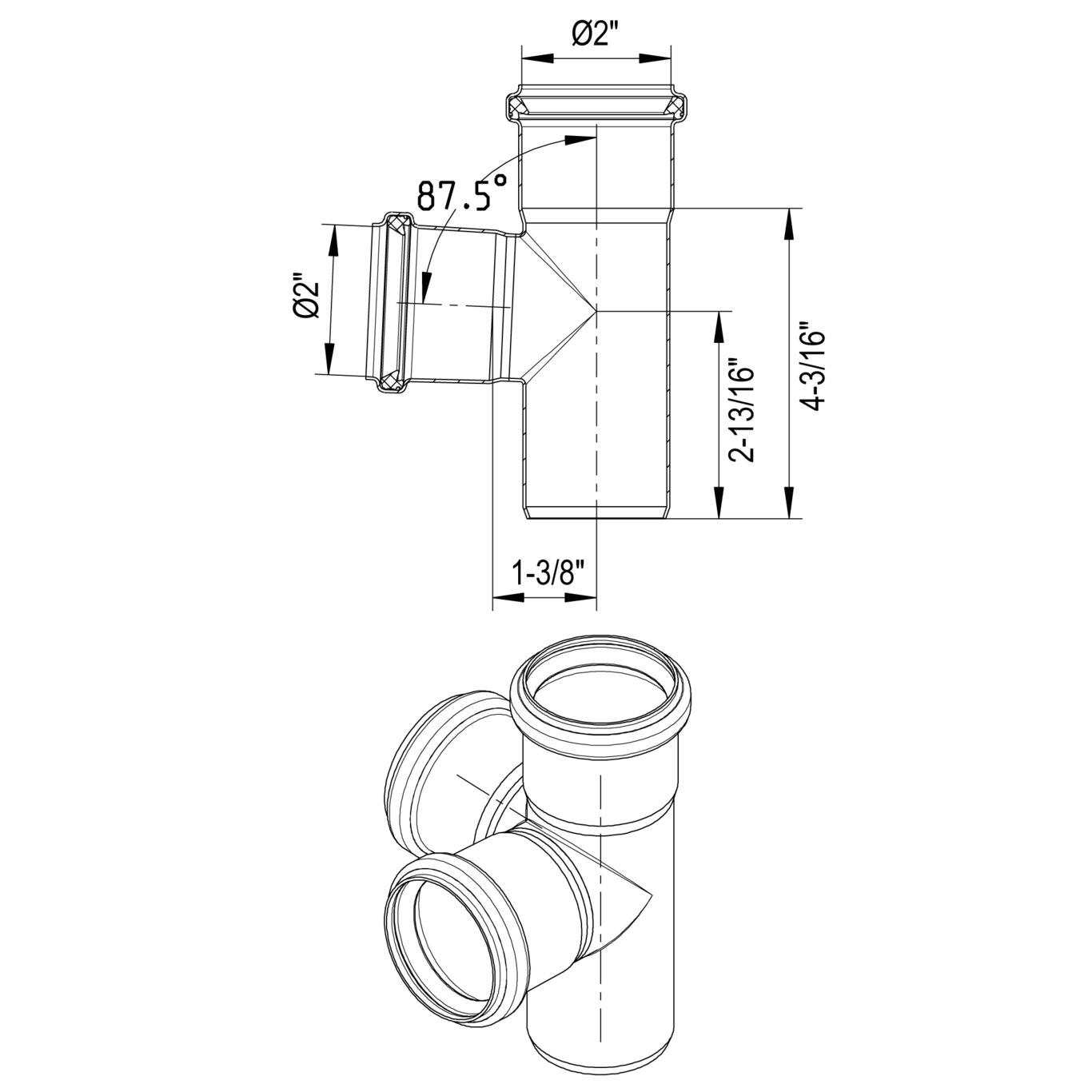

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 106 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.36 |
| Weight (lbs) | 0.79 |
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
NO - 0692-22 EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains ABS - LD1716353-PDA Bureau Veritas, 02375-I0 Pipes & Fittings
