DOUBLE BRANCH 87.5° - (832.050.110 S)
×
![]()
Part Of the Series: Double branch-87.5-90
Type no.: 832.050.110 S
EAN no.: 5705499401998
RSK no.: 1549419
NRF no.: 2172595
LVI no.: 0254957

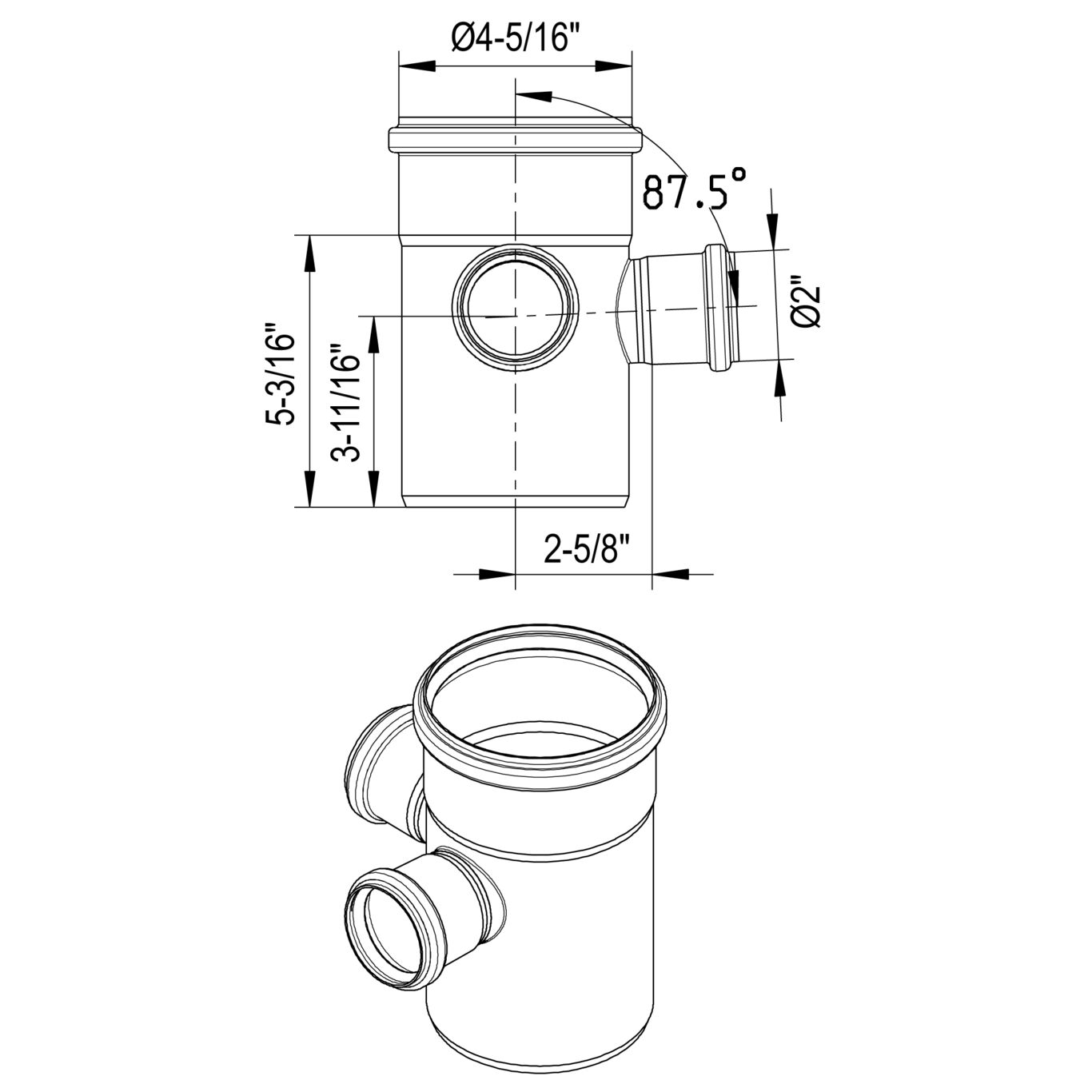

DOUBLE BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.72 |
| Weight (lbs) | 1.59 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24 DNV - TAP0000023-rev5, Sanitary discharge pipes KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings UR - 1055745 Product approval, EuroPipe and Drains Lloyds Register LR22419510TA ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products
