DOUBLE BRANCH 89° - (832.050.110 AS)
×
![]()
Part Of the Series: Double branch-89-90
Type no.: 832.050.110 AS
EAN no.: 5705499409130
NRF no.: 2172594

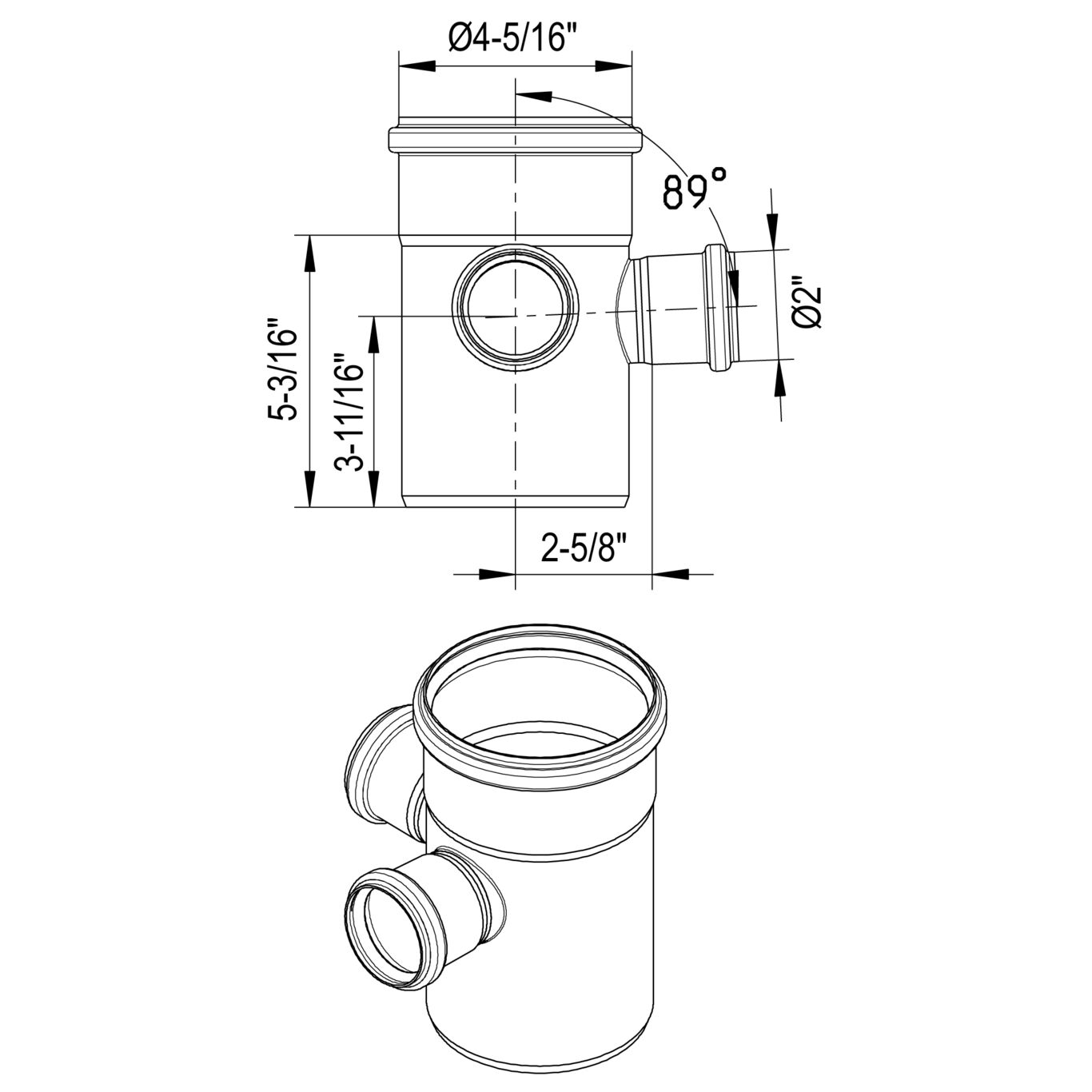

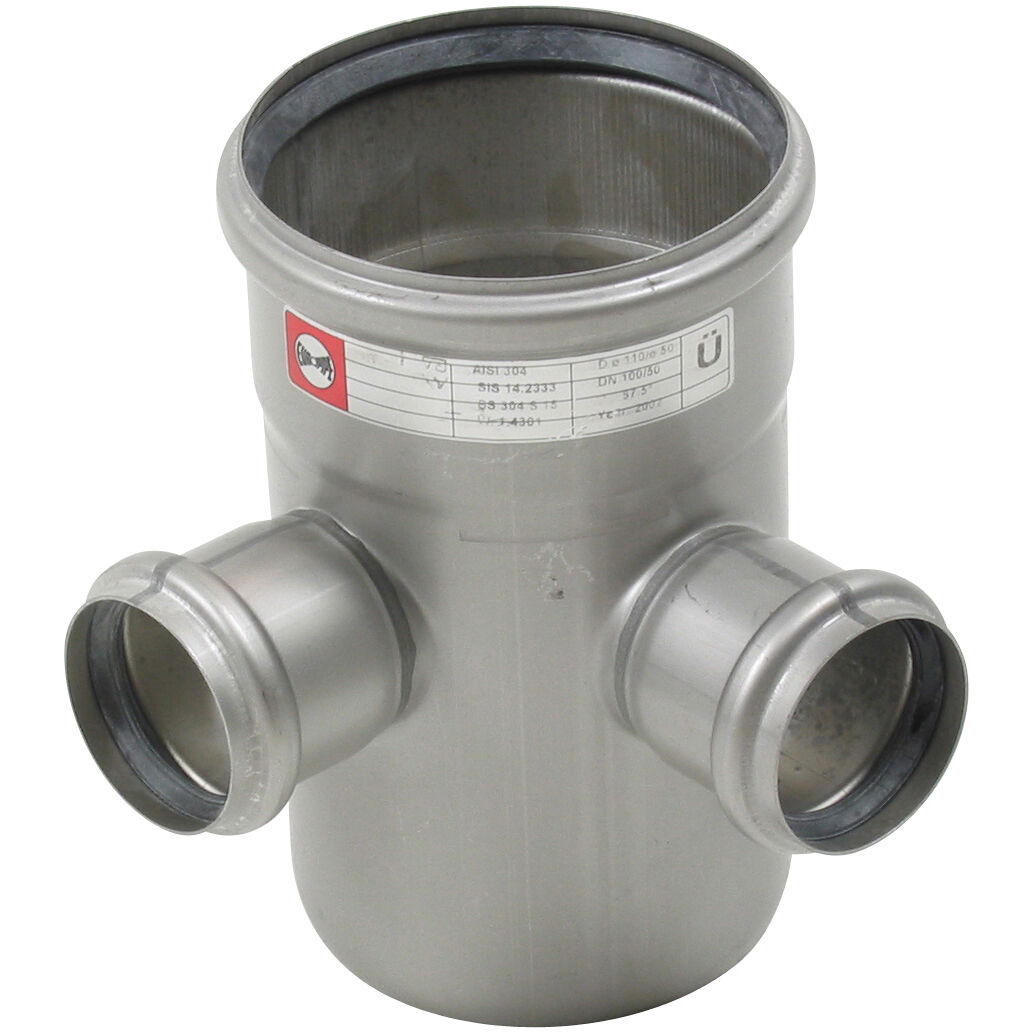

DOUBLE BRANCH 89°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 0.72 |
| Weight (lbs) | 1.59 |
-
Approval Information
For approval information, please refer to the below approval certificates.
