SWEPT BRANCH 89° - (839.050.050 AS)

Product Image - Branch-45

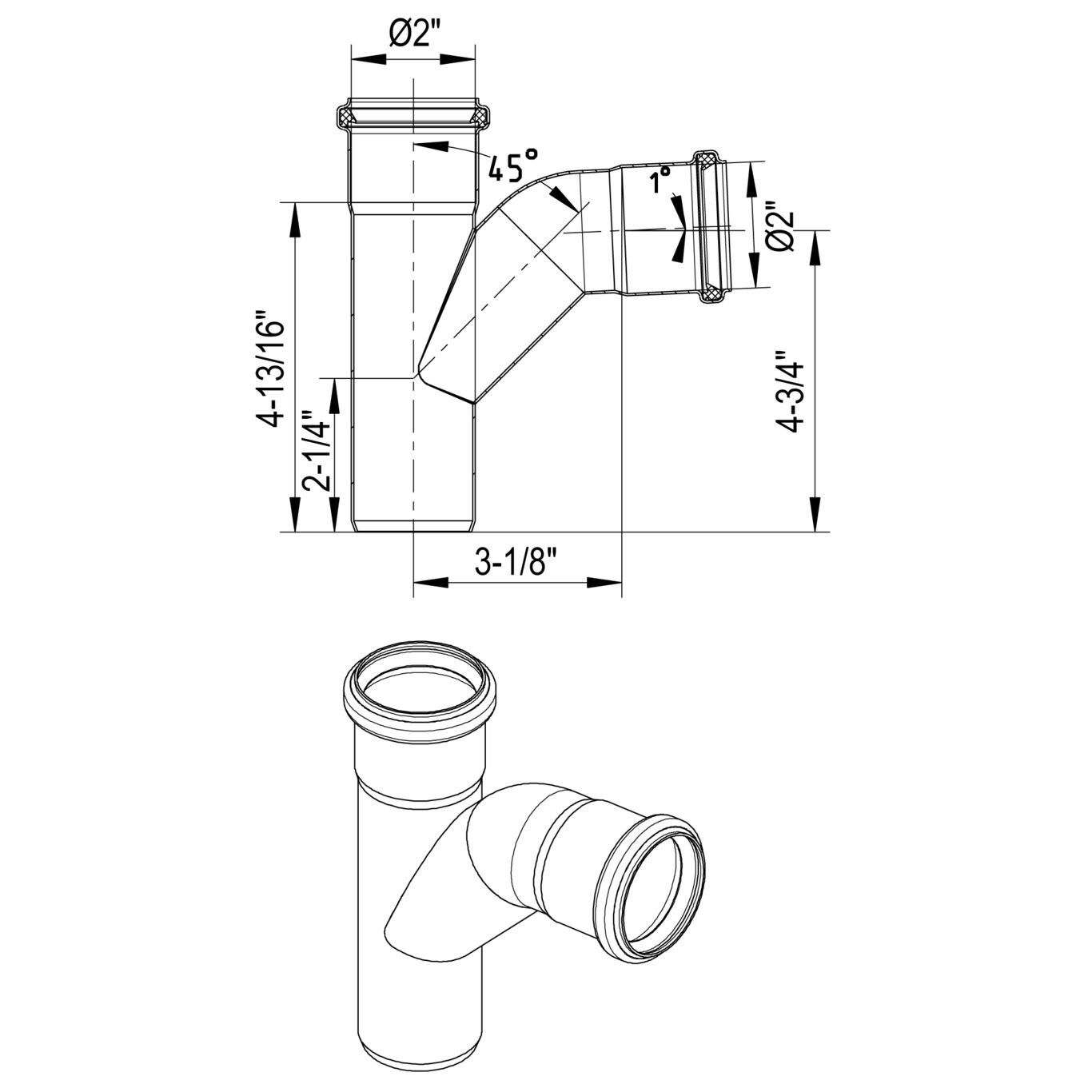

839_050_050AS_DIM_enus

Part Of the Series: Swept branch-89-long bend

Type no.: 839.050.050 AS

EAN no.: 5705499409376

NRF no.: 2172635

Download CAD Collections

Download MasterSpec Documents

SWEPT BRANCH 89°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°)	89
Length (mm)	133
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet dia. (mm)	50
Outlet Diameter (Inch)	2
Weight (kg)	0.44
Weight (lbs)	0.97

Approval Information

For approval information, please refer to the below approval certificates.

NO - 0692-22 EuroPipe US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia HACCP Food Safety Programme - Europe UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001 RU - 0212322 Pipes-21 Achilles Certificate - 46702-22
