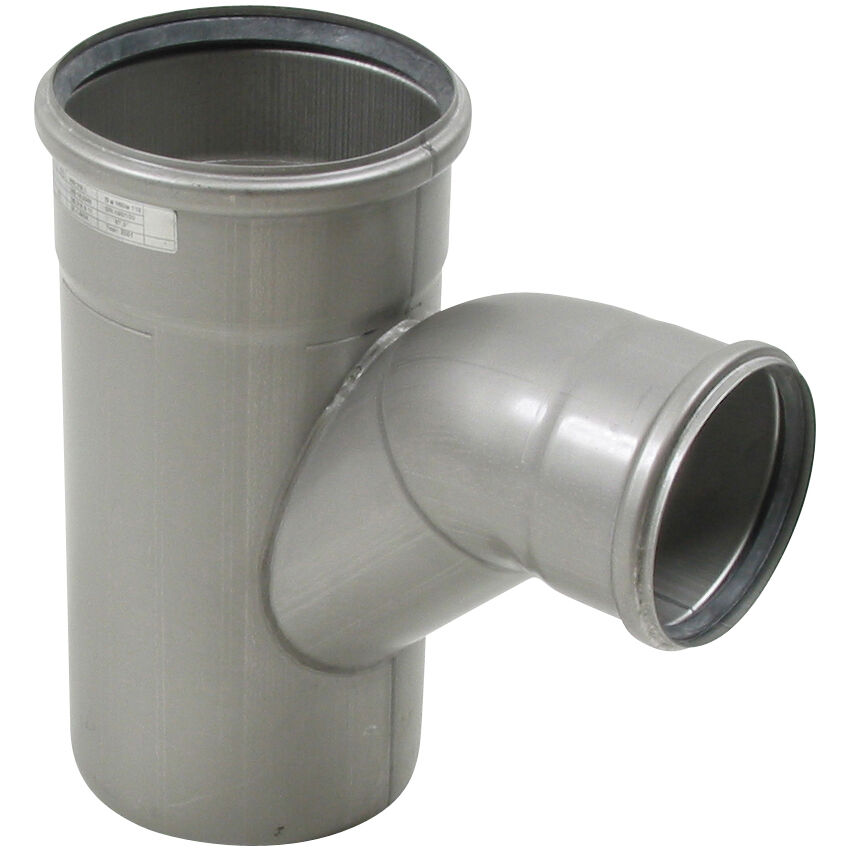

SWEPT BRANCH 89° - (839.110.160 AS)
×
![]()
Part Of the Series: Swept branch-89-long bend
Type no.: 839.110.160 AS
EAN no.: 5705499409437
NRF no.: 2172642
SWEPT BRANCH 89°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 258 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 2.53 |
| Weight (lbs) | 5.58 |
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
