REDUCER ECCENTRIC - (850.160.110 S)
×
![]()
Part Of the Series: Reducer-eccentric
Type no.: 850.160.110 S
EAN no.: 5705499408485
RSK no.: 1550393
NRF no.: 2172702
LVI no.: 0252361

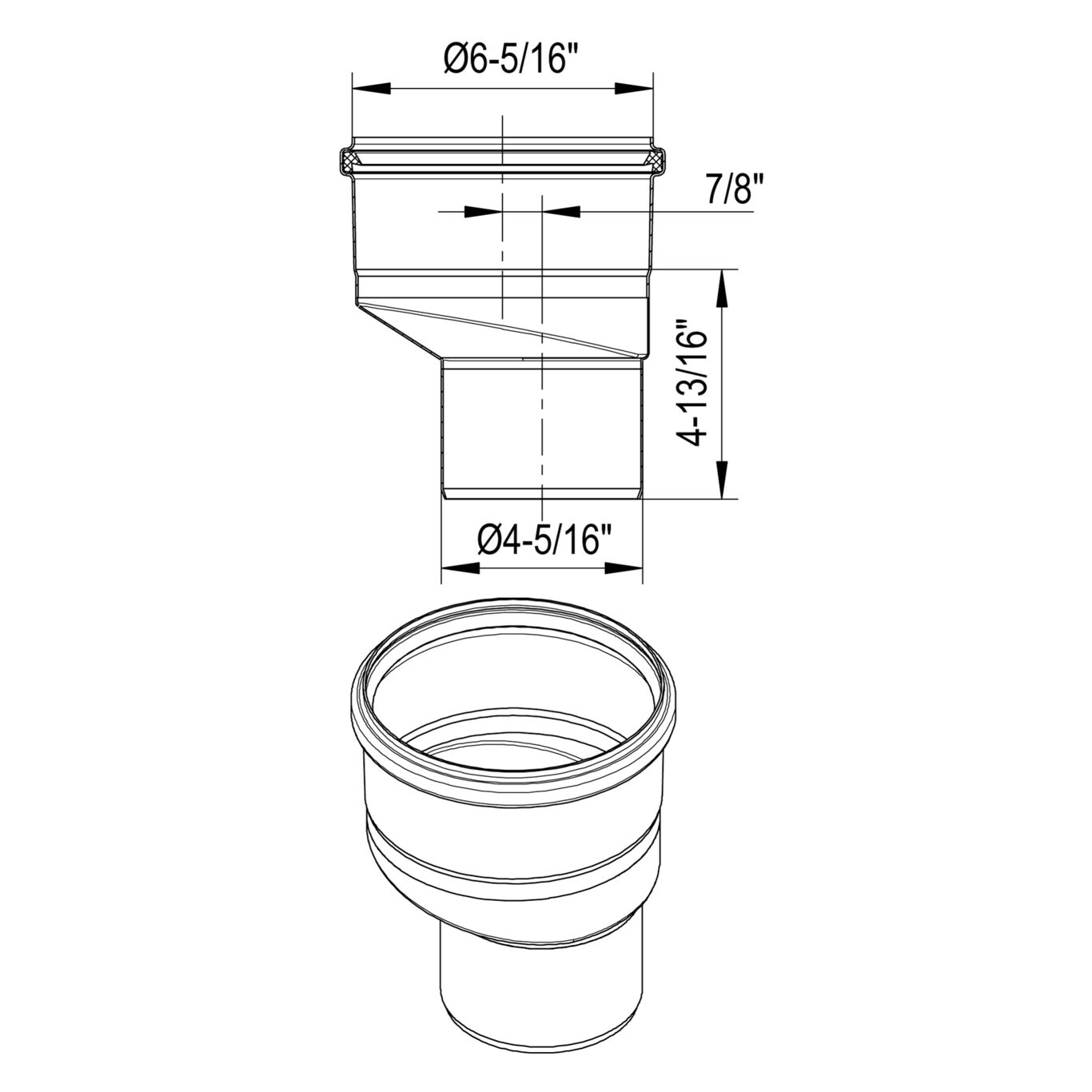

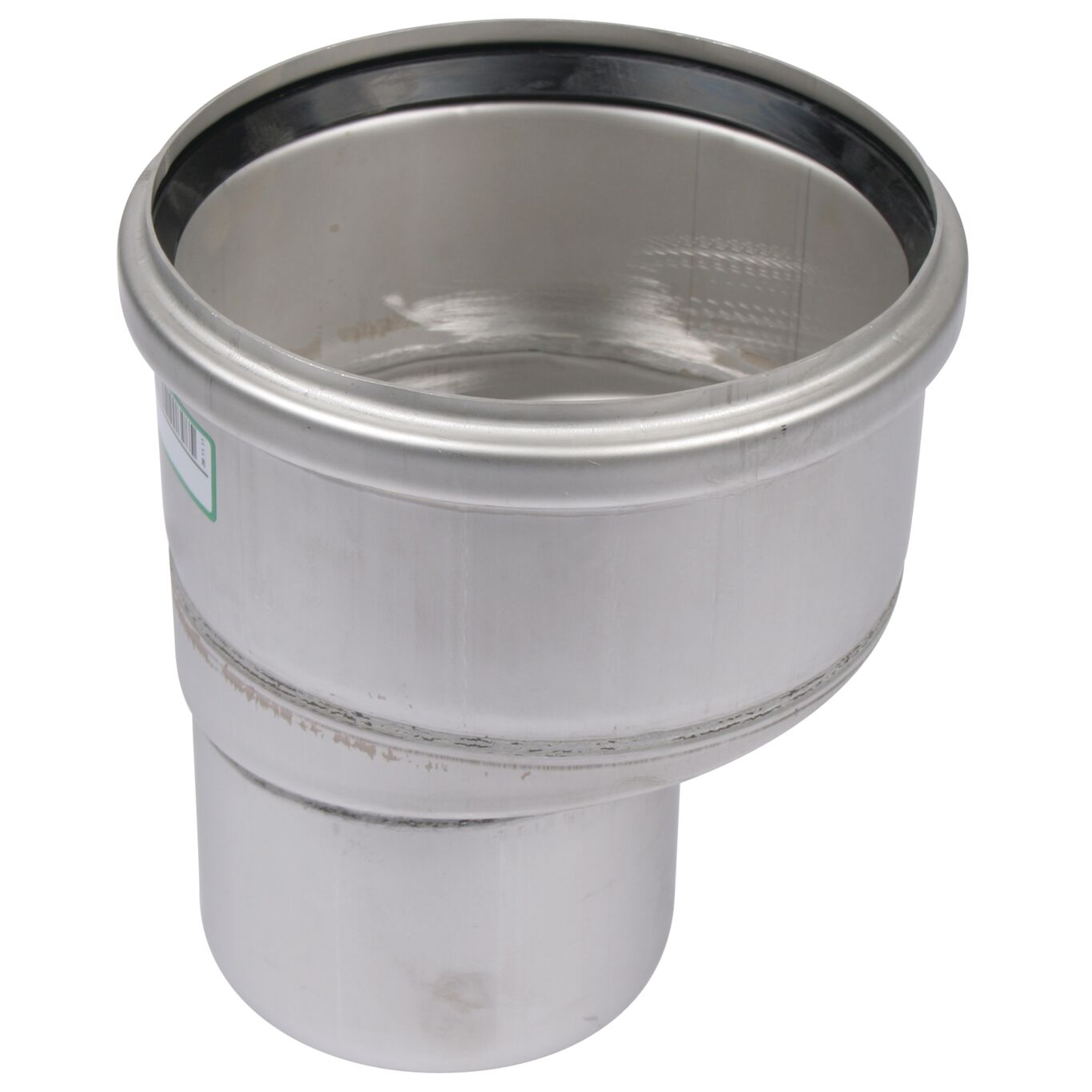

REDUCER ECCENTRIC
-Diameter: Ø160mm to Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 123 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 1.08 |
| Weight (lbs) | 2.38 |
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19350
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe ABS - LD1716353-PDA Lloyds Register LR22419510TA UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe DNV - TAP0000023-rev5, Sanitary discharge pipes
