STRAIGHT PIPE WITH ONE SOCKET - (811.015.050)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.015.050
EAN no.: 5705499400205
VVS no.: 160122015
RSK no.: 1550031
NRF no.: 2170001
LVI no.: 0240081

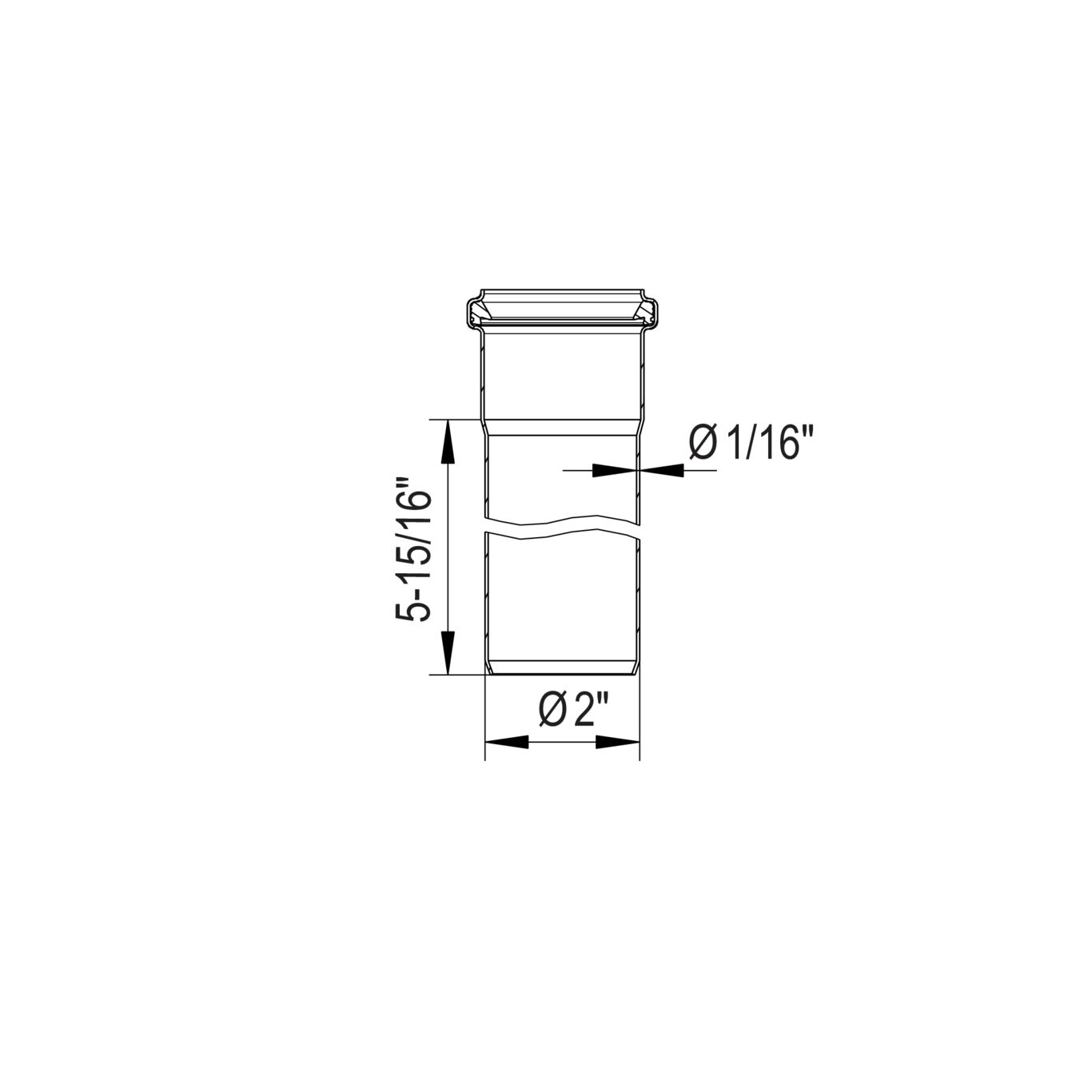

STRAIGHT PIPE WITH ONE SOCKET
-Length: 150mm
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 0' 6" |
| Length of straight pipe (mm) | 150 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 0.25 |
| Weight (lbs) | 0.55 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
AUS - WMKT00204 - 24
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
FR - DTA 14.1/12-1811_V3 EuroPipe
DE - LGA Certificate 57214035 a
NO - 0692-22 EuroPipe RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains
