STRAIGHT PIPE WITH ONE SOCKET - (811.025.075)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.075
EAN no.: 5705499400304
VVS no.: 160124025
RSK no.: 1550039
NRF no.: 2170013
LVI no.: 0240132

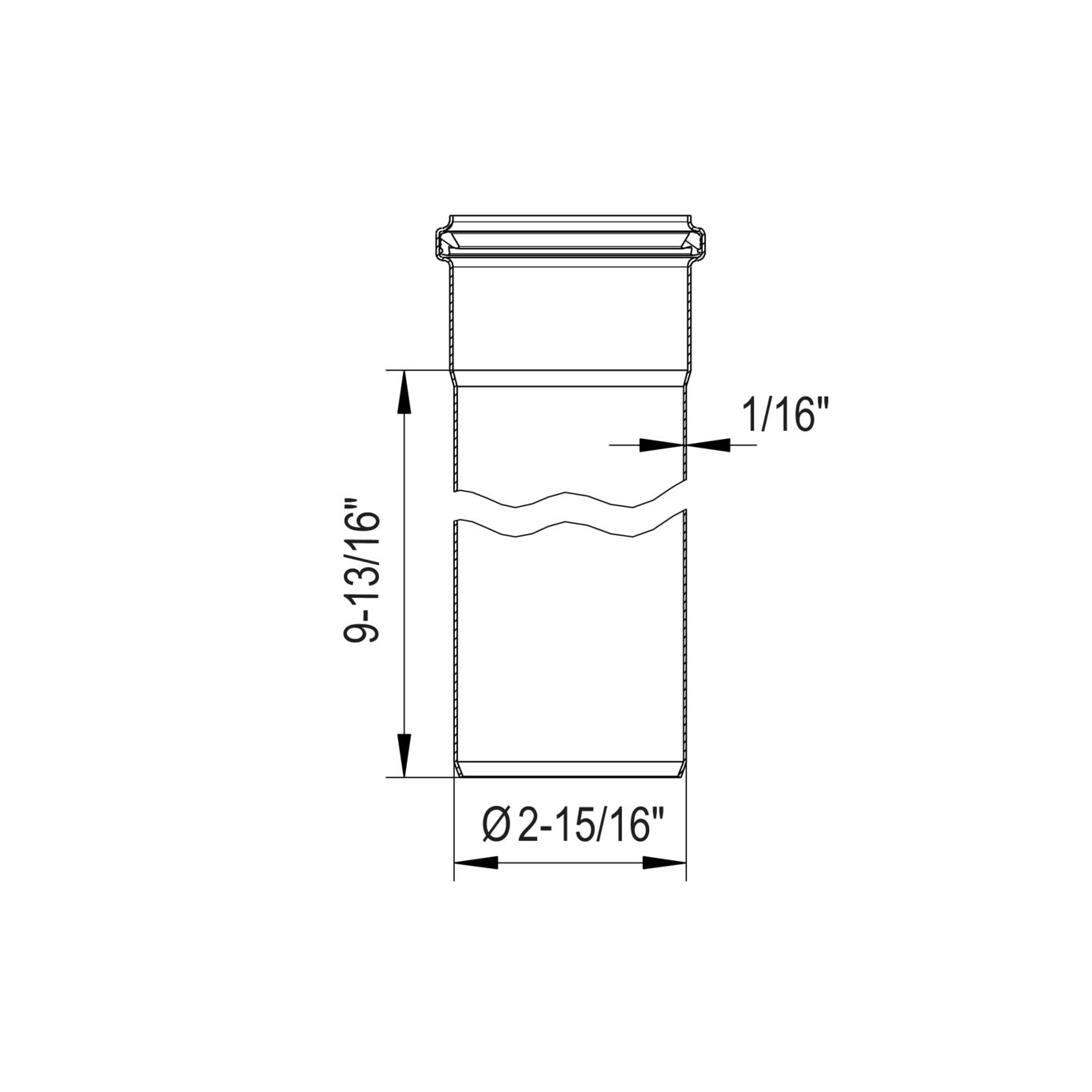

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø75mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 0' 10" |
| Length of straight pipe (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Weight (kg) | 0.58 |
| Weight (lbs) | 1.28 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 ABS - LD1716353-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products
