STRAIGHT PIPE WITH ONE SOCKET - (811.100.050 S)

Part Of the Series: Straight pipe

Type no.: 811.100.050 S

EAN no.: 5705499400533

VVS no.: 160122400

RSK no.: 1550235

NRF no.: 2170687

LVI no.: 0250085

Download CAD Collections

2d DWG files

3d STP files

Download MasterSpec Documents

MasterSpec

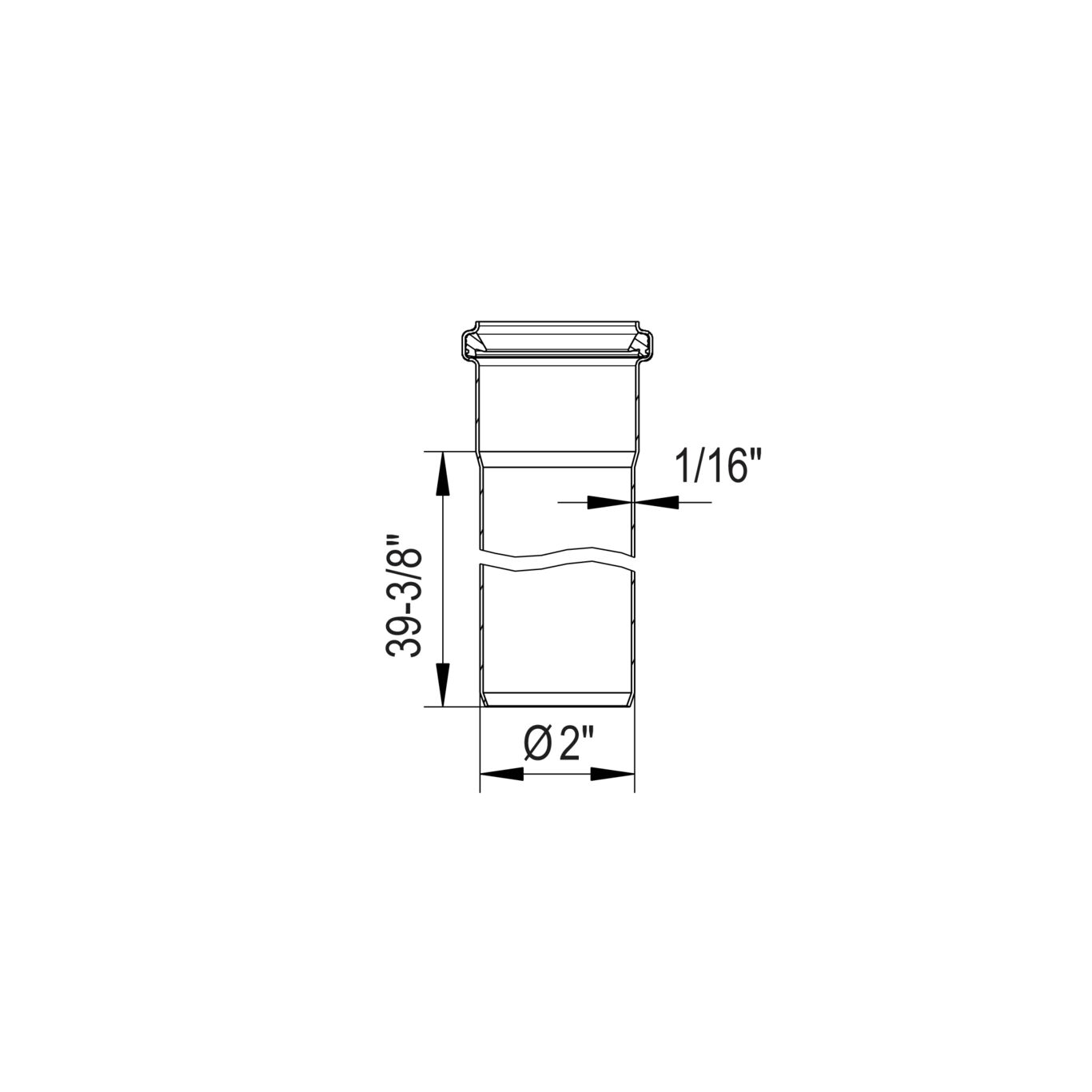

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Length of Straight Pipe (Inch)	3' 3"
Length of straight pipe (mm)	1000
Material	AISI 316L
Material (EN)	EN 1.4404
Outlet dia. (mm)	50
Outlet Diameter (Inch)	2
Weight (kg)	1.25
Weight (lbs)	2.76

Downloads
- Installation - BLÜCHER® EuroPipe

Approval Information

For approval information, please refer to the below approval certificates.

US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe NO - 0692-22 EuroPipe AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia Lloyds Register LR22419510TA Achilles Certificate - 46702-22 PL - Hygienic Certificate - All Products RINA -MAC285119XG EuroPipe UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM ABS - LD1716353-PDA DNV - TAP0000023-rev5, Sanitary discharge pipes
