STRAIGHT PIPE WITH ONE SOCKET - (811.100.160)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.100.160
EAN no.: 5705499400588
VVS no.: 160132100
RSK no.: 1550162
NRF no.: 2168913
LVI no.: 0240235

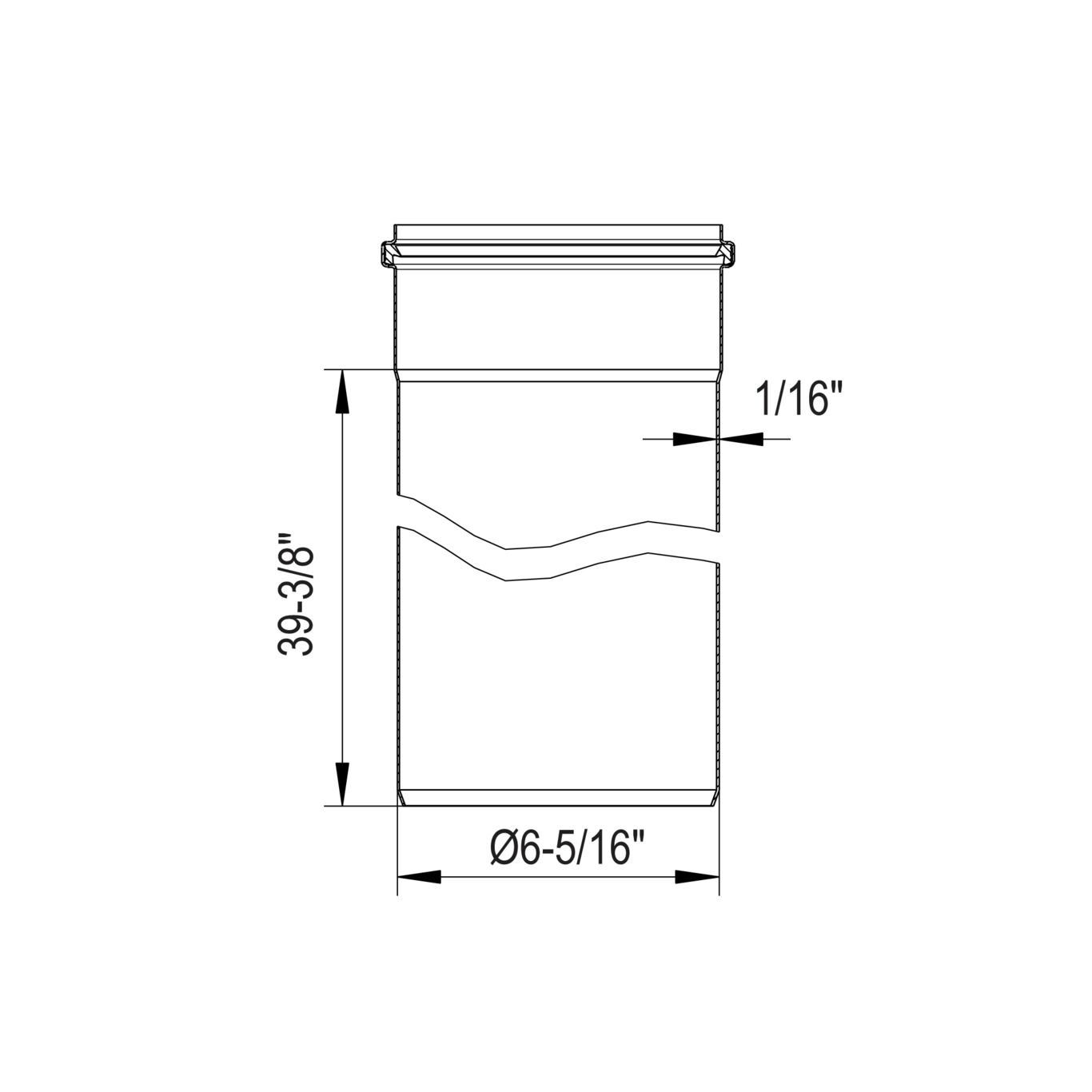

STRAIGHT PIPE WITH ONE SOCKET
-Length: 1000mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 3' 3" |
| Length of straight pipe (mm) | 1000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 5.48 |
| Weight (lbs) | 12.08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
AUS - WMKT00204 - 24
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
FR - DTA 14.1/12-1811_V3 EuroPipe
US - IAPMO File No.3247-EuroPipe UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings MARINE - R4547 NATO CODIFICATION SYSTEM
