STRAIGHT PIPE WITH ONE SOCKET - (811.200.050)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.200.050
EAN no.: 5705499400687
VVS no.: 160122200
RSK no.: 1550037
NRF no.: 2170004
LVI no.: 0240087

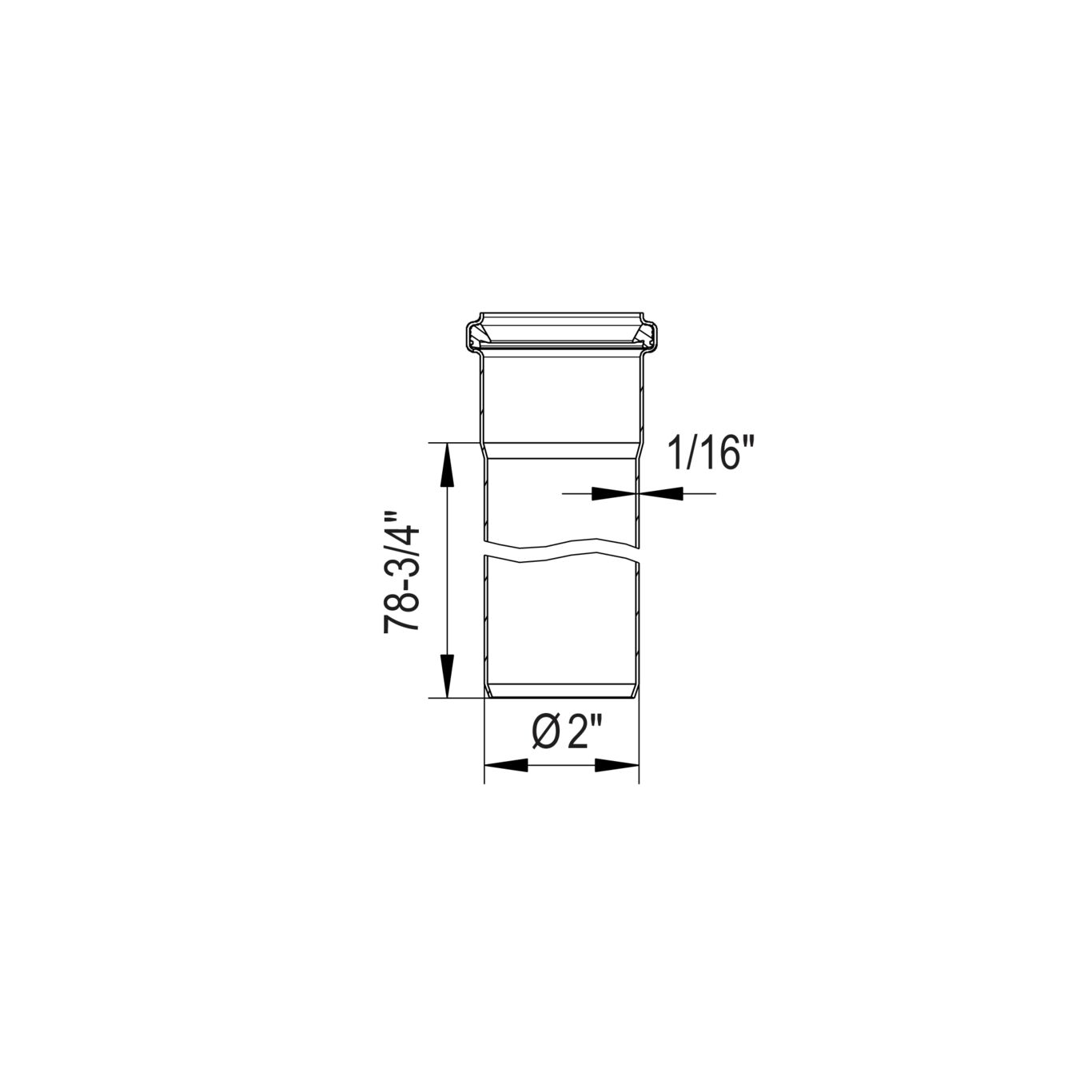

STRAIGHT PIPE WITH ONE SOCKET
-Length: 2000mm
-Diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 6' 7" |
| Length of straight pipe (mm) | 2000 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Weight (kg) | 2.45 |
| Weight (lbs) | 5.4 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe
DK - VA 2.12/19349 EuroPipe DS432
HACCP Food Safety Programme - Australasia
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24 ABS - LD1716353-PDA RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products
