STRAIGHT PIPE WITH ONE SOCKET - (811.200.160 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.200.160 S
EAN no.: 5705499400755
VVS no.: 160132500
RSK no.: 1550364
NRF no.: 2170698
LVI no.: 0250237

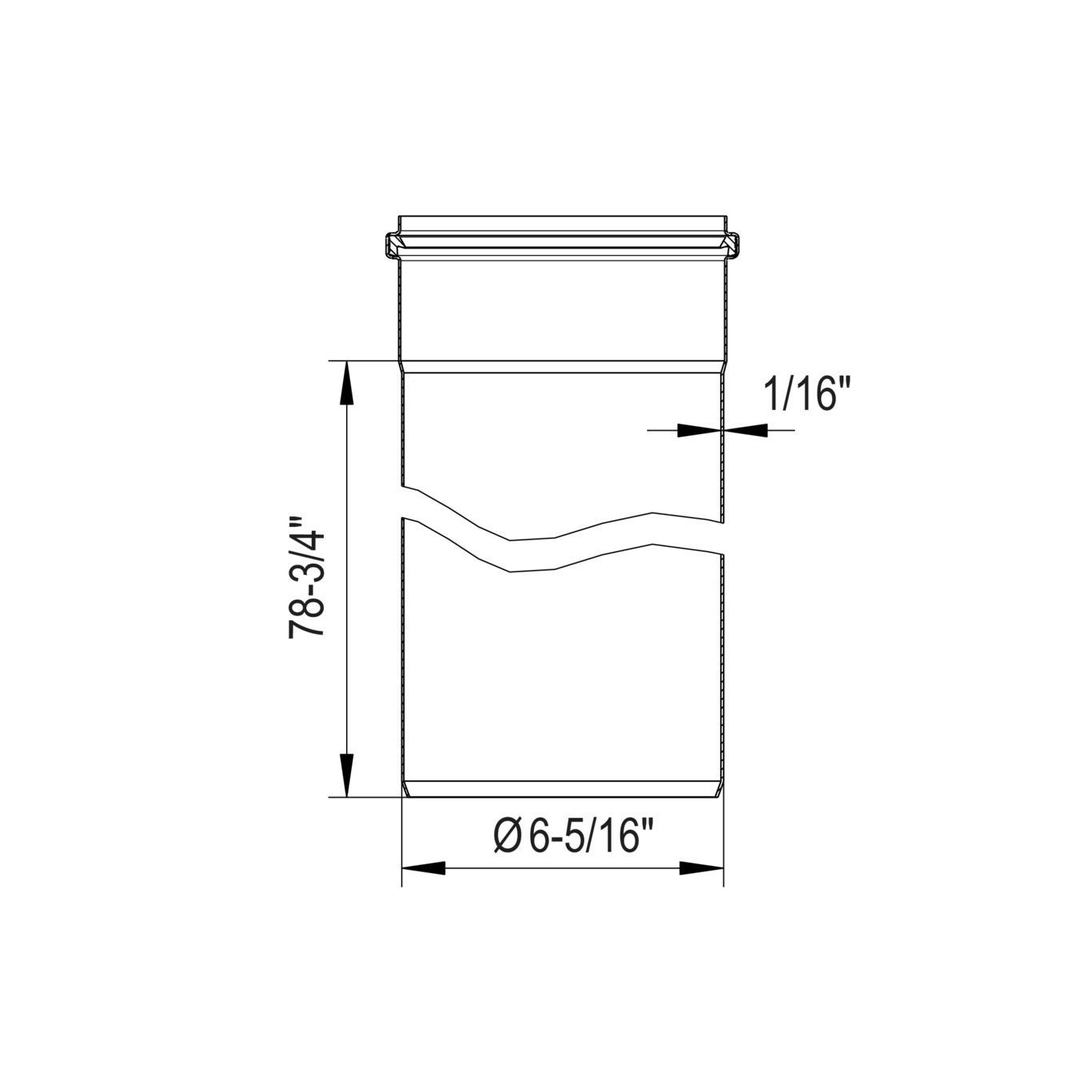

STRAIGHT PIPE WITH ONE SOCKET
-Length: 2000mm
-Diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 6' 7" |
| Length of straight pipe (mm) | 2000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Weight (kg) | 10.54 |
| Weight (lbs) | 23.24 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
FR - DTA 14.1/12-1811_V3 EuroPipe
DK - VA 2.12/19350
NO - 0692-22 EuroPipe
AUS - WMKT00204 - 24
DE - LGA Certificate 57214035 a
US - IAPMO File No.3247-EuroPipe Achilles Certificate - 46702-22 UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev5, Sanitary discharge pipes Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe PL - Hygienic Certificate - All Products ABS - LD1716353-PDA MARINE - R4547 NATO CODIFICATION SYSTEM Lloyds Register LR22419510TA
