STRAIGHT PIPE WITH ONE SOCKET - (811.300.110 S)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.300.110 S
EAN no.: 5705499400823
VVS no.: 160128530
RSK no.: 1550367
NRF no.: 2170708
LVI no.: 0250188

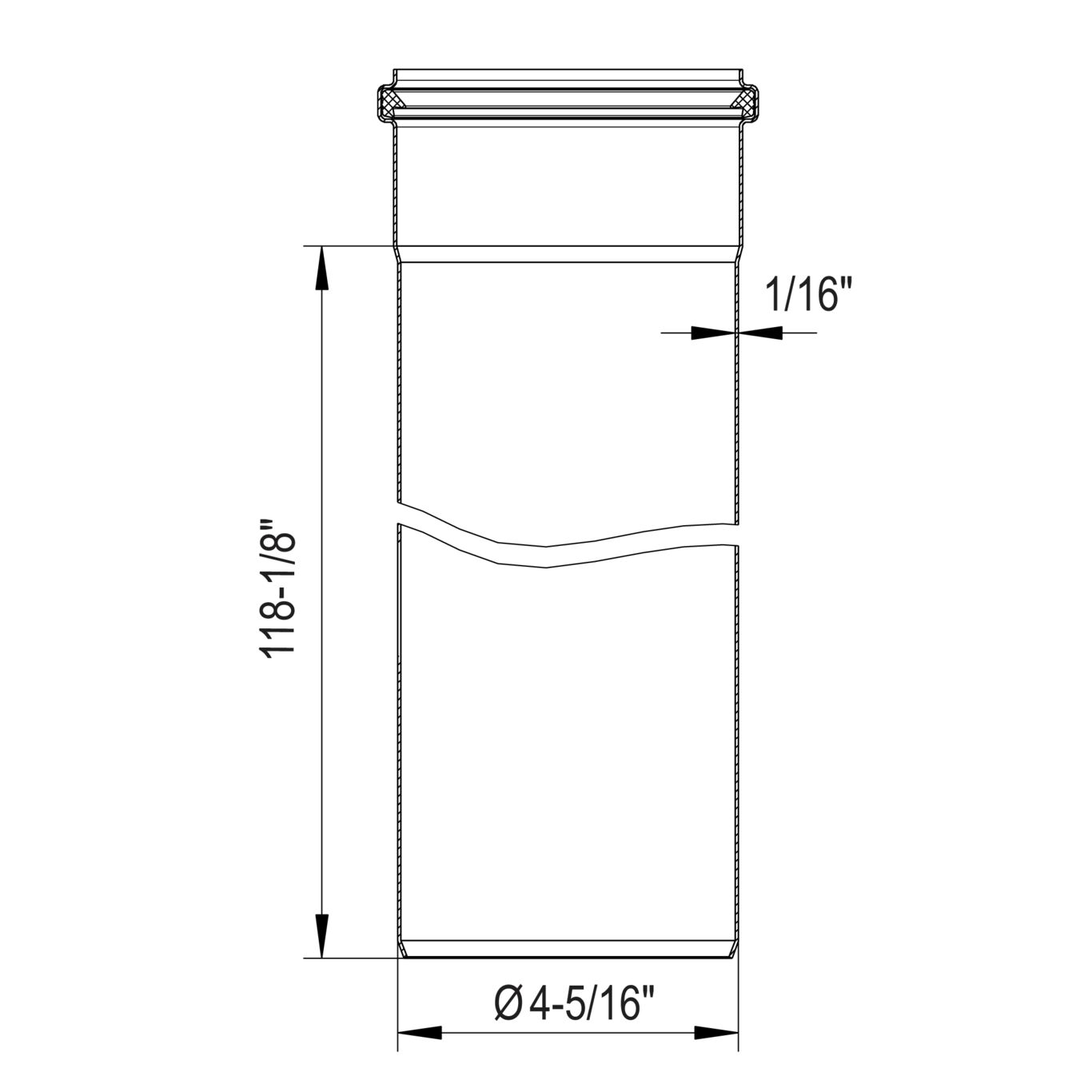

STRAIGHT PIPE WITH ONE SOCKET
-Length: 3000mm
-Diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length of Straight Pipe (Inch) | 9' 10" |
| Length of straight pipe (mm) | 3000 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Weight (kg) | 8.34 |
| Weight (lbs) | 18.39 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
DE - LGA Certificate 57214035 a
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
FR - DTA 14.1/12-1811_V3 EuroPipe
AUS - WMKT00204 - 24 ABS - LD1716353-PDA Lloyds Register LR22419510TA DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 MARINE - R4547 NATO CODIFICATION SYSTEM PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe Bureau Veritas, 02375-I0 Pipes & Fittings
